Laboratory Used Chemistry Analyzer Hematology Machine

  Laboratory used chemistry analyzer hematology machine

Technical parameter

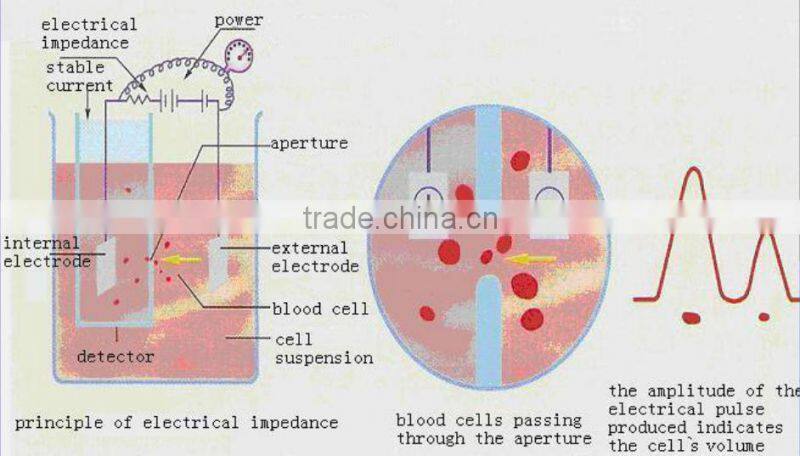

1.How It Works: Electrical impedance method, cyanide methemoglobin method and non-cyanide SFT method

2.Test Parameters: WBC three categories, 22 parameters, 23 parameters
(including color histograms of WBC, RBC, PLT)

3.Specimen Amount: Whole blood: 9.6μL; peripheral blood(direct detection): 9.6μL; peripheral blood
(pre-dilution mode): 20μL

4.Test Speed:Single-channel: 30 samples/h, dual-channel: 60 samples/h. May be continuous 24 hours a day, with automatic sleep and wake functions

5.Results Storage: The device saves 1.2 million copies of the results with all three histograms automatically

6.Quality Control Methods:L-J graph, X, SD, CV%

7.Automatic detection reagent margin, closed reagent tube

8.Calibration: Manual calibration and automatic calibration

9.Reference Value Setting: 8 settings groups with adult male, adult female, child, newborn, general all purpose and 3 groups of custom settings

10.Information: The device supports a variety of multiple patient information fast Chinese input, including 12 kinds of information such as name, department and censorship.

11.Operation: Chinese Windows color operating system, graphical buttons, supporting mouse operation

12.Interface: A parallel printer interface, a VGA display interface, two RS-232 interfaces, two USB interfaces and two PS / 2 interfaces

13.Report Printing: Built-in high thermal printing, optional six reporting formats in English, and an optional external printer

14.Working Environment: Working temperature of 15-35°C, and can be used in high altitude environment

15.Power supply: AC 220V 50HZ

 Specification
