Home > Products > Outdoor Fiber Optic Cable > Southern CHina Biggest Optic Cable Supplier Dome Type Fiber Optic Cable With Splice Kits
Southern CHina Biggest Optic Cable Supplier Dome Type Fiber Optic Cable With Splice Kits
- shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Good Performance of Tensile Strength and Temperature Fiber Optic Cable Drum
-
Can be Installed Without Shutting off the Power Adss Fiber Optical Cable Price per Meter
-
Protection Sleeve 100% Cable Core Filling Fiber Optic Cable
-
Small Diameter Light Weight and Friendly Installation Fiber Optic Cable Making Equipment
-
Southern China Biggest Fiber Cable Supplier Duct Aerial Strand Fiber Optic Cable
-
GYTC8A 48 Core Single Mode OS1 Aerial Fiber Optic Cable From Optical Fiber Cable Factory
Product Details
| Place of Origin | Guangdong, China | Brand Name | Necero | |
| Model Number | N-GYTS-4B1+BV 2X4 | Type | Coaxial | |
Product Description

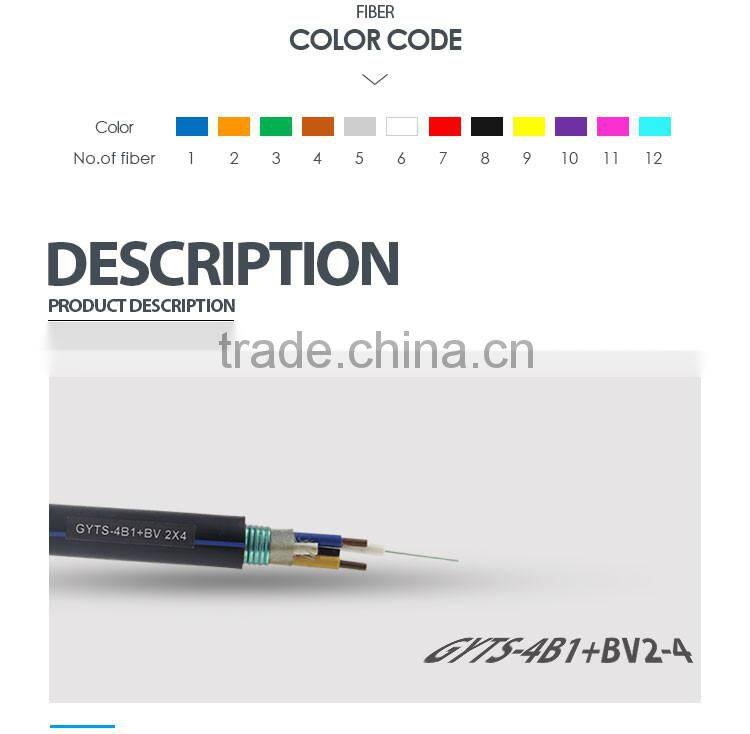

southern CHina biggest optic cable supplier dome type fiber optic cable with splice kits
Optical Characteristics
| G.652 | 50/125 | 62.5/125 | ||
| Maximum attenuation | @850nm | 3.5dB/km | 3.5dB/km | |
| @1300nm | ||||
| @1310nm | 0.45dB/km | |||
| @1550nm | 0.30dB/km | |||
| Typical attenuation | @850nm | 3.0dB/km | 3.0dB/km | |
| @1300nm | 1.0dB/km | 1.0dB/km | ||
| @1310nm | 0.40dB/km | |||
| @1550nm | 0.25dB/km | |||
| Minimum bandwidth | @850nm | 400MHz·km | 160MHz·km | |
| @1300nm | 800MHz·km | 500MHz·km | ||
Technical Parameters
| Item | Technical Specifications | Remark | |
| Bending Radius(mm) | Dynamic | 30D | |
| Static | 20D | ||
| Tensile Strength(N) | Short Term | 3000 | |
| Long Term | 1500 | ||
| (N/100mm2)Crush Resistance | Short Term | 3000 | |
| Long Term | 1000 | ||
| Operating Temperature range | Electric wire | -15℃~+70℃ | Comply with GB5023-1997 |
| Other materials except electric wire | -40℃~+70℃ | ||
| Water-blocking/ Waterproof Performance | No water leak if immersed in water for long time | Except wire conductor | |
| No electric leakage | |||
| Construction Temperature range | -20℃~+60℃ | Except electric wire | |
| 0℃~+60℃ | electric wire | ||
| Weight | 347kg/km (RV-2*2.5mm) 382kg/km (RV-4*2.5mm) 502kg/km (RV-6*2.5mm) 628kg/km (RV-8*2.5mm) | ||
| Mechanical Properties | Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 601-2001 | ||
| Applicable System of Laying | Suitable for pipe, channel, cable trenches, aerial, direct burial and so on | ||
Application Fields
·Telecommunications network
·Construction of communication base stations in villages, remote areas in cities and towns
·Residential areas and buildings FTTH
·Security monitoring project
·Others occasion which information together with electric power at the same time


FAQ
1. Are you the real factory?
Yes,we are the real factory with 15 years’ history.
2. What is your fiber brand?
Fiber brands including : NECERO,YOFC,FiberHome
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
