Bulk 50/125 OM3, 10 Gigabit Rated Multimode Fiber Optic Distribution Style Cable
- SHENZHEN
- T/T Money Gram Credit Card PayPal
You May Like
-
Bulk 50/125 OM2, Multimode Fiber Optic Distribution Style Cable
-
Bulk 62.5/125 OM1, Multimode Fiber Optic Distribution Style Cable
-
Bulk 9/125 Singlemode Fiber Optic Breakout Style Cable
-
50/125 OM4 100 Gigabit Rated Multimode Fiber Optic Breakout Style Cable
-
High Quality Corning Fiber Single Mode Indoor Fiber Optical Cable 72 Core GJFJV for Network Cabling
-
9/125mm Tight Buffered Indoor Optical Fiber Cable GJFJV Patch Cord
Product Details
| Place of Origin | Guangdong, China | Brand Name | NECERO | |
| Model Number | Bulk 50/125 OM3 10 Gigabit Rated Multimode Fiber Optic Distribution Ca | Type | Coaxial | |
Product Description
Specifications
1.Indoor GJFJV Optical Fiber Cable2.2fiber to 12fibers
3.Good performance and long life time
4.Factory price
5.ISO,TLC,etc
Bulk 50/125 OM3 10 Gigabit Rated Multimode Fiber Optic Distribution Cable 4/24/36/48/72/96/144/288 core

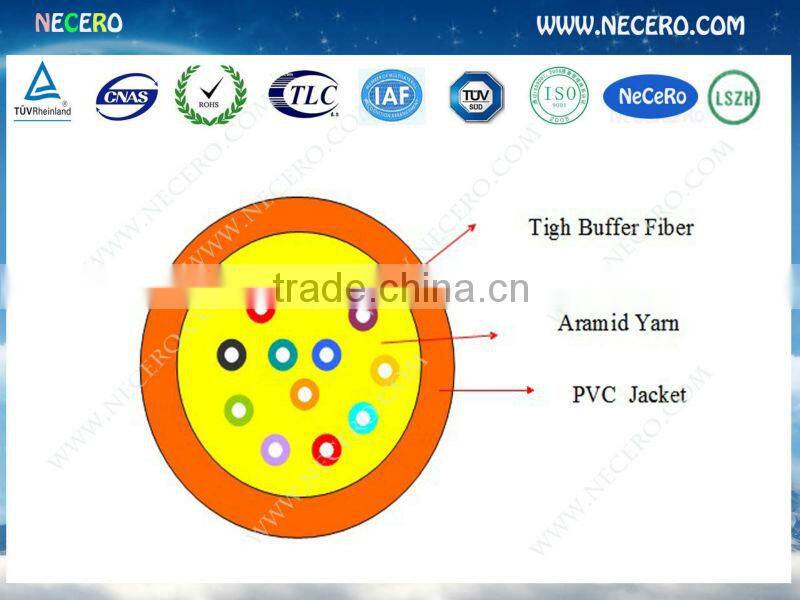

Image and structure
Bulk 50/125 OM3 10 Gigabit Rated Multimode Fiber Optic Distribution Cable 4/24/36/48/72/96/144/288 Fiber type
The Single mode optical fiber cable herein after referred to as the ''Cable'' comply with the requirements of this specification and generally meet ITU-T Recommendation G.652
G652 covers single-mode NDSF (non-dispersion-shifted fiber) which is optimized for 1310nm wavelength.
Fiber Material:silica glasses
The geometrical characteristics in accordance with the latest Recommendations of ITU-T for each fiber type
Material Properties of the Fibers
Continuous coloring of the secondary fiber coating provide positive identification of each fiber. The coloring stable during the lifetime of the cable and the order of coloring comply with the international standard.
Fiber color code
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Slate | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
If the fibers more than 12 fibers,there would be have special signature to printed in the fibers.
The nominal value of the coating diameter shall be 250 um +/- 7%.
Mode Field Diameter
The nominal mode field diameter at 1310 nm shall be 9.2 +/- 0.4 um
Cladding Diameter
The nominal value of the cladding diameter shall be 125 um. The cladding deviation shall be in the limits of +/- 1 %.
Attenuation
The maximum attenuation at the 1550 nm wavelength shall be less than or equal 0.22 dB/K mand at the 1310 nm wavelength shall be less than or equal 0.34 dB/Km. The maximum attenuation in the wavelength range 1525 to 1575 nm is no more than0.05 dB/Km greater than the attenuation at the 1550nm.
2.1.2 Life time: 30years.
