Product Details
| Place of Origin | Guangdong, China | Brand Name | MINGXIN | |
| Model Number | S-120-12 | Output Power | 101 - 200W | |
| Output Type | Single | Input Voltage | Other, 220V, 100-265VAC | |
| Output Voltage | 12V | Output Frequency | 50/60Hz | |
| Output Current | 10A |
Product Description

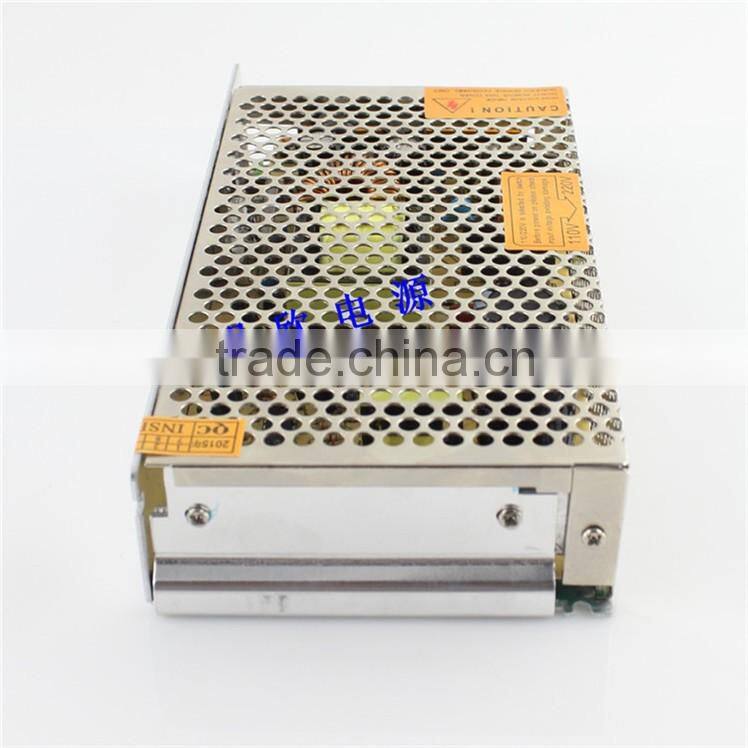

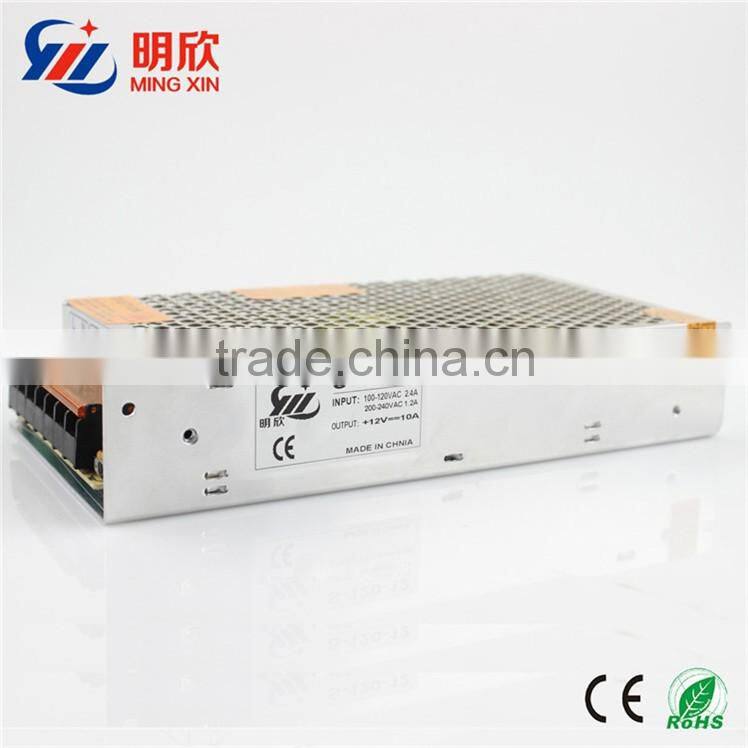

Electrical Equipment 120W power supply 12v 10a
Features
1.International AC input range
2.High efficiency,low working temperature
3.CE and Rohs approval,2 years warranty
4.OEM and ODM is welcome
Output Power: 120w
Output Voltage: 12v
Output Current: 10A
Input Voltage: 100-265V
Output Type: single
size: 199*98*42mm
More products more specification and pics as follows:
| Model | S-120-12 |
| AC input voltage range | 110-265V AC |
| Input current | 0.5A/115V 0.25A/230v |
| AC impulse current | Cold- start current 13A /115V 26A/230V |
| DC output voltage | 12V |
| DC output power | 120W |
| Rated output current | 10A |
| Output voltage error | ±1% |
| Efficiency | 90% |
| Wave and noise | 100mVp-p |
| Inlet stability | ±0.5% |
| Load satability | ±0.5% |
| Leakage current | <0.5mA/240VAC |
| Overload production | 105%-150% rated power,automatically recovery |
| Vibration | 10500HZ ,2G 10min/1 cycle,Period for 60min,EACH axes |
| Cooling method | Natural cooling air convection |
| Working temperature and humidity | -20°∼60°c /20%∼90%RH (no frost) |
| Store temperature and humidity | -40°∼85°c /10%∼95%RH (no frost) |
| Safety standards | CE (EMC+LVD) ,ROHS |
| Product size | 199*98*42mm |
1pc/white box ,30pcs/ctn
Our Advantage
8 years focus on the LED Power Supply Research and development, Production
Competitive price and best service
Timely reply to your enquiry
All the sample fee will be returned once the order confirmed, and we always have stock samples
OEM&ODM is ok for us
All inspection of the product
Company located in Longhua New Dirstrict .
Have strong ability of research and development and sales team to service for you
1. What is your minimum order quantity?
——the moq is 1 pc , for OEM &ODM is 500pcs
2.how long is your products warranty
——2 years
3.Can you accept OEM &ODM?
——yes , sure
4. How about your goods’ quality?
—— All our goods are certificated by CE, RoHS, also inspected by our QC team
