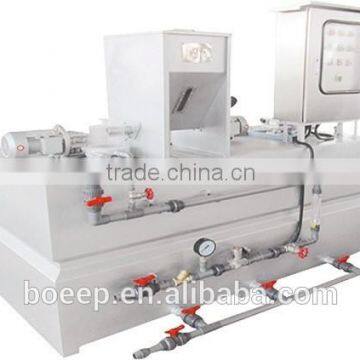

powder dosing machinery
- shanghai
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOEEP | |
| Model Number | YTH1000 |
Product Description
Specifications
Power feeding machine1.polymer machine for sewage treatment
2.low polymer consumption
3.automatic polymer and water feed
powder dosing machinery
Specifications:
1. polymer machine for sewage treatment
2. low polymer consumption
3. automatic polymer and water feeding
4. accurate concentration
Product Features :
1. Professional design to integrate three tanks( mixing tank, equalization tank and storage tank) into single device, which ensuring continuous operation and saving labour cost;
2. The flocculant dissolving concentration are avaible in certain scope;
3. Heating device is equipped to prevent condensation which may cause by the damp powder;
4. Auto intermittent agitating function , which make sure the solution can be mixed throughly and keep the solution in good condition (HPL 3 series);
5. Auto alarming and stopping ,which have the advantage of energy-saving(optional);
6. Low noise-low vibration and stable performance;
7. Material adopts stainless steel SUS 304( standard type);
8. TOP brand spare parts to ensure excellent performance;
9. Auto powder feeding vacuum auxiliary system( optional);
10.Specially suitable for both dry powder and liquid flocculant( optional) ;
Product Data:
Type Item | YTH500 | YTH1000 | YTH1500 | YTH2000 | YTH2500 | YTH3000 | YTH4000 | |
Capacity (L/h) | Curing/h | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
Power(kw) | 1.7 | 2.45 | 2.45 | 2.45 | 2.45 | 3.9 | 3.9 | |
PAM dosage(kg/h) | 1-5 | 2-10 | 3-15 | 3.5-20 | ||||
Water inflow(m3/h) | 0.3-1.5 | 0.6-3 | 0.9-4 | 1.2-6 | 1.6-8 | 2.0-10 | 2.4-12 | |
Reference Dimensions (mm) | L | 1370 | 2050 | 2130 | 2200 | 2450 | 2450 | 2780 |
B | 1063 | 1350 | 1350 | 1570 | 1610 | 1700 | 1800 | |
H | 1650 | 1920 | 1920 | 1900 | 2100 | 2250 | 2250 | |
L1 | 1300 | 1930 | 1930 | 2130 | 2330 | 2330 | 2650 | |
B1 | 780 | 1050 | 1050 | 1255 | 1270 | 1355 | 1440 | |
Power feeder DN | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | |
Water inlet DN1 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | |
Overflow port DN2 | DN32 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | |
Vent port DN3 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | |
N.W.(kg) | 380 | 510 | 590 | 710 | 820 | 860 | 1080 | |
Product Details:
The function of Polymer Dosing System is to make the flocculants of powder or
liquid dissolve or dilute into flocculants solution.
Product Application:
♣ It can be used in the aid condensation of city and industry sewage.
♣ It is convenient in the disposal and desposit of sludge.
♣ It can desolve all the powder polymer.
About us:
Company Introduction
Jiangsu BOE Environmental Protection Technology Co., Ltd. (BOEEP), lying in the traditional Chinese famous city—Yangzhou, is a professional environmental protection equipment manufacturer and engineering service enterprise.
BOEEP started to set foot in the environmental protection industry from 1988 and is mainly engaged in research on biological wastewater treatment technology and industrialization application, research and development, manufacture and sales of competitive products and technology service, general contracting of environmental protection engineering including design, installation and commissioning, and etc.
Total 6 series and over 50 kinds of environmental protection equipment developed and manufactured by BOEEP cover sludge dewatering equipment, mechanical bar screens, dissolved air flotation equipment, sludge scrape and suck equipment, dosing and mixing equipment, and conveying and pressing equipment.
As a famous leading technology environmental protection equipment manufacturer and engineering service enterprise, BOEEP is committed to create value for employees, customers, suppliers, company, shareholders, and society, realize the sustainable development.
