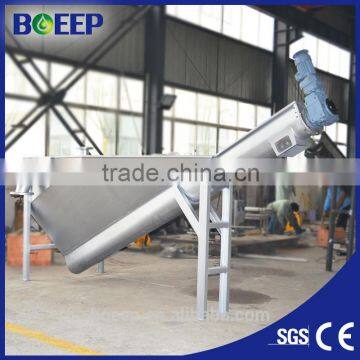

Sand-Water Separator

BOEEP: The leading provider of treatment equipment for water and wastewater industries in China, heading to all over the world.

. Specification:

1. It separates and transports sands spirally. It is light because of no underwater bearing which makes its maintenance more convenient.

2. The adoption of new decelerator makes the structure very compact, the operation smooth and the installation more convenient.

3. The using of the flexible bars in U groove, which are wear-resisting, makes the separator work with lower noise, and replace of these bars easily.

4. The whole set enjoys simple installation and easy operation.

General description for Sand and water separator machine:

MYSF Spiral Sand-Water Separator is composed of driving device, screw body, discharging port, water tank, line, U-type trough, frame, etc.

 Product Application:

• Municipal water and wastewater treatment plants
• Agricultural/fishery community wastewater treatment plants
• Industrial waste treatment plants
• Food/beverage production plants
• Dairy farming/Meat processing plants
• Chemicals manufacturing plants
• Machinery manufacturing/Metal processing plants
• Laundry wastewater
• Other plants requiring dewatering machine (paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.)

 Models:

Work principle of Spiral Sand-Water Separator  machine:

The Screw Type Sand and Water Separator is driven by the driving mechanism, the mixtures of sand and water flow to the water tank from one side of the separator, the heavier objects in the mixtures such as sands will sink at the bottom of the tank, the sands will lift up along with the learning U groove by the pushing of the screw vane, the sands will be pushed for a distance away from the liquid surface, then they will be discharged from the sands outlet to the sand collecting box after fully dewatering. The water in the separator will be discharged from the overflow port, and then flow to the pool in the plant.

Structure of Spiral Sand-Water Separator  machine:

Maintenance and repairing

a) Type 70#~120# medium extreme pressure industrial oil should be added to the decelerator which is put into use the first time (There is no need to add oil if it has already). The oil should be replaced after the machine running for 500hours, and the inside oil should be cleaned. After running for 1000~2000 hours, lubricating oil should be added instead. After that, the lubricating oil should be replaced every 2000 hours. When replacing the oil, it is necessary to clean the internal body. Add the oil by opening the ventilation cap on the base. When the decelerator is operating, the quantity of the oil storage should be kept the appointed level, not too much or too little, and please pay attention to add in time.

b) During the using process, it is necessary to check the equipment whether the fasteners are loose regularly, and if so, please fasten it in time.

c) Maintain and clean the equipment and replace the wearing parts according to the using conditions and do a good job to prevent corrosion.

Factory Site:
