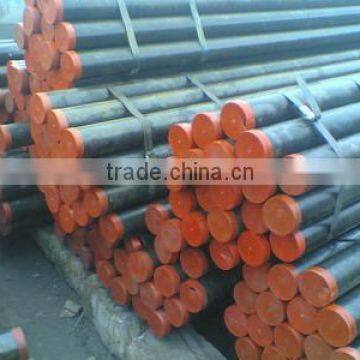

Zinc Coating Ductile Iron Pipe
- Xingang
- T/T
You May Like
Product Details
| Thickness | 2, 28 | Section Shape | Round | |
| Outer Diameter | 21.3 - 610 mm | Place of Origin | Hebei, China | |
| Secondary Or Not | Non-secondary | Application | Fluid Pipe | |
| Technique | Cold Drawn | Certification | API | |
| Surface Treatment | Other, 3PE black painting, | Special Pipe | API Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Specifications
Wall thickness:K8,K9,K10,C30,C40Standard:ISO2531,GB/T13295
1. Standard: API 5L PSL1, ASTM A106, ASTM A53, GB/T8163, GB/T8162 GB/T5310 GB/T3087
2.Material: API 5L GRB,x42-x60, A106 GRB, A53 GRB, steel 20#,Q345,16Mn,ST37.ST52.
3. Length: 5.8M, 6M, 11.8M, 12M or according to the customers requirements.
4. Outside diameter: 13.7mm-610mm Wall thickness: 2 mm-28.58mm
5. Outside antirust: black paint, 3PE, Varnish
6. End is protected by Plastic cap
7. Specification:
DN | DN (mm) | SCH40(6m) | SCH80(6m) | SCH160(6m) | |||
WT (mm) | WEIGHT/PCS (kg) | WT (mm) | WEIGHT/PCS (kg) | WT (mm) | WEIGHT/PCS (kg) | ||
1/4” | 13.7 | 2.24 | 3.79 | 3.02 | 4.80 |
|
|
3/8” | 17.1 | 2.31 | 5.04 | 3.20 | 6.60 |
|
|
1/2” | 21.3 | 2.77 | 7.62 | 3.73 | 9.72 | 4.78 | 11.7 |
3/4” | 26.7 | 2.87 | 10.14 | 3.91 | 13.2 | 5.56 | 17.4 |
1” | 33.4 | 3.38 | 15.00 | 4.55 | 19.44 | 6.35 | 25.44 |
1-1/4” | 42.2 | 3.56 | 20.34 | 4.85 | 26.82 | 6.35 | 33.66 |
1-1/2” | 48.3 | 3.68 | 24.30 | 5.08 | 32.46 | 7.14 | 43.5 |
2” | 60.3 | 3.91 | 32.64 | 5.54 | 44.88 | 8.74 | 66.66 |
2-1/2” | 73.0 | 5.16 | 51.78 | 7.01 | 68.46 | 9.53 | 89.52 |
3” | 88.9 | 5.49 | 67.74 | 7.62 | 91.62 | 11.13 | 128.1 |
3-1/2” | 101.6 | 5.74 | 81.42 | 8.08 | 111.78 |
|
|
4” | 114.3 | 6.02 | 96.42 | 8.56 | 133.92 | 13.49 | 201.24 |
5” | 141.3 | 6.55 | 130.62 | 9.53 | 185.82 | 15.88 | 294.66 |
6” | 168.3 | 7.11 | 169.56 | 10.97 | 255.36 | 18.26 | 405.36 |
8” | 219.1 | 8.18 | 255.3 | 12.70 | 387.84 | 23.01 | 667.62 |
10” | 273.0 | 9.27 | 361.86 | 15.09 | 576.06 | 28.58 | 1033.98 |
12” | 323.8 | 10.31 | 478.38 | 17.48 | 792.48 |
|
|
