Home > Products > solar system > Complete 3kw Home Solar Systems With Solar Panel On/off Grid Residential Solar Energy

Complete 3kw Home Solar Systems With Solar Panel On/off Grid Residential Solar Energy

FOB Price

US$ 1,999 - 2,998 / Set

1 Set(Min. Order)

Port Any port of China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CAP
Model Number	Solar system 4kw	Specification	Normal
Application	Home	Output Voltage (V)	110/120/220/230V
Load Power (W)	load	Solar Power (W)	4KW
Work Time (h)	8-24 hours

Product Description

complete 3kw home solar systems with solar panel on/off grid residential solar energy

1. Solar panel

2. (1) Solar inverter hybrid with controller

2. (2) Solar charger controller + Power inverter

3 Solar battery:

Or portable solar system 1kw-3kw:

We Advantage:

1) Over 15 year experience in clean energy line, business covering solar street light, solar garden light, off grid solar system and on grid solar power system, etc;

2) Exporting for worldwide, with satisfied clients more than 50 countries;
3) Competitive price, excellent service, integrated certificate system;

Solar system advantages:

1. CE, ISO,RHOS approved.

2. High conversion efficiency, high-transmission rate.

3. Energy saving, environmental-friendly.

4. Advanced technology, strict quality control system.

5. Easy installation, safe operation, free maintenance.

6. Low MOQ, fast delivery time, long service life

Ref No.	OFF-GRID-2KW
System Basic Information	Solar Panel Rated Output Power	1.6-2KW
	Suitable for Max Daily Power Consumption	20KWH
	Rated Output AC Capacity	2KW
Solar pane
Type	Crystalline Silicon PV Module, A-class	6-10pcs
Max Power	200w or 250W or 300w, example 250w
Vmp	30.5V
Size	165599245mm
Weight	22.5kg/pc
25 years power output guarantee (Note: 2pcs panels connect in series)

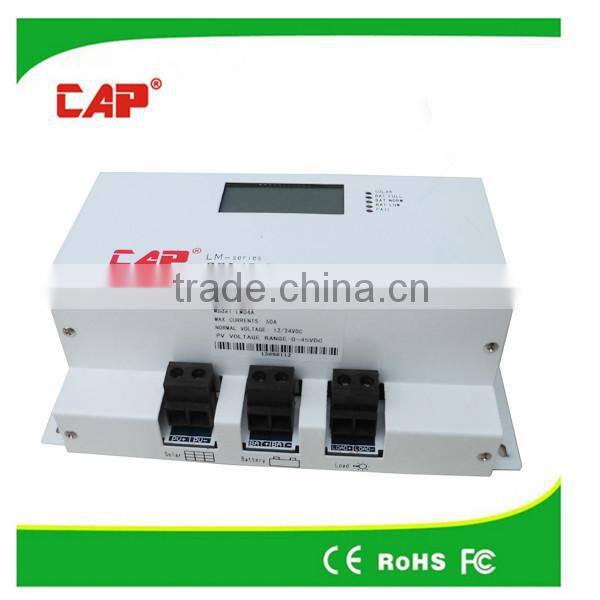

MPPT Solar Controller
Voltage	12v/24v/48v	1pc
Current	60A
Warranty	2 years
mppt high-efficiency charging controller, LED + LCD display, intelligent control; Temperature compensation, various protections.
Circuit Breaker	Used for protection of controller, installed between PV array combiner and controller	1pc

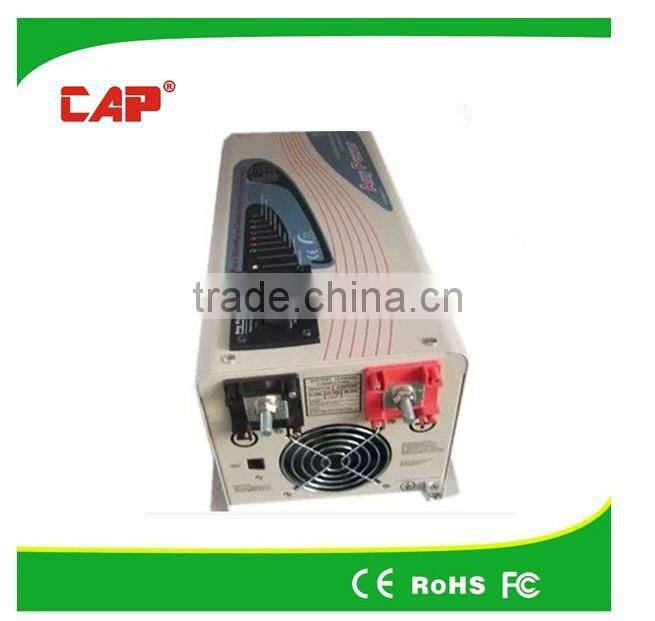

2KW Inverter
Input Voltage	DC 24V	1set
Output Voltage	AC220V/110V 1-phase
Frequency	50/60Hz
Efficiency	85% Or 95%
Note: This inverter provides grid power switch and battery charging functions.

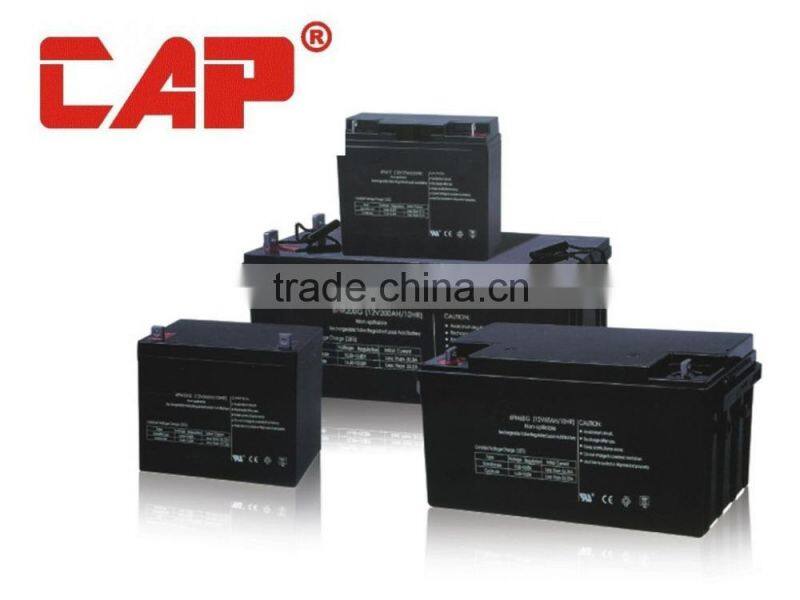

Battery
Capacities	12V/200AH or 100AH or 150AH	2-8pcs
Service life	5 to 6 years
Warranty	1 years

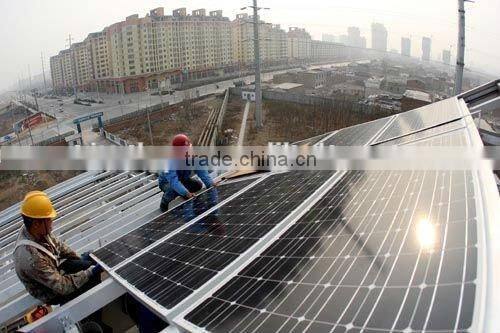

Solar panel rack	Flat-roof type mounting rack, steel material, anti-rust treatment (Other types of racks can be customized as per client's requirement)	1 set
Cable	100m
Connectors	2-terminal connectors, used for panels connection in parallel

Portable solar system:

MODEL		115V Models	230V Models
OUTPUT
Power Levels crated at nominal inputs		500VA/300W;1000VA/600W;2000VA/1200W; 2550VA/2000W;4000VA/3000W	500VA/300W;1000VA/600W;2000VA/1200W; 2550VA/2000W;4000VA/3000W
Output Voltage		120V	230V
Phase		Single phase
Voltage Waveform		Pure Sine Wave
Power Factor		0.6
Output Frequency(Synchronized to Mains)		Auto Select for 50/60Hz
Regulation (Nominal)		10%-18%
Regulation(Battery mode)		±0.1HZ
Transfer time		8ms Typical
INPUT
Nominal Voltage		110V/120V Selectable	220V/230V/240V Selectable
Phase		Single
Voltage range		90 - 145VAC or 170-280VAC ( Narrow Range )
		50-145VAC / 90-280VAC (Wide Range)
BATTERY
Charger Current		500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp

Overcharge Protection		500VA/300W: 15V +/- 0.3V charger stops and fault
		1000VA/600W:15V +/- 0.6V charger stops and fault
		2000VA/1200W: 30V +/- 0.6V charger stops and fault
EFFICIENCY
AC to AC		>95%
DC to AC		>80%
INDICATOR
AC Mode		Green LED lighting
Battery Mode		Yellow LED lighting
Battery Charging Mode		Green LED flashing every 2 seconds
Overload		Red LED flashing every 0.5 second
Fault		Red LED lighting
AUDIBLE ALARM
Low Battery at Battery Mode		Sounding every 2 seconds
Overload		Sounding every 0.5 second
Fault		Continously sounding
Protection
Full Rrotection		Deep Discharge, Overcharge, and Overload protection
ENVIRONMENTAL AND SAFETY
Operating Temperature		Up to 1500 meters:0 °C to 40°C (32°F to 104°F)
Transit/storage Temp.		15°C below zero to 50°C (5°F to 131°F)
Relative Humidity		0 - 90% non condensing
Quality control system		ISO 9001:2000, ISO 14002-2004
PHYSICAL
Appearance	Size(mm)L x W x H	224 x 255 x 80
	Weight(Kg)	500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg; 2550VA/2000W: 10kg; 4000VA/3000W: 10kg;
	Carton BOX(mm)L x W x H	414311560(3pcs)
	Gross Weight Weight(Kg)	500VA / 300W:7.4kg ;

Product features:

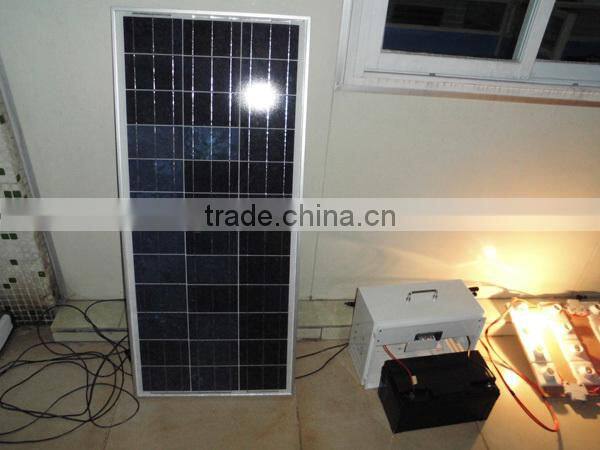

1. Off grid solar power system is mainly used for application with relatively-small power consumption, and the areas have no grid network coverage, or grid power is unstable or outage condition.

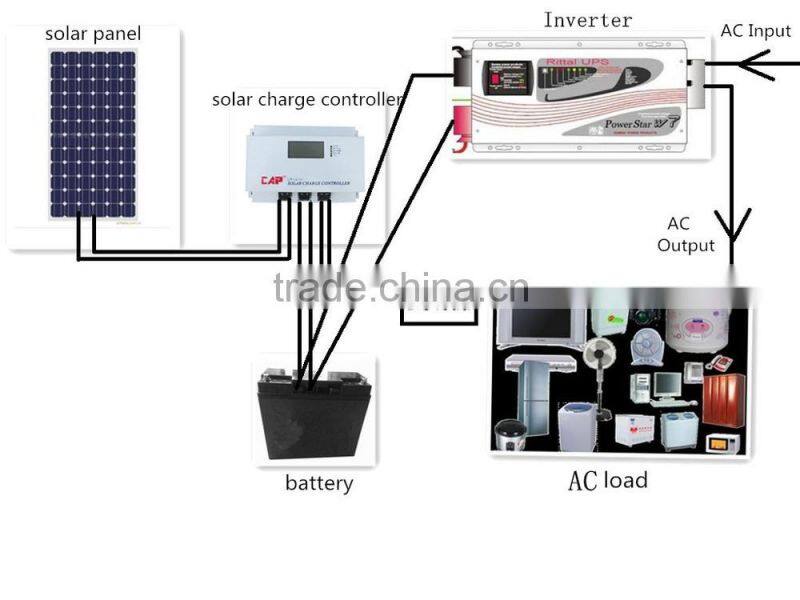

2. It’s composed of solar panels, hybrid solar inverter, battery bank, solar panel mounting racks, and other accessories required fora complete home solar power system.

3. The battery bank gives a stable power output to the solar inverter which converts DC to AC to power loads, and provides power backup in rainy or cloudy days.

4. The solar panels generate electricity at daytime and charge the battery bank .

5. The off grid home solar power system provides grid power bypass in case of battery power shortage when sunshine is not enough.

6. All the off grid home solar power system configurations are worked out by scientific calculation and design.

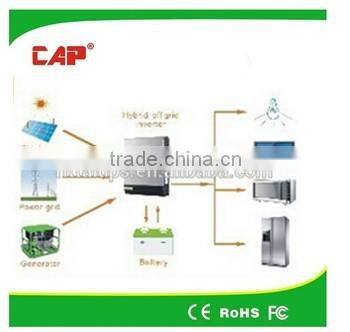

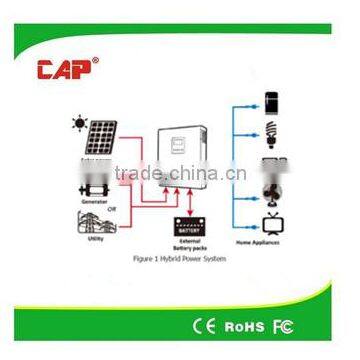

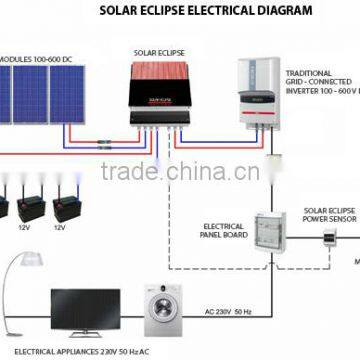

Working principle:

This is an off-grid system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply.

Terms and conditions:
1. Price: EXW, FOB, CIF Any Port of China, nearest city Guangzhou city.
2. Payment: typically 30% by T/T, balance by T/T before shipment. Negotiable for big order.
3. Package: Export standard package suitable for tough handling and sea transport.
4. Delivery: Goods to be ready within 3-5 days depending on order quantity.
5. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
6. Certification: CE,ROHS,ISO9001

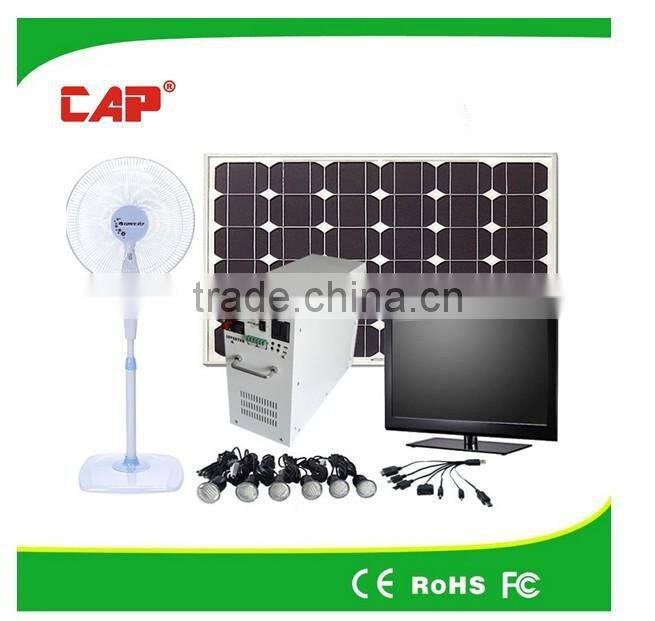

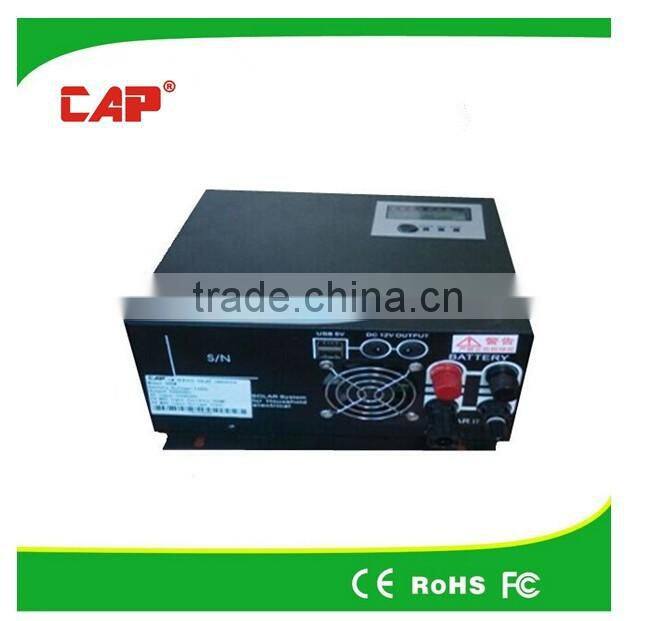

The lastest solar power system, portable for home & outdoor. It's with LCD Screen, USB, DC lighting output.

Q:when i order,when u can send them to me?

A:after confirm the payment,we can send u the sample in 5 days. in big quantity order,it take 8-15 work days that we can send the goods to u.

Q:will u lie to me?get the money and do not send the goods?

A:We are the factory,company,we do the business more than 10 years,and if over the delivery time have no any reason from us for delay,then u can complaint us on alibaba,and we will get the punishment from alibaba,then u can get your money back,and we will loss more than u had paid for do not worry about we do not send the goods.

Q: How many warranty years?

A: 3 years

Rittalups & CAP power produce green stable high quality inverter ,solar system, solar controller, portable solar system,

we light your life,light up the world,we grow up everyday,join us !!

Pls feel free to contact me for favorable price!!
