12V/24V/48V/96V 120V 192V Solar Charge Controller Circuit Diagram

12V/24V/48V/96V 120V 192V solar charge controller circuit diagram

MPPT advantage:

Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1  A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point)

Technical Data of solar charge controller Regulateor:

Properties:

·12V/24V,36V/72V,48V/96V,120V, 192V optional

·Advanced maximum power point tracking technology to optimize using the solar system

·Peak conversion efficiency of 97 %, high Tracking efficiency of 99%.

·Very fast sweeping of the entire I-V curve, several seconds tracking speed.

·Widely used, automatic recognize day/night.

·Timer function with 1-15 hours option for street light.

·Unique dual timer function, enhance the flexibility of street light system.

·Sealed, Gel and Flooded battery option.

·Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.

·Electronic protection: over charging, over discharging, overload, short circuit.

·Reverse protection: any combination of solar module and battery, without causing damage to any component.

 RJ45 interface with remote meter MT-5, convenient to check operating parameters of controllers.

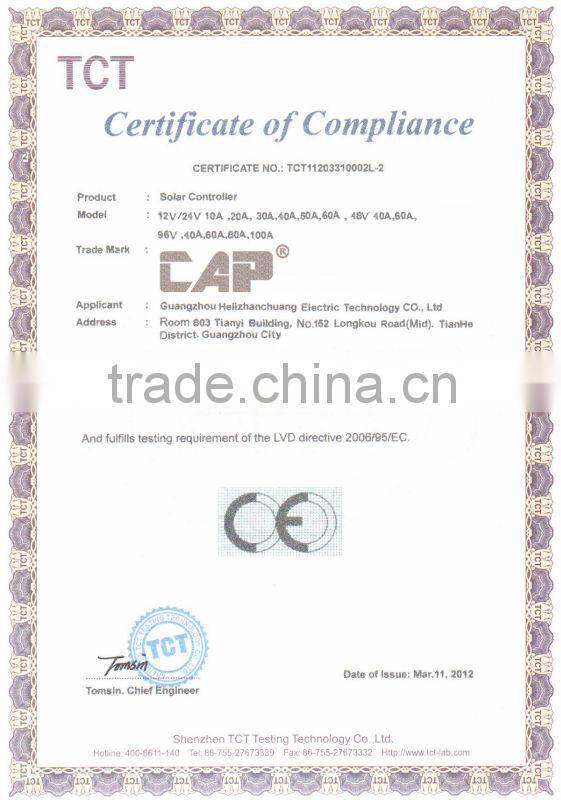

CE TCT Certificate

(1)Warranty :

Our product warranty is valid for 2 years after delivery. We undertake to repair  any  malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.

 (2)Lead time:

a.Sample orders(1-20pcs) will be delivered from our factory within 2 working days .

b.Bulk orders  will be delivered from our factory within 3-5 working days.

 (3)shippment :

 By sea ,airway , EMS, DHL, FedEx, TNT, UPS or other express.

 (4)Payment: T/T (Telegraphic transfer), and Western Union, Money Gram, L/C, D/A
