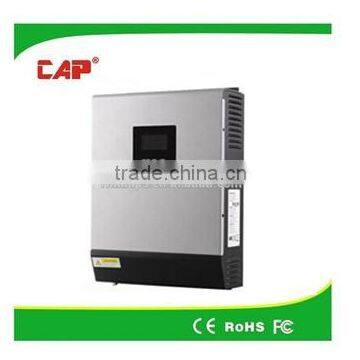

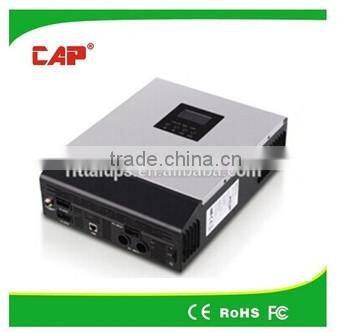

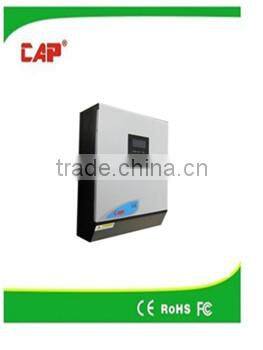

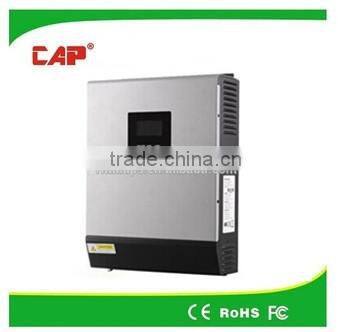

hybrid inverter 5kva 48v 230v built in mppt solar controller 60A

INVERTER MODEL

1KVA 24V

2KVA 24V

3KVA 24V

1KVA 48V

3KVA 48V

2KVA 24V Plus

3KVA 24V Plus

2KVA 48V Plus

3KVA 48V Plus

4KVA

5KVA

6KVA

Input Voltage Waveform

Sinusoidal (utility or generator)

Nominal Input Voltage

120Vac or 230Vac

Low Loss Voltage

95Vac± 7V or 170Vac± 7V (UPS)

65Vac± 7V or 90Vac± 7V (Appliances)

Low Loss Return Voltage

100Vac± 7V or 180Vac± 7V (UPS);

70Vac± 7V or 100Vac± 7V (Appliances)

High Loss Voltage

140Vac± 7V or 280Vac± 7V

High Loss Return Voltage

135Vac± 7V or 270Vac± 7V

Max AC Input Voltage

150Vac or 300Vac

Nominal Input Frequency

50Hz / 60Hz (Auto detection)

Low Loss Frequency

40± 1Hz

Low Loss Return Frequency

42± 1Hz

High Loss Frequency

65± 1Hz

High Loss Return Frequency

63± 1Hz

Output Short Circuit Protection

Line mode: Circuit Breaker

Battery mode: Electronic Circuits

Efficiency (Line Mode)

>95% ( Rated R load, battery full charged )

Transfer Time

10ms typical (UPS);

20ms typical (Appliances

Output power derating:

When AC input voltage drops to 95V or 170V depending on models, the output power will be derated.

INVERTER MODEL

1KVA 24V

2KVA 24V

3KVA 24V

2KVA 24V Plus

3KVA 24V Plus

1KVA 48V

3KVA 48V

2KVA 48V Plus

3KVA 48V Plus

4KVA

5KVA

Rated Output Power

1KVA/0.8KW

2KVA/1.6KW

3KVA/2.4KW

1KVA/1KW

2KVA/1.6KW

3KVA/2.4KW

4KVA/3.2KW 5KVA/4KW

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

110/120VAC±5% or 230Vac±5%

Output Frequency

60Hz or 50Hz

Peak Efficiency

90%

Overload Protection

5s@≥150% load; 10s@110%~150% load

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

24Vdc

48Vdc

Cold Start Voltage

23.0Vdc

46.0Vdc

Low DC Warning Voltage

@ load < 20%

@ 20% ≤ load < 50%

@ load ≥ 50%

22.0Vdc

21.4Vdc

20.2Vdc

44.0Vdc

42.8Vdc

40.4Vdc

Low DC Warning Return Voltage

@ load < 20%

@ 20% ≤ load < 50%

@ load ≥ 50%

23.0Vdc

22.4Vdc

21.2Vdc

46.0Vdc

44.8Vdc

42.4Vdc

Low DC Cut-off Voltage

@ load < 20%

@ 20% ≤ load < 50%

@ load ≥ 50%

21.0Vdc

20.4Vdc

19.2Vdc

42.0Vdc

40.8Vdc

38.4Vdc

High DC Recovery Voltage

29Vdc

58Vdc

High DC Cut-off Voltage

31Vdc

62Vdc

No Load Power Consumption

<25W

<50W

Saving Mode Power Consumption

<10W

<15W
