Home > Products > Micro Beer Equipment > Jinan Zunhuang stainless steel micro beer brewing equipment

Jinan Zunhuang stainless steel micro beer brewing equipment

FOB Price

USD $22,000 - $52,000 / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ZunHuang	Model Number	ZH-0.3
Processing Types	Alcohol	Voltage	220V/240V/380V/110V
Power(W)	30KW	Certification	CE/ISO 9001:2008
Warranty	3 years	After-sales Service Provided	Overseas service center available

Product Description

Specifications

fessional design,
2.finely processed,
3.CE,ISO9001
4.free installation,personnel training
5.can brew many kinds of beer

1 . Product info

The whole set of equipment includes mashing system, fermentation system, bright beer system, cooling system, control system, CIP systems and other components, The vessels for various systems adopt Height to diameter ratio optimization design, all systems use 304 stainless steel and the argon protection side welding molding technology , thus the inner wall of the vessel welded corners are clean enough to provide quality assurance for the production of high quality puree biological beer. At the same time, the stability of the DCS control system makes the entire equipments high intelligence, it achieves unattended in the true sense,thus it becomes automatic intelligent bio-fermentation equipment to provide a strong guarantee for the production of the bio beer.

2 . Technical specification

Outside surface	S.S.304,THK:2mm
Inner surface	S.S.304,THK:2mm-4mm
Top shape	Seal head or conical head
Heating method	Natural gas/electricity/LPG/direct fire
Insulation layer	Protected by polyurethane ,THK:80 mm
Polishing precision	≤0.4µm
Manhole	Side or upside
Spral ball	In the center of the inside tank
Agitator	Raking system conneted into a top reducer
Chimney	On the top of the tank
Processing	Argon-arc welding

3 . Benefit analysis:(CNY)

The analysis is based on chinese market.

Items	ZH-0.1	ZH-0.2	ZH-0.3	ZH-0.5	ZH-1.0	ZH-2.0
Malt	20kg×4.5	40kg×4.5	60kg×4.5	100kg×4.5	200kg×4.5	400kg×4.5
Hops	0.06kg×150	0.12kg×150	0.18kg×150	0.3kg×150	0.6kg×150	1.2kg×150
Yeast	0.1kg×1200/5	0.2kg×1200/5	0.3kg×1200/5	0.5kg×1200/5	1kg×1200/5	2kg×1200/5
Water consuming	0.5t×4	1t×4	1.5t×4	2.5t×4	5t×4	10t×4
Power consuming	30kw×1h	50kw×1h	60kw×1h	80kw×1h	150kw×1h	250kw×1h
Personal salary	100×1	100×2	100×2	100×3	100×4	100×5
Missing5%	8.5	17	35	60	60	120
Management cost	10	10	20	20	30	30
Material cost	2 74	527	690	1085	1890	3400
Income	100L×15	200L×15	300L×15	500L×15	1000L×15	2000L×15
Tax4.4%	66	132	198	330	660	1320
Day benefit	1160	2341	3612	6085	12450	25280
Year(200days) benefit	232000	468200	722400	1217000	2490000	5056000

4 .Detailed pics as below:

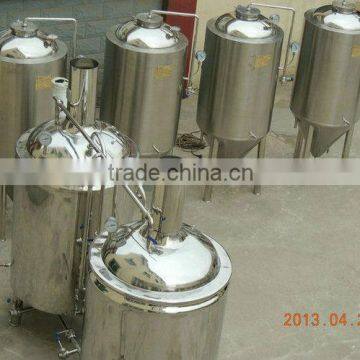

whole

Mash system

Fermentation system

Raker

Cooling system

CIP system

Milling system

Control system

Packaging!

Delivery!

CE Certification !

Let's drink to our long- term friendship and further mutually beneficial cooperation!
