20W LED Track light
You May Like
Product Details
| Place of Origin | Sichuan, China |
Product Description
Specifications
-Freely change the angle, changing lighting effects.-Precise control of light, high CRI, high luminous efficiency

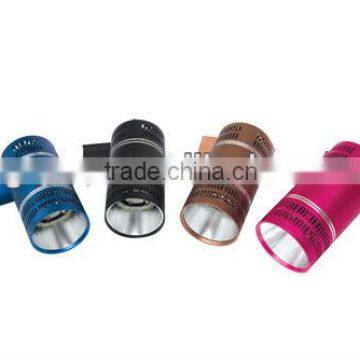

20W LED Track light
-Freely change the angle, changing lighting effects.
-Precise control of light, high CRI, high luminous efficiency
-High-quality Aluminum shell, good heat dissipation, light decay less, life longer.
-Efficient optical lens, optical loss small, without spot.
-Brand LED cold light source, no radiation, no flash, compact and lightweight, nice appearance, easy installation and replacement.
êElectrical Parameter(Ta=25°C±3°C)
Parameter | Symbol | Unit | Min. | Typ. | Max. |
Input Voltage | VIN | V | 85 | -- | 264 |
Input Current | IIN | mA | 85 | -- | 242 |
Input Frequency | F | Hz | 50 | -- | 60 |
Harmonics Current | THD | % | 15 | -- | 25 |
Power | P | W | 20 | 20 | 20 |
Power Factor | COSΦ | -- | 0.90 | 0.95 | 0.97 |
OperatingTemperature | TOP | °C | -20 | 25 | +60 |
Operating Humidity | HOP | %RH | 23 | -- | 93 |
Storage Temperature | HOP | %RH | 10 | 20 | 30 |
êPhotometric Parameter(Ta=25°C±3°C)
Parameter | Symbol | Unit | Min. | Typ. | Max. |
Lumen Output | FLUX | lm | 1650 | 1700 | 1750 |
Lux at 1m | E | lx | 188 | 198 | 208 |
Lux at 2m | E | lx | 39 | 49 | 52 |
Lux at 3m | E | lx | 18 | 21 | 24 |
Color Temperature | TC | K | 3000 | -- | 6000 |
Color Rendering Index | CRI | -- | 75 | 80 | -- |
