Super pulse scaning 30W CO2 Laser Therapy Apparatus Laser Beauty Device

Specifications

The Ultra pulse Fractional Laser System

The JZ-2 Generation-2 Ultra Pulse Co₂ Fractional Laser System, with 4 working modes as pulse, Scanning, Ultra Pulse and Continuous, could do various of high-demanded laser treatment safely and effectively, specially for aesthetic surgery and dermatology.

It virtues for its 4 advantages, that is, high precision operation ,tiny thermal injury , short treatment time, quicker recovery time. With highest-integrated and ultra-high-speed Graphics Scanner, the machine could scan various of non-linear fashion with different size and shape. The scanning shape could be specially designed for customer’s different needs, either 2 modes could be chosen in the 11 scanning modes.

It also virtues as its Dynamic Balance and Compensation Install for Remedying Energy Attenuation.

The machine could automatically compensate more energy when the energy of the laser tube reduces, without needing operators reset the treatment parameters according their own experiences;

Touch Screen operating panel:

System Feature

·Green guiding light make operation vision clearer
·For skin resurfacing and for dermatology cut/surgery.
·Various power supply for European, American and area needs.
·Smaller and lighter scanner(volume:7x4x11cm, weight:240g) for more convenient operation.
·With background set for operation time and machine use time.
·With time-accumulater for showing total operation time and machine use time.
·Friendly designed in modular for easy maintenance, with red and green light to guide it.
·Friendly designed for high safety, with warning-alarm-set. Clearly showed on the display screen.
·With energy self-replenishment system, improving the electric flue automatically to ensure real screen.
·With high cost-effective, great quality, best accessories, made by most skilled workers and engineers.
·With cooperation beauty hospital ,each machine should be first perfected in hospital, then customers.
·Committee of China Laser Standard Association, Executive of Laser Branch of china Optical Society.

Application:

It is applied in stripping ,cutting and vaporization. Specially, for skin rejuvenation, improvement of pachylosis, large pores, complexion unbalanced and so on. It has notable effect of removal scars, winkles, pigmentation, stain, acne, moles, nevus, hemangioma, skin tag and so on.

Acne scars,
Surgical scars
Traumatic scars
Actinic scars
Melasma (mask of pregnancy)
Skin resurfacing (to improve texture)
Wrinkles around the eyes and mouth
Pigmented lesions : age spots/brown spots/sun spots/
Red vascular removal

Fractional laser working principle

With fractional CO₂ laser resurfacing , the laser beam is broken up pr fractionated into many small micro beams which are separated ,so that when they strike the skin surface small areas of the skin between the beams, the skin would not be hit by the laser and left intact.

These small areas of untreated skin promote a much more rapid recovery and healing time, with less risk of complications. While the small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant in facial skin rejuvenation.

As these treated areas are much smaller than the surrounding healthy tissue, the healing time is significantly shortened. Most fractional CO₂ laser patients heal in less than one week for facial treatment. It provides results almost as good as traditional full-surface CO₂ laser, but with far less risk, downtime, infection and complication.

Nicely, it can also safely treat other areas besides face, producing excellent results in treating neck, hands and back, such as skin laxity, acne scars and wrinkles. But only one to two treatment are needed for up to an 85% improvement.

Traditional full-surface CO₂ laser treatments are performed by using a beam of intense laser energy, which is passed over the skin surface to vaporize the entire top layer of skin. The damage to the tissue is extensive, it takes at least tow weeks to heal and regrow a new top layer of skin(i.e., re-epithelialize the entire top layer of skin).

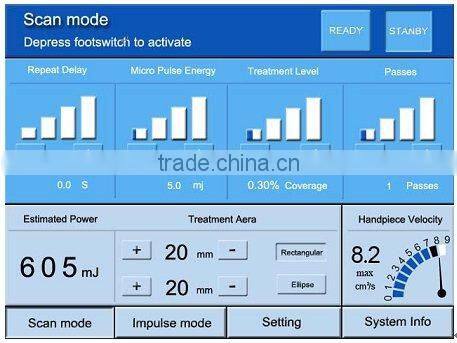

Scanning Mode:

Treatment Photo

Technical Specification

Wave Length: 10.6um
Output Power: 1-30W adjustable
Micro Pulse Energy: 5mj-100mj,16 steps adjustable
Estimated Power: 125mj-1kj
Scanner Focus: f= 50mm (FFLS) or f=100mm (HFLS)
Focus Spot Diameter: <=0.1mm (FFLS) , <=0.2mm(HFLS)
Treatment Depth: 2000um (FFLS),600um(HFLS)
Conducting Beam: Green Semi-conductor laser (532nm,=mW)
Control System: microcomputer control
Smoke Emission System : Built-in air blow
Cooling System: Water cooling
Display Screen: color LCD (8 inch touch screen)
Light Delivery System:7 Joint articulated arm
Working Mode: with scanner (galvanometer scanning)
FFLS scanning area: max 15x15mm
HFLS scanning area: max 15x15mm
Scanning mode: Ellipse, Rectangular (standard)
Scanning velocity: >10m/s
CW: output power,1-30w, 1W adjustable
Ultra:  Frequency, 1000HZ, 1HZ adjustable
Treatment control: footswitch
Environmental Temperature: 5-40°C
Relative Humidity: <=80%
Machine Weight: 40kg
Machine Dimension: 450mm x 550mm x 1400mm
Power Supply: AC 220Vu22V;50HZ,3Amp
