Steel Tee Cold Forming Machine

FOB Price

US$ 10,000 - 200,000 / Set

1 Set(Min. Order)

Port Tianjin

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China		Brand Name	unipand
Model Number	UNI-YST30		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

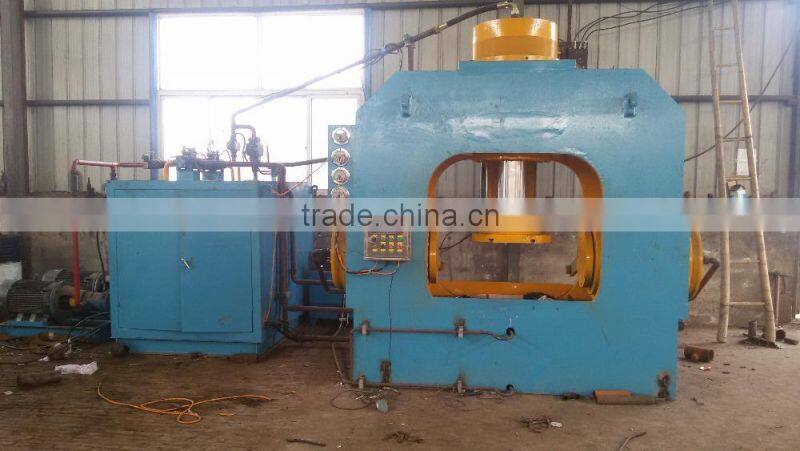

steel pipe tee forming making machine

Performance :

this series of hydraulic press is suitable for hydraulic forming carbon steel, seamless and welded stainless tee fittings; can make the metal products keep better flow direction beautiful appearance, compact density and improved intensity.

The equipment is provided with independent actuating unit and electrical system; adopts PLC programmable controller and realize inching, manual, semi-automatic and full-automatic those four kinds of controlling methods .the full-automatic function possesses the parts of automatic decompression which cast of manual handle, relieved the complicated manual operation and defective rate. This machine has the advantage of higher nominal pressure, easily shifting, higher guiding precision, higher universal property, and can handle the parts with difficult shape for blanking, stretching, rectifying and press fitting ;and more adoptable for producing the fittings on petroleum, pro-electricity and water conservancy, the company possesses the production capacity of 100T-600T.

Major technology parameters

Parameter/model	YST30-200T	YST30-400T	YST30-700T	YST30-1000T	YST30-1200T
Jar thrusting force at two sides(T)	200*2	350*2	500*2	800*2	1000*2
Pressure of mode locking jar (T)	220	400	700	1000	1200
Ejecting force of ejecting jar (T)	10	10	20	20	30
System pressure(Mpa)	28	28	28	28	28
Adaptable tee size	1/2”~2’’	2”~4”	4”~6”	3”~8”	4”~10”

Parameter/model	YST30-1400T	YST30-1600T	YST30-2000T	YST30-3000T	YST30-4000T
Jar thrusting force at two sides(T)	1200*2	1400*2	1600*2	2000*2	3500*2
Pressure of mode locking jar (T)	1400	1600	2000	3000	4000
Ejecting force of ejecting jar (T)	30	30	40	40	40
System pressure(Mpa)	28	28	28	28	28
Adaptable tee size	4”~12”	4”~14”	6”~16”	8”~20”	10”~24”
