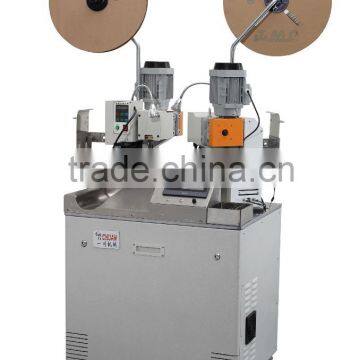

BX-330A Double automatic terminal Machines(Normal)

Device Function

This machine can realize double stripping and terminal. single end terminal or semi-stripping.

Equipment Featurs

1. The machine uses PLC controller with full stepper motor control.

2.The design is simple, compact, and practical.

3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.

4.all other requiremens can be equipped according to customer

Function Parameter

1.Power:AC220V 50/60HZ

2.Power:2500w

3.The pressure focused on:1.5T/can be customized according to customer requirements.

ducction efficiency: 5000pcs(length within 200mm)

5.wire processing length:45mm-9999mm, tangential cut length precision1mm+0.1%*.

6.Stripping Length:0mm-12mm

7.wire specification:wire AWG18-AWG28, other specifications can be customized.

8.the air pressure:4.5-6kgf(need to use clean air)

9. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.

10. the detection device: Pressure testing, without wires,tie detection.presence or absence of the terminal crimping detection

11. the device size:1000*700*1500mm excluding projecting portions.

12. Weight:260KG

13.take-up device:optional according to customer request.(1.5m-10m)

ure sensor:optional according to customer request.
