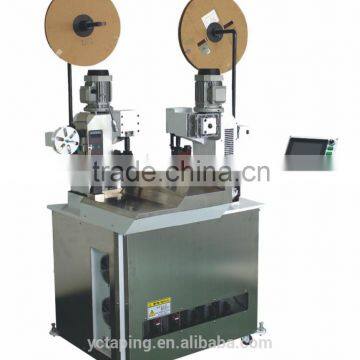

Automatic wire stripping and crimping machine

Equipment Featurs

1. Machine equipped with Panasonic PLC controller with servo motor control,Line feeding , stripping, beating terminal more accurate and stable.

2.The pneumatic components used are impoted brands,making equipment more durable and smooth.

3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.

4.all other requiremens can be equipped according to customer

Function Parameter

1.Power:AC220V 50/60HZ 2.Power:3000w

3.The pressure focused on:1.5T/can be customized according to customer requirements.

ducction efficiency:2700pcs/h(less than 200mm)

5.wire processing length:30mm-9999mm, tangential cut length precision1mm+0.1 %*.

6.Stripping Length:ends0mm-12mm

7.wire palstic shell specification:wire AWG10-AWG20 or AWG20-AWG32,other specifications can be customized.

8.the air pressure:4.5-6kgf(need to use clean air)

9.the pressure sensor:optional according to customer requirements reprovision 10. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.

11.Take-up device:Equipped with special devices according to customer request.

<![if !supportLists]>12. <![endif]>the detection device: Pressure testing, without wires,tie detection,presence or absence of the terminal crimping detection.

<![if !supportLists]>13. <![endif]>the device size:1100*920*1600mmcontain projections and the bobbin part.

<![if !supportLists]>14. <![endif]>Weight:400KG

15.The life of wire cutter: 3000,000 times.

16.The life of Crimping fixture: 300,000 times. 17.Equip with European crimping tooling, UPS power.

Device Function

The machine can realize automatic beat terminals wear stripping hit two terminals, the first single play terminals or single-ended semi-stripping and other functions.
