Home > Products > Fuse Cutout > high voltage fuse cutout

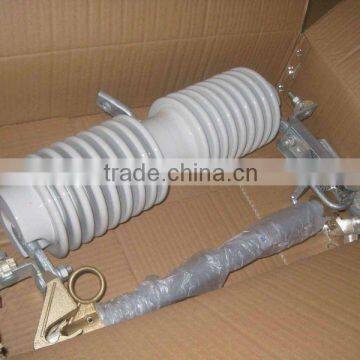

high voltage fuse cutout
- 100000 Piece / Pieces per Month
- ningbo
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | RU-DO | |
| Model Number | RUDOPA-36/200 | Usage | High Voltage | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Specifications
1 Advanced design of fuse tube.2. Reliable and efficient current-carry path.
3. All metal parts are processed by special tre
Technical Parameter:
Rated Voltage (KV) | Rated Current (A) | Breaking Current (A) | Impulse Voltage (BIL) | Power Frequency Withstand Voltage | Leakage Distance (MM) | Weight (KG) | Dimensions (CM) |
10kv-15kv | 100 | 10000 | 110 | 40 | 250 | 7.3 | 38.5*34.5*10.5 |
200 | 12000 | 110 | 40 | 250 | 7.3 | ||
15kv-27kv | 100 | 10000 | 125 | 45 | 350 | 8.5 | 48*34.5*10.5 |
200 | 12000 | 125 | 45 | 350 | 8.5 | ||
24kv-27kv | 100 | 8000 | 150 | 65 | 530 | 12 | 48*34.5*14 |
200 | 6000 | 150 | 65 | 530 | 12 | ||
27kv-33kv | 100 | 8000 | 170 | 70 | 700 | 15 | 56*38*14.5 |
200 | 10000 | 170 | 70 | 700 | 15 | ||
33kv-36kv | 100 | 6000 | 170 | 70 | 720 | 15.5 | 57*38*14.5 |
200 | 8000 | 170 | 70 | 720 | 15.5 | ||
36kv-38kv | 100 | 6000 | 180 | 75 | 850 | 17 | 61*38*14.5 |
200 | 8000 | 180 | 75 | 850 | 17 |
