Cable Accessory RU YTGZ-24/630 Integral Dead Break Bushing
- Fuzhou
- T/T D/P D/A
You May Like
-
Cable Joints RU KQT-36/630 Shielded Fore-Connector
-
Cable Joints 630A,36KV Deadbreak Straight Connector
-
Separable connector/Cable joints 630A,24kV Unshielded Fore-Connector With Silicone Rubber
-
separable connector/ 630A,24kV Unshielded Sub-Connector With Silicone Rubber
-
separable connector /15kv/200A load break elbow connector
-
separable connector /ZT-35kv/200A Load break Elbow Connector
Product Details
| Place of Origin | Fujian, China |
Product Description
Specifications
1.Cale accessories2.for three-phase switching
3.Integral Dead Break Bushing
4.24KV/630 A
Cale accessories /Cable Joints
The RU YTGZ-24/630 Integral Deadreak Bushing combines the advantages of reliable integral design with the operating features required for three-phase switching. The bushing is designed for pad mounted transformers, switchgear and other apparatus filled with transformer oil, or an approved equivalent.
The Bushing is molded with high quality mixed epoxy insulating material. When mated with comparably rated connectors, it provides a fully shielded, submersible and separable connection for deadbreak operation.

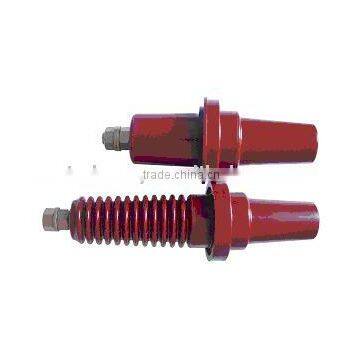

The RU YTGZ-24/630 Integral Bushing includes two kinds: Type A is used in oil-insulated apparatus and type B is suitable for the air-insulated devices .The bushings can be fixed to the tank with 4-Stud Clamp.
Two test holes for high voltage indicators are available if necessary.
Electrical Characteristics:
Voltage Rating and Characteristics | |
Description | kv |
Standard Voltage Class | 20 |
Max Rating Phase to phase | 24 |
Max Phase to ground | 48 |
AC 50 Hz 1 minute Withstand | 48 |
DC 15 minute Withstand | 125 |
BIL and Full Wave Crest | 15 |
Current Ratings and Characteristics | |
Description | Amperes |
Continue | 630A |
24 hour overload | 1000 |
Short time | 50kA rms symmetrical for 0.3s 20kA rms symmetrical for 4.0s |
Electrical Characteristics are in accordance with or exceed GB/T 12706.4-2002, ANSI/IEE 386-1995, IEC 60502-4:1997 | |
Ordering information:
To order a 630 amps,10 or 24kv Integral Deadreak Bushing , Please refer to the Code information and select the proper catalog No. Below.
Catalog No.
| Current Rating (A) | Note: based on 8.7/10kV, 8.7/15kv XLPE cable range per GB 12706, IEC 60502-2: 1998 standards, For 3.6/7.2kV or 6/10kV cable application, please contact us. |
CEE YTGZA-24/630, CEE YTGZAC-24/630 | 630 | |
CEE YTGZB-24/630, CEE YTGZBC-24/630 | 630 |
