Home > Products > Band-aid packaging machine > band-aid making machine
band-aid making machine
- QINGDAO
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | RUIKANG | |
| Model Number | KC-360N-A | Condition | New | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Production Capacity: 300-360 pcs/minTotal Power : 1.5kw
Machine Dimension :3.3*0.8*1.8m (L*W*H)
Machine Weight: 600kg
Pls contact me and ask for the video and price of this machine.
MOBILE: +8615376111351

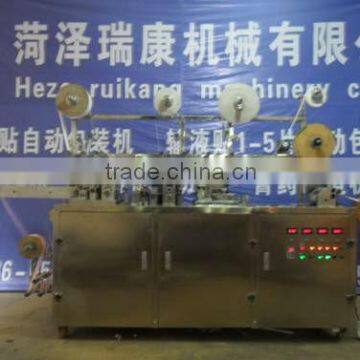

KC-360N-A Band-aid Packing Machine
Fearture:
1. Use of frequency control devices, so that it is easy to adjust the speed of production .
2. KC-360N-A model uses Multi-floating roller buffer device, so that the anti-adhesive paper and the tape are steady while towing - stripping - compounding at high speed , reducing the deformation fight wrinkles and the damage to the tape.
3. The machine using light-control switch to control solenoid ,so it can change the number of products to cut off automatically. 4. KC-360N-A model can easily adjust the working condition of tape, pinhole, medicine belt and wrapping paper to the correct location.
5. KC-360N-A model's drug pad feeding and tape walking are in the same direction.
6. Machine drive adopts timing belt wheel drive mode. The equipment is smoothly when it is in high-speed operation and stopped, while eliminating the phenomenon of machine-inch movement and noise.
7.The outer casing of the equipment using stainless steel packaging, easy cleaning and maintenance , in line with national health standards
Main Technical Parameters
Model |
KC-360N-A |
Production Capacity |
300-360 pcs/min |
Total Power |
1.5kw |
Machine Dimension |
3.3*0.8*1.8m (L*W*H) |
Machine Weight |
600kg |
Band-aid Specifications can be made by KC-360N-A
Band-aid Specifications | (Pcs/min) |
72*19mm | 300-360 |
60*19mm | 300-360 |
60*18mm | 300-360 |
65*19mm | 300-360 |
65*18mm | 300-360 |
76*19mm | 300-360 |
70*18mm | 300-360 |
56*18mm | 300-360 |
76*25mm | 280-340 |
72*25mm | 280-340 |
diameter22mm | 220-300 |
Substrate material type:elastic fabric, cotton fabric, PVC, PE, spunlace fabric, non-woven fabric
| |
Contact Us
- Heze Ruikang Machinery Co., Ltd.
- Contact nameJilly Yang Chat Now
- Phone86-530-6268088
- AddressAnxing Industrial Park, Heze City, Shandong Provice, China, Heze, Shandong
