CD110 6.3V 100UF 5x11MM 85C 2000hrs Standard Radial General Purposes Aluminum Electrolytic Capacitors
US$ 0.15 - 1.25
/ Piece
10000 Pieces(Min. Order)
- Chengdu
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CD110 6.3V 47UF 5x11MM 85C 2000hrs Standard Radial General Purposes Aluminum Electrolytic Capacitors
-
CD110 6.3V 33UF 5x11MM 85C 2000hrs Standard Radial General Purposes Aluminum Electrolytic Capacitors
-
Capacitor CD293
-
CD60 300WV 63UF 51x100MM Lug For Moto Starting the Compressor Starter Air-conditioner Aluminum Electrolytic Capacitors
-
CD60 300WV 50UF 45x100MM Lug For Moto Starting the Compressor Starter Air-conditioner Aluminum Electrolytic Capacitors
-
CD60 300WV 40UF 40x100MM Lug For Moto Starting the Compressor Starter Air-conditioner Aluminum Electrolytic Capacitors
Product Details
| Place of Origin | Sichuan, China | Brand Name | HF | |
| Model Number | CD110 | Type | Aluminum Electrolytic Capacitor | |
| Application | General Purpose | Package Type | Through Hole | |
| Capacitance | 100UF | Rated Voltage | 6.3V | |
| Operating Temperature | -40~85°C |
Product Description
Product Description
| Product Name | CD110 6.3V 100UF 5x11MM 85°C 2000hrs standard Radial general purposes Aluminum Electrolytic Capacitors |
| Material | Aluminum Foil ,Paper,Chemicals |
| Operating Temperature Rang(°C) | -40 to +85°C |
| Capacitance Tolerance (20°C，120Hz) | ±20% |
| Leakage Current | Rated Volatage(6.3-100V):0.01CV or 3μA whichever is greater(at 20°C after1 mins) Rated Volatage(160-450V):0.03CV or 10μA whichever is greater(at 20°C after1 mins) |
| Load Life(85°C) | Time: 2000hrs Leakage Current :not more than specified value Capacitance Change:Within ±20% of the intial value Dissipation Factor: Not more than 200% of the specified value. |
| Shelf Life (85°C) | After leaving capacitors under no load at 85°C for 1000 hours, capacitors shall meet the specified vaue for load . |
| Used | Standard serials for |
| Color | Black,Blue ,White,Red (Details as fellows) |

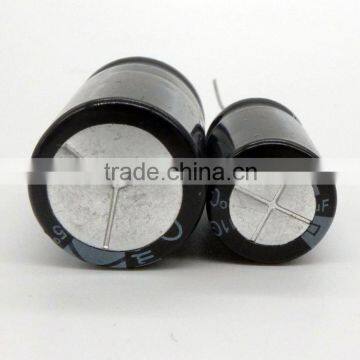

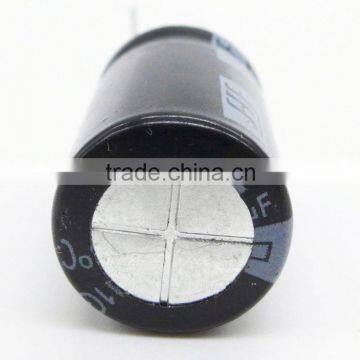

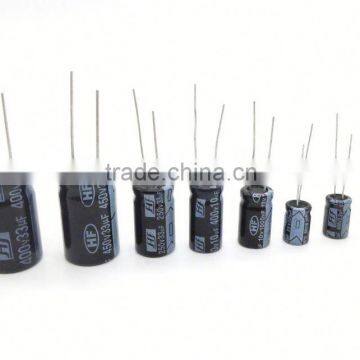

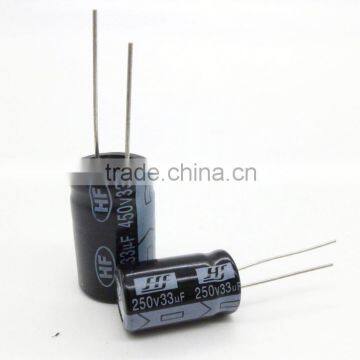

Products Show
The Color of Sleeving
You can OEM your color Sleeving and trademark on the tube .

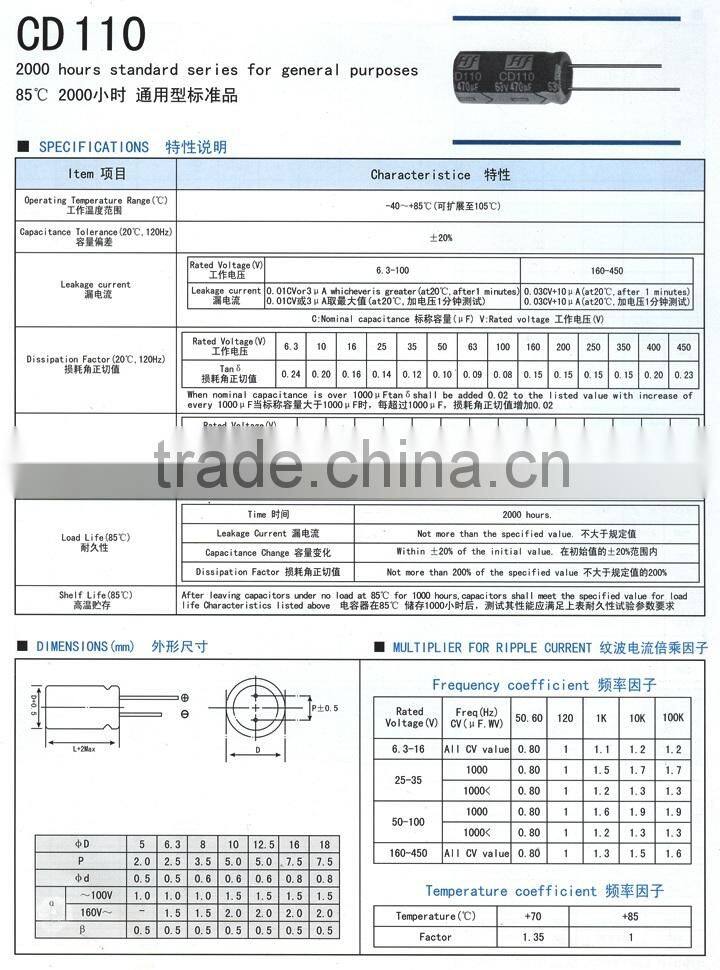

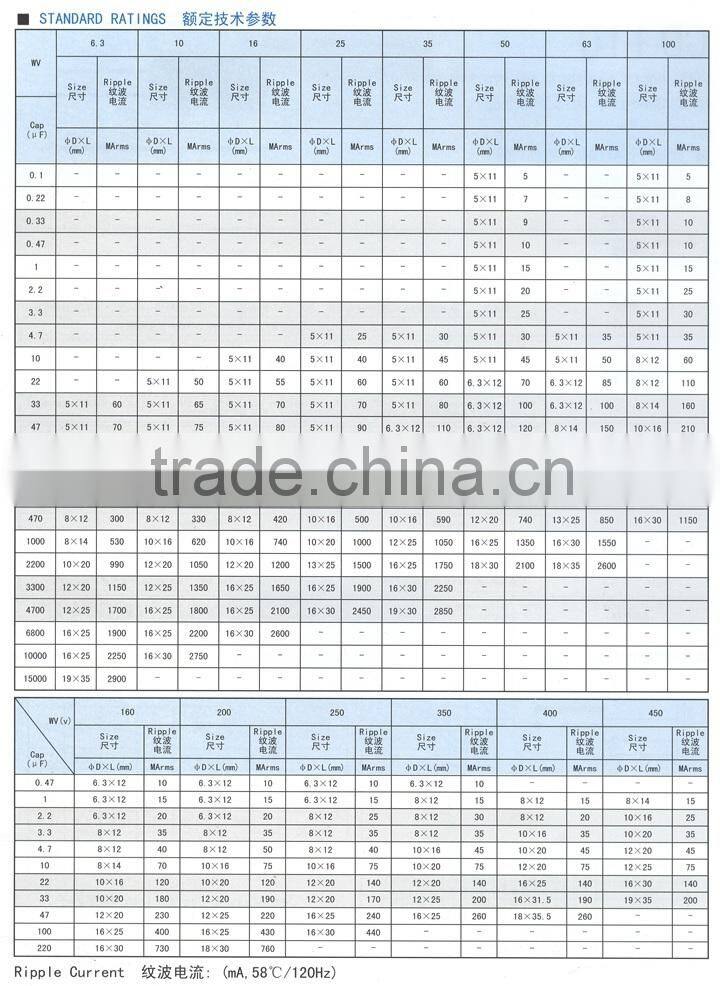

Specifications
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
OEM/ODM Service
We can supply OEM/OEM service and Support, and Techinical Values serivce.
Strict Quality Control
Fully automatic production line
and stric quality Control
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and also we have a very profession sales teams.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
