Programmable Temperature Time Switch

Specifications

Programmable Temperature Time Switch

Brief Introduction

  TM-510C type Programmable Electrical Timer (Temperature) Switch is a power control unit with microcomputer as core in combination with electronic circuits etc. It can be pre-set 8 times different ON/OFF control of a day or a week; it also has functions of temperature automatic control, key-lock and 12/24-hour mode switching. This control unit is provided with a built-in rechargeable nickel and hydrogen battery as its stand by power supply. In case electric power is not available, timing display and the store data can be maintained for more than 9 months.  it can control electrical equipment, installation locations of which are stationary, such as street lamps, lamp cases, electric water heaters, ovens and so on. If it connects in series with AC contactors, it can control high-power electrical equipment and there-phase electrical equipment else. With this control unit, automatic start and shutdown of electrical equipment may be realized upon your requirements.

Features

1. LCD displaying

2. 12/24-hour mode switching

3. Key-lock function

4. Repeat programs with 8 on/off setting and manual over-ride;

5. Rechargeable battery power reserve when electric supply cut off;

6. Time control separately

7. Temperature control separately

8. Time+Temperature control

Programmable Timer Technical Data

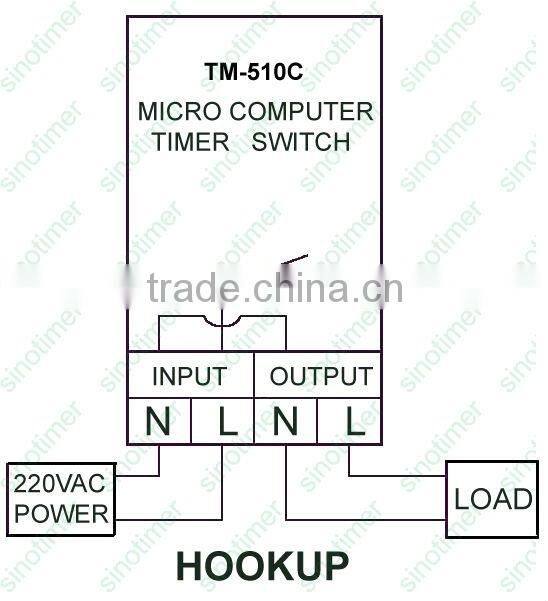

Wire diagram:
