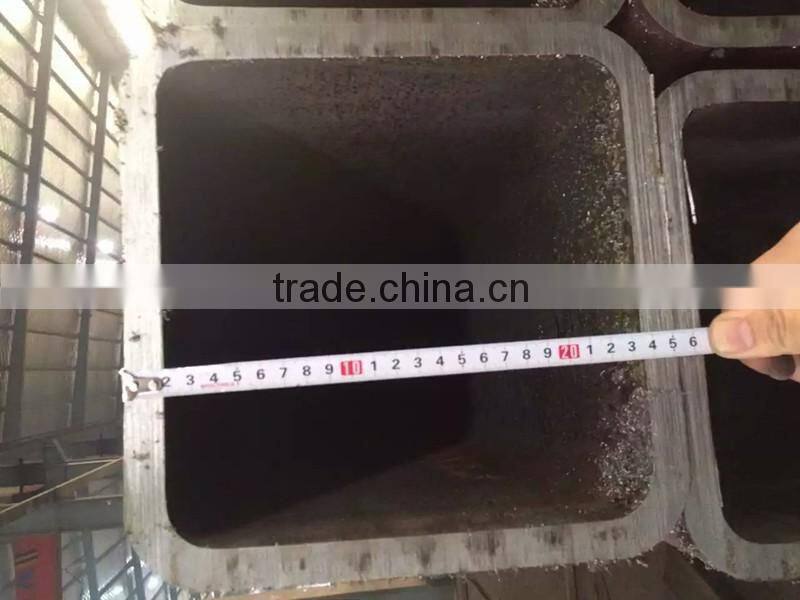

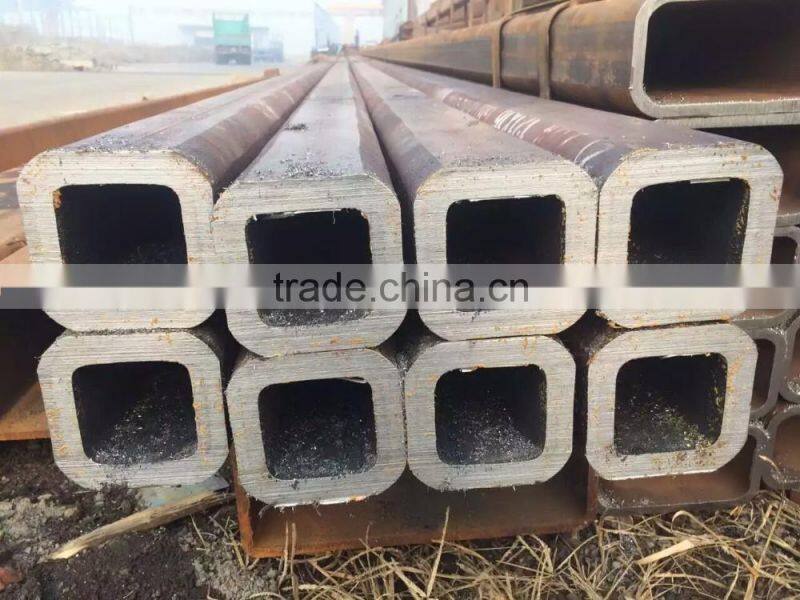

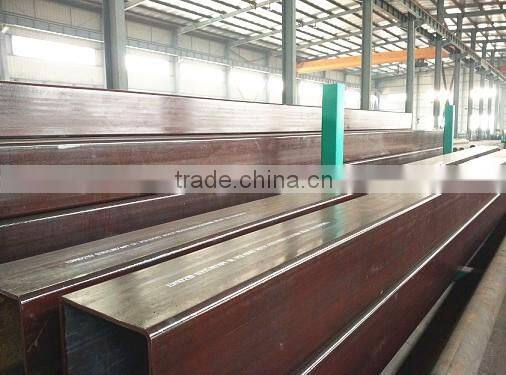

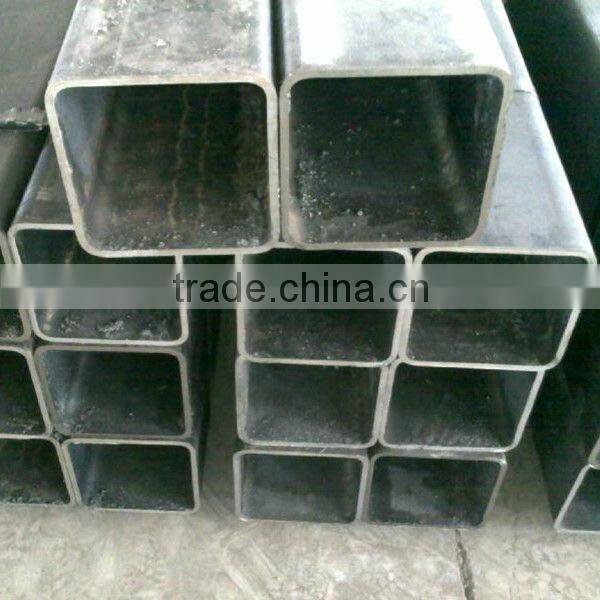

S235/S275/S355 Rectangular Tube

 S235/S275/S355 Rectangular tube

Standard: ASTM A500, ASTM A53, EN 10210 ,EN 10219 ,JIS G 3466 ,BS 1387, BS 6323 ,IS : 1161,IS : 3601,IS : 3074 IS : 4923, DIN 1626, DIN 2394.

Out Diameter:10 *10mm – 500 * 500 mm

Wall Thickness: 0.5mm – 20mm

Length:0.1 – 18 m as per customer’s request

Steel Grade:GB: Q195, Q215, Q235, Q345
ASTM: GR A, GR B, GR C, GR D, DC01, DC03, 1008, 1010
JIS: SS330, SS440, SS490, SPHD, SPHE
EN BS: S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H

End:Square cut, Burr removed

Surface:Lightly oiled, hot dip galvanized, Electro galvanized, Black

Heat Treatment:Bright Annealed, Black Annealed

Usage: Construction, machinery manufacturing, steel construction project, shipbuilding, solar power stents, steel structure engineering, electrical engineering, power plant, agricultural and chemical machinery, glass curtain wall, car chassis, airport, boiler construction, highway railing, housing construction etc.

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips

Delivery: within 30 days

Payment: TT / LC

Mill Test Certificate:EN 10204/3.1B
