rugged android barcode scanner PDA with wifi 3g bt

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

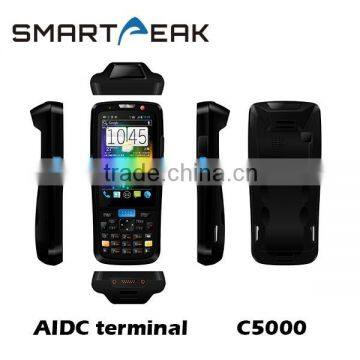

Android handheld data collection device/ terminal with 1D/2D barcode scanner NFC C5000

Physical parameters
Dimensions	164mm72mm32mm(at most)
Weight	275g(battery included)
Opreating Temp.	-20°C~60°
Storage Temp.	-40°C~80°
Relative Humidity	95%(no condensation)
Crash-proof	4 corners and 6 surfaces can undertake 20 times' 1.2-meter level drop test
Tumble Test	tumbles 500 times within DIA 1M
Industrial-grade	IP65
Anti-static	±8KV contact discharge;±12KV air discharge

System Parameters
CPU	Qualcomm MSM8625Q quad-core 1.2GHz
Operating system	Android4.1
Memory	4GBeMMC/1GBDDR2/support 32 GB external memory card at most
Touch Screen	3.7 inches IPS & WVGA(480*800) support 5-point capacitive touch screen KangNing Gorilla Glass
Keypad	28 numeral keys/functional keyboard super abrasion IML overprint keyboard inside the membrane
Battery	lithium polymer battery,3.7V,3300mah/150mah

Functional Configuration
Bar Codes Scanning	one dimensional bar codes scanning/MotorolaSE955(optional) two dimensional bar codes scanning/MotorolaSE4500(optional)
Camera	5M auto focusing
NFC	support ISO14443/ISO15693 standard 13.56MHz RFID identification
Navigation	GPS/A-GPS Beidou second generation navigation module
Indicator Light	charging indicator light scanning indicator light
Audio system	built-in speaker, microphone
Sensor	triaxial gravity sensor

Internet Parameters
Network Type	WCDMA/CDMA/GSM
Network Spectrum	GSM/EDGE:850/1900/900/1800 WCDMA:2100/900 CDMA:800/1900
WLAN	2.4GHz/5GHz dual band WiFi,support IEEE802.11a/b/g/n WEP,WPA,WPA-PSK,WPA-v2.0 safety standards
Voice/Data Service	support China Mobile, China Telecom and China Unicom in mainland China
WPAN	BluetoothV4.0+EDR

External Interface
USB Interface	Micro-USB2.0/OTG
Charge Jack	support 2A quick charge (base required)
Power Supply Jack	support 5V/500ma external power supply
Communication Interface	RS232

Packaging & Shipping

Packaging Details:	Android handheld AIDC terminal with bar code scanner NFC C5000 Package 1* 3300mAh battery 1* USB cable 1* Earphone 1* Power adaptor 1* User Manual 1* Screwdriver
Delivery Detail:	3-5 working days

Our Services

1.Perfect ODM/OEM service.

2.12 month warranty.

3.SDK support.
