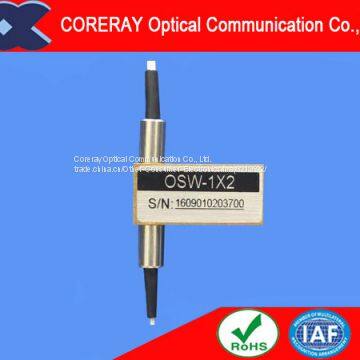

CORERAY D1x2 optical switch with Low Insertion Loss
- 1000 Piece / Pieces per Month
- SHENZHEN
- T/T
- 10 days
You May Like
Product Details
| Brand Name | coreray | Place of Origin | China | |
| Model Number | 02 |
Product Description
D1X2 Optical Switch Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
D1X2 Optical Switch Applications
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
Parameters | OSW-1×2 | |||
Wavelength Range | nm | 650～1310 | 1260～1670 | |
Testing Wavelength | nm | 650/780/850/980/1064/1310 | 1310/1490/1550/1625/1650 | |
Insertion Loss | dB | Typ:0.6,Max:1.0 | Typ:0.5 ,Max:0.8 | |
Return Loss | dB | ≥30 | ≥50 | |
Crosstalk | dB | ≥35 | ≥55 | |
PDL | dB | ≤0.05 | ||
WDL | dB | ≤0.25 | ||
TDL | dB | ≤0.25 | ||
Repeatability | dB | ≤±0.02 | ||
Power supply | v | 3.0 or 5.0 | ||
Lifetime | Cycle | ≥ 107 | ||
Switch Time | ms | ≤8 | ||
Transmission Power | mW | ≤500 | ||
Operation Temperature | ℃ | -40～+85 | ||
Storage Temperature | ℃ | -40～+85 | ||
Weight | g | 16 | ||
Dimension | mm | (L)27×(W)12.6×(H)8.5(±0.2) | ||
Route states
Pins
Optical Path | Electric Drive | Sensor Status | |||||||||||||||
1×2 | 1 | 5 | 6 | 10 | 3－4,7－8 | 2－3,8－9 | |||||||||||
Latching | P1---P2 | N/A | N/A | GND | +5V | OPEN | CLOSE | ||||||||||
P1---P3 | +5V | GND | N/A | N/A | CLOSE | OPEN | |||||||||||
Non-Latching | P1---P2 | N/A | N/A | N/A | N/A | OPEN | CLOSE | ||||||||||
P1---P3 | +5V | N/A | N/A | GND | CLOSE | OPEN | |||||||||||
Electrical parameters
Voltage | Current | Resistor | ||
5V | Latching | 4.5~5.5 | 36~44mA | 125? |
5V | Non-Latching | 4.5~5.5 | 26~32mA | 175? |
3V | Latching | 2.7~3.3 | 54~66mA | 50? |
3V | Non-Latching | 2.7~3.3 | 39~47mA | 70? |
Dimensions
Ordering Information:OSW-1x2-A-B-C-D-E-F-G
A | B | C | D | E | F | G |
Mode | Wavelength | Voltage | Control Model | Fiber Diameter | Fiber Length | Connector |
SM:9/125um M5:50/125um M6:62.5/125um | 85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm | 3:3v 5:5v | L:Latching N:Non-Latching | 25:250um 90:900um 20:2.0mm 30:3.0mm | 05: 0.5m 10: 1.0m 15: 1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
CORERAY Optical Communication Co., Ltd. is a highly professional and fast-developing company for optic components and systems. Our factory is located in beautiful green city, Nanning of China. These years, CORERAY is always devoted to achieve No.1 Service, No.1 Quality and Competitive price for the clients. All CORERAY's products are designed and tested to meet the Standards of Telcordia Compliance. By this time, we have a perfect service system and quality assurance system All components enjoy extremely high stability and reliability.
CORERAY products include Mechanical Optical Switch, PLC Splitter, Coupler, WDM, etc.
Please contact us to get the actual unit price, and also welcome to visit our website.
