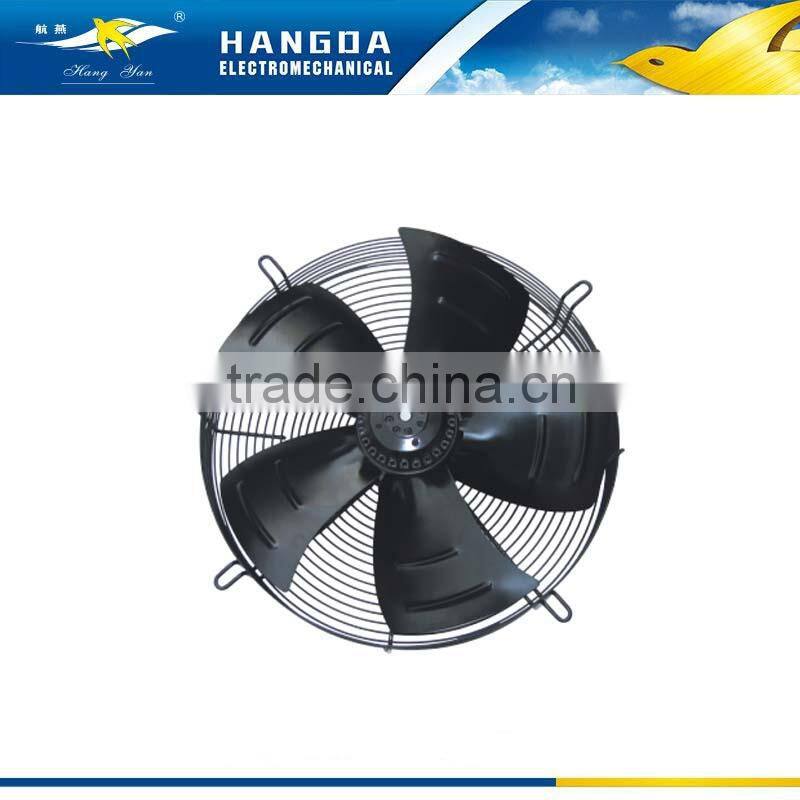

Factory Direct Sale Best Price Axial Fan Blower

1.YWF-External Rotor Axial Fan

2.Motor pole number:2-2poles,4-4poles.6-6poles,8-8poles

3.D:3-phases motor,E-single-phase motor

4.Blade diameter:400-blade diameter is 400mm

5.Wind code:S-induced draft,B-blow

6.Blade number:5-5blades

7.Wind leaf shape:L--falciform,F--aquare type,LT--continuum

8.Fan type:G-pipeline gaotong,A-short barrel,

           Fa-terms of frame short barrel,Fg-aspects box

           Gaotong,W-meshenclosure type.

◊   fan blower Drawing

◊   fan blower Specification

  Our  advantage

Structure: The new outer rotor fan’s impeller is mounted directly on a rotating outer rotor’s excircle , impeller rotates together with the external rotor motor, motor’s main shaft is stationary.

Stability: impeller and external rotor are fasten to the outer rotor’s excircle by soldering or press fitting to form a whole. No secondary assembly errors, greater reliability and stability, less vibration.

Performance: more energy efficient, the national energy efficient products.

Noise: impellers after aerodynamic design again to ensure that the premise of wind capacity, lower noise, high efficiency, energy saving effect is more obvious.

Cooling: The motor is mounted in the middle of the fan impeller, better thermal performance, The motor itself has reached the maximum cooling effect and longer life.

Shape and weight: whole elegant appearance, elaborate design, the fan’s axial length is much shorter, compact structure, saving installation space, the installation more convenient and flexible. Due to optimize the product structure design, small size, lighter weight.

  Our product introduction

Material:

Net: cast iron, surface treatment and powder painting or painting

Air duct: cast iron, surface treatment and powder painting or painting

Material of wind blade: cast iron, surface treatment and powder painting or painting

Bearing: Maintenance-free bearing,L10

Insulation class: “B”“F”

Protection class: IP54

About the product:

Flow direction:suction and blowing

Operate mode: Continuous duty

Installation: Horizontal or vertical installation

Main parts: Case, Impeller, Motor, Protective screening.

Fan Size :200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm

Usage: kitchens, industrial and mining factories and other places with serious oil, soot and dust.

Operating Environment:

Elevation: below 4,000m,

Air humidity: less than 90ºC

Ambient temperature: -25ºC~+60ºC for general products,

Products used in unconventional environment also can be customized.

Feature

1.A new product developed by our company by combining technology and talent advantages of many domestic colleges through repeated research and trail production.

2.The impeller is directly fixed on the outer circle to make axial size smaller. Its successful development is a key breakthrough of axial flow fan and achieves internationally advanced level.

3.Advantage: high efficiency, whole sealing, low noise and vibration, short axial size and maintenance prevention, can replace the conventional axial flow fan.

What is our services ?

1. 100% copper wire

2. 1 year warranty

3. 29 years production experience

4. Compact structure,high capacity and easy installation.

5. It has moisture resistance and can be installed in moist environment.

6. products used in unconventional environment also can be customized.

◊ Company information

Taizhou Hangda Electromechanical Co.,Ltd

1.Founded in 1985, and experienced 20-plus years ups and downs.

2.The company has a team of highly qualified technical staff.

3.The company also carry out technical cooperation with University of Shanghai for Technology and Dalian University Of technology.

4.The products have passed the European CE authentication and the Chinese CCC authentication.

5.The good quality of our products  has won the customer's trusting all over the word.

6.We will make great efforts to provide the high quality product and the good service for the customer

Why choose us?

1. We are a factory focused on fans for more than 25 years.

2, As per your application and requirements, product can be customized to supply .

3, Our sales engineer are here, for your raising question any time.

4, Best production capability, best quality control, best service.

5. Every year 400,000 to 500,000 pieces of external rotor fans were exported to other countries.

◊ Aims:

        1. Cooperation aims: Integrity, Fair,Win-win.

        2. Service aims: Professionalism, Preciseness, Patience

        3. Product aim: High quality, Reasonable price, Customer-oriented.

◊  Missions:

        1. We are the bridge between customers & manufacturers.

        2. To provide more choices for customers.

        3. To help the quality & honest manufacturer to attend products in the world-wide markets and obtain orders.

 Hangyan blower fan Will keep going,

 and hope we will be your best choice!

 ◊ FAQ

Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ

Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.

Q4. Can I change the voltage and frequency ?
Yes, we can make 220v, 50Hz, 110v, 60Hz, 220v and 110v.

Q5. How about MOQ?
100 pcs for carton box.

Q6. What is your main market?
Eastern Europe, Southeast Asia, South America.
