SAK SERIES GROUND TERMINAL BLOCKS
- 200000000 Piece / Pieces per Month
- SHANGHAI/NINGBO
- T/T D/P D/A
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | JINH GROUND TERMINAL BLOCKS | |
Model Number | EK 4/35 GROUND TERMINAL BLOCKS | Number of Contacts | 1 - 10 | |
Conductor Size | Other, 26-10 AWG | Type | Plug-in |
IN CARTONS. for GROUND TERMINAL BLOCKS
Product Description

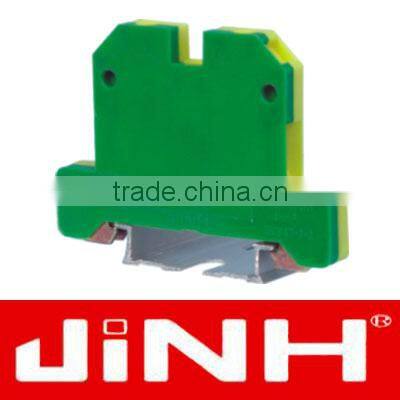

SAK SERIES GROUND TERMINAL BLOCKS
EK 4/35
Technical data
Dimensions
Length: 56mm Width: 7mm Height: 44mm
Rating data
Conductor cross-section, max. 4 mm2
Additional technical data
Colour of insulating material: yellow-green Flammability class UL 94: V-2
Insulating material: PA 66 No. of clamping points per level: 2
Number of levels: 1 Operating temperature range: -50 °C-100 °C
Type of connection: Screw connection Type of mounting: Snap-on
Approvals
CE, ISO9001, CQC
Accessories
JHEW35 End clamp, for assembly on TH35/7.5 DIN rail
TH35/7.5 DIN rail, aluminum, Length: 1m, Width: 35mm, Height: 7.5 mm
SAK-B1 Marking stand, width: 10mm, thickness: 9.5mm
Company Profile

Zhejiang Jinghong Electric Co., Ltd. has been a professional manufacturer of electric accessories for more than 20 years. We pay attention to quality control in all production processes to ensure the good quality of products. Our company carries out normative operation on development, production, sale, finance and personnel management, which enhances the efficient work of our management department. We follow market trends to meet customers' requirements through fully using modern technological information and networks. With strong technical capabilities and excellent inspection equipment, we insist on the tenet of "technology prospering the enterprise", and develop new products. Our company has passed the evaluation of ISO9001:2000 international quality system certification, and three hundred types of our products are manufactured according to IEC60947-1 standards. Our main products are plastic terminal blocks, connectors and cable ties which have attained CE certification. We adhere to the management concept of "innovate with technology, serve with sincerity" to bravely face the challenges of global economic integration. We hope to cooperate with customers from at home and abroad for a splendid future.
