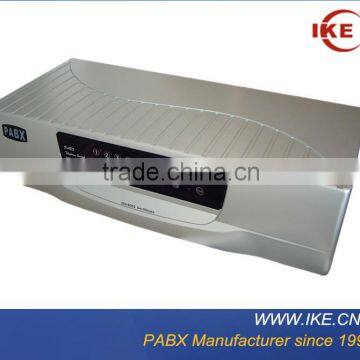

IKE PABX TC-2000B Model up to 128 Extension

IKE PABX TC-2000B model up to 128 extension

Configuration

Minimum capacity: 8 CO line + 16 Extensions

Maximum capacity: 16 CO line + 128 Extensions

There is 8 port in 1 CO line card, and 8 port in Extension card.

Main Functions.

1. Caller ID transferred
2. Auto detect Fax Signal

3. Call on holding

4. Personal account
5. Outward code dialing ( least cost route, can save call fee)
6. Auto add IP code when dial long-distance call
7. Outside ( CO ) Line Duration Time Limit
8. Station lock ( personal password, allows lock your extension)
9. Busy transferred
10. Unconditional Transferred
11. Call Transferred to Secretary
12. Do Not Disturb(DND)
13. Day and Night service
14. Twin routes 3pcs OGM for DISA, total 60 seconds.
15. Party Conference ( between 2 extensions and 1 CO line )
16. Party Conference ( among 3 extensions)
17. Executive busy override
18. Monitor voice record
19. Enable/ disable outside caller reaches extension by one touch dialing
20. Hot line ( Call to operator as soon as lifts handset without any number input )
21. One touch dialing, allows call to operator by one key
22. Outside line ring by turns( allows assign extension ring by turns when has outside call)
23. Allows has maximum of eight extension ringing at the same time
24. Extension outgoing call class
25. Extension free notice
26. Extension number assignable freewill ( 2, 3 or 4 digits)
27. Self-Extension Number Confirmation
28. Various Outside ( CO ) Line Access Mode Selection
29. Make outside call by code ( speed dialing, increase your work efficiency)
30. Remote program, more convenient and easy after service.
31. External music input as holding music
32. Broadcast
33. Pulse and Tone mode setting
34. Polarity Reverse Detection
35. PC Billing function, also can program function by PC, etc.

36. Card expandable structure

37. Built-in internal backup battery

Note: TC-2000BC series can compatible with single line telephone only, if you need key telephone, our TC-2000DK Series PABX and key telephone is ideal choice, thank you.

Weights:
TC-816BC is 7.7kg
CO line card is 0.2kg
Extension card is 0.2kg
Length: 46cm
Width: 19.7cm
Height: 11cm

Inner packing:
Dimensions: 72 x 54 x 40cm

Outer packing:
Cartons
Carton dimensions: 54 x 45 x 36.5cm
Qty/carton: 4pcs
Weight/carton: 15.4kg (TC-816BC)

Telephone exchange(TC-2000BC)
