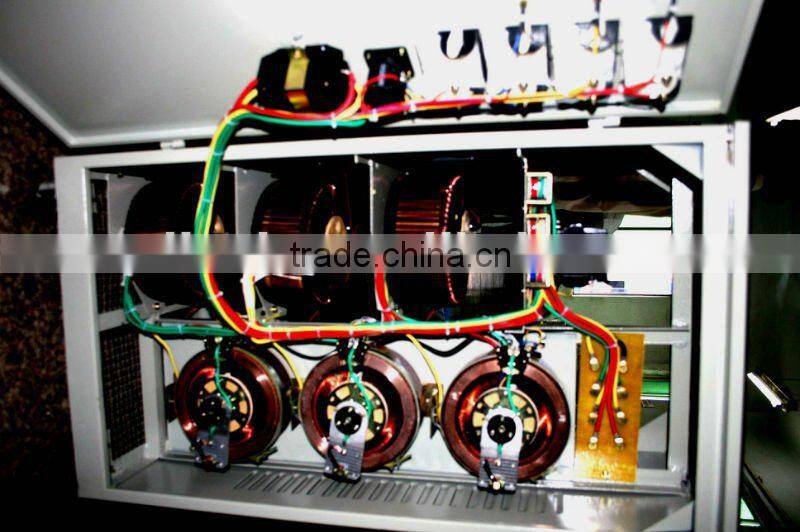

Three Phases Full Automatic Voltage Regulator

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port ningbo shanghai etc.
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	kasan
Model Number	SVC	Usage	SVC
Phase	Three Phase	Current Type	AC

Product Description

Specifications

1.Wide voltage range
2.Input voltage display,output voltage display
3.Output delay time selectable

Specifications:

1)Input voltage:160-270V
2)Output voltage:220 10%
3)Phase:single-phase or three-phase
4)Frequency:50/60HZ
5)Ambient temperature:-5~+40c
6)Ambient humidity:less than 90%
7)Temperature rise(input voltage200v,output voltage 220v and rated load):less than 75°C
8)Insulation resistance:more than 3m at DC 500v

Input	Phase	Three phase
	Voltage	280-430V AC
	Frequency	50HZ/60Hz;
	Adjusting time	< 1s (when input voltage has a change of 10%)
Output	Voltage	380V±3% AC
	Frequency	50/60HZ
	Loading power factor	0.8
Protection	Over Volt.	yes
	Overheating protection	yes
	Over load /short Circuit	yes
	Delay	3~8sec
Efficiency	AC-AC	>90%
Environmental	Operating Temperature	-5°C~+40°C
	Storage Temperature	-10~+50°C
	Humidity	20% to 90%
Others	Waveform distortion	No additional waveform distortion
Others	Insulation resistance	≥3MΩ
