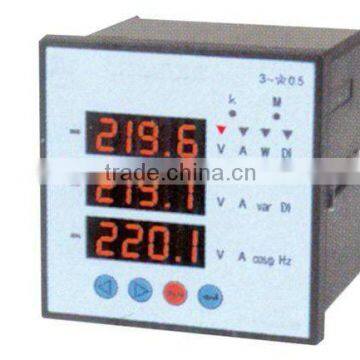

Digital Multifunctional Power Meter Multimeters Power Instruments Rs485 Analysis Meter

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.6000 cuonts display
2.auto power off
3.Data hold
4.Back light

Packaging & Delivery

Packaging Detail:	color box
Delivery Detail:	asap

Specifications

LED digital multimeter
good quality
with RS-485 communication
0-20mA ,4-20mA transmitting output
4DO/4DI

technical data

Accuracy		U,I 0.2 class,P,Q 0.5 class,Active electric energy 0.5 class,Reactive electric energy 2 class
Display		Programmable LED display
Input measurement	Network	Three Phase Three Line, Three Phase Four Line
	Rated value	Voltage:AC 100V,400V;Current:AC 1A,5A
	Overloading	Continuance:1.2 times Instantaneous:Voltage 2 times (10s),Current 10 times (5s)
	Power consumption	Voltage:<1VA(each phase) Current:<0.4VA(each phase)
	Impedance	Voltage>300kΩ Current<20mΩ
	Frequency	50/60Hz±10%
Electric energy measuring	Electric energy	Active and reactive electric energy measuring
Power supply	Working range	AC,DC 80V~270V
Power supply	Power consumption	≤5VA
Output programmable	Analog value	2 or 4 loops transmitting output:4~20mA/0~20mA
	Digital value	RS-485 Interface,MODBUS-RTU protocol
	Pulse output	2 electric energy pulse output,light coupler relay
	Switch value input	4 loops (2 loops) switch value input,dry node point mode (plase refer to the detail)
	Switch value output	4 loops (2 loops) switch value output,light coupler relay (plase refer to the detail)
	Operation condition	Ambient temperature: -10~55°C,relative humidity ≤93%,no corrosive gas,height above sea level≤2500m
	Isolation withstand voltage	Input and power supply>2kV,input and output >2kV, power supply and output>1.5kV
	Insulation resistance	≥100MΩ
