SKSE KSEE Aluminum Alloy Enclosure Switch
Negotiable
/ Piece
100 Pieces(Min. Order)
- Ningbo Shanghai.etc.
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KASAN | |
| Model Number | SKSE,SKEE | Max. Current | 100A | |
| Max. Voltage | 690V | Mechanical Life | 111110 |
Product Description
Specifications

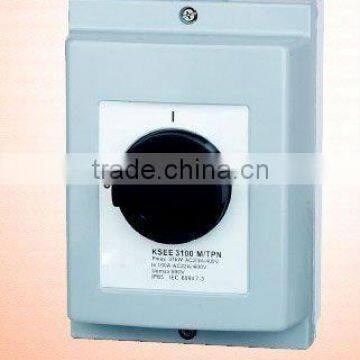

KSE KSEE Weatherproof SwitchAluminum alloy enclosure switch
IEC60947-3 Standard
Ie 100A, Uemax 690V, Pmax 37KW
IP65....
KSE KSEE Weatherproof Switch
Aluminum alloy enclosure switch
Specification
1. Enclosure: Aluminum alloy
2. Cable entries: Metric-threaded holes with menbranegland/sealing plugs(IP54) included. When IP66 degree of protection is requires compression glands must be used. Sealing plugs(IP54) are included.
3. Lockable: Yes
4. Protection degree: IP65
5. Negree of protection: Included
6. Auxiliary contacts: Not included
7. Color: Grey/Black
| Type | Poles | Ie AC 22A | Cable entries M | Terminals(mm2) | Weight(kg/pc) | Pcs/ctn |
| KSE-325M/TPN | 3 | 25 25 16 | 2/25 2/25+1/16 | 4 | 0.55 | 10 |
| KSE-340M/TPN | 3 | 40 32 32 | 2/25 2/25+1/16 | 10 | 0.6 | 10 |
| KSE-440M/TPN | 3 | 40 32 32 | 2/25 2/25+1/16 | 10 | 0.6 | 10 |
| KSE-363M/TPN | 3 | 63 63 63 | 2/32+1/16 1/32 | 16 | 1.25 | 1 |
| KSE-380M/TPN | 3 | 80 80 80 | 2/32+1/16 1/32 | 35 | 1.3 | 1 |
| KSEE-3100M/TPN | 3 | 100 100 100 | 2/32+1/16 1/32 | 70 | 1.5 | 1 |
