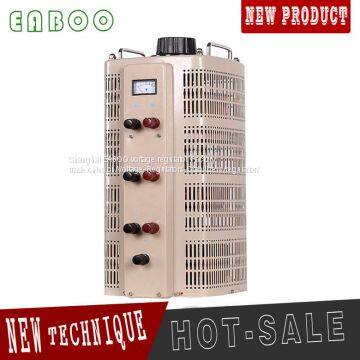

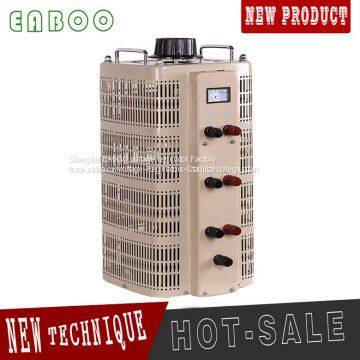

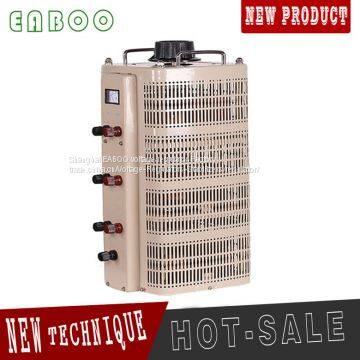

TSGC2-6KVA AC Manual Voltage Regulator

FOB Price

US$ 50 - 200 / Piece

1 Piece(Min. Order)

Port Ningbo
Payment TermsT/T L/C
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	EABOO	Place of Origin	China
Model Number	TSGC2-6KVA	Usage	Other, TSGC2
Phase	Three Phase	Current Type	AC

Product Description

product description

TSGC2 Series Contact Type Voltage Regulator belongs to the Adjustable Variac/Autotransformer structure. The coil wound evenly on the toroidal core, the carbon brush holder installed in the spindle, under the pressure of spring, the carbon brush contacts the coil surface closely. Adjusting the spindle to drive the carbon brush holder to make the carbon brush move on the coil surface and change the carbon brush contact position, that is to say, changing the variac primary and secondary winding turns ratio, which make the output voltage smoothly adjust with the adjustable range. TSGC2 series three phase is composed by 3 pieces TDGC2 series single phase via Wye connection.

Technical Parameters

Capacity/Power	1500VA-60KVA (Other power can be customized)
Input Voltage	380VAC (Other voltage can be customized)
Output Voltage	0-430VAC (Other range can be customized)
Max. Output Current	Power in KVA1000/(Max. Output Voltage1.732)
Working Frequency	50Hz/60Hz±5%
Efficiency	≥98%
Waveform Distortion	No
Ambient Temperature	-15°C to +45°C
Altitude	≤1000m
Relative Humidity	≤95%
Insulation Class	F
Temperature Rise	<60℃
Dielectric Strength	No damage at 2000V for 1 minute
Insulation Resistance	≥2MΩ
Display	Analogue Meter (Optional: LED or LCD Screen)
Installation	Indoor and floor mounted
Protection Degree (IP Rating)	IP20
Cooling-down Method	Dry type air cooled
