Overview of  Culvert pipe application and culvert concrete pipe making machine/production equipment

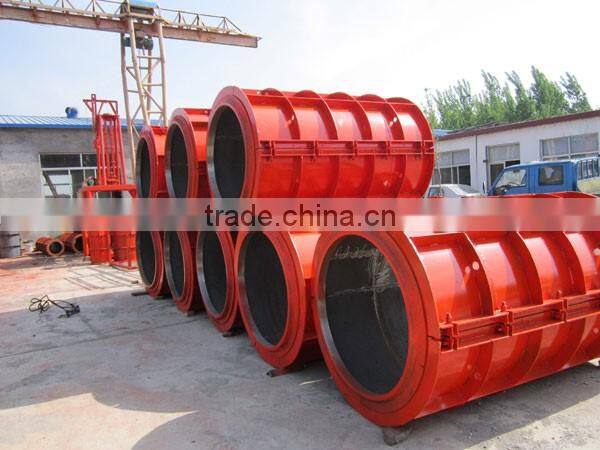

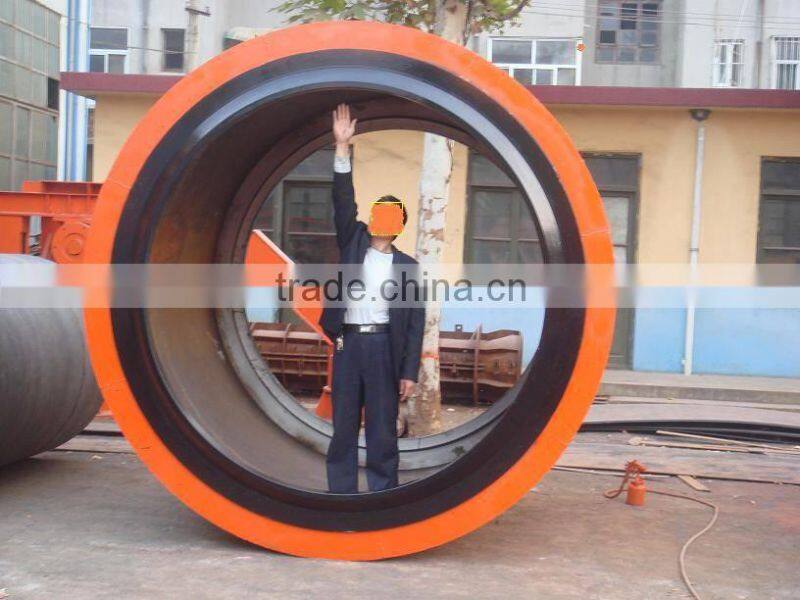

Concrete  pipe mould is a drainage steel mold with rigid joint, when running on the centrifugal spinning machine , it rotates rely on the friction force made by the roller and steel mold. Under the action of centrifugal force ,the concrete will be distributed to the inner of mold equally to form reinforced concrete pipe, it is a simple but useful concrete machine.

Production process:

When produce concrete pipes with different specification, it just needs a relevant mold to ensure the product same.
The machine can be installed underground, it has advantage of small voice, no pollution , safe and reliable.

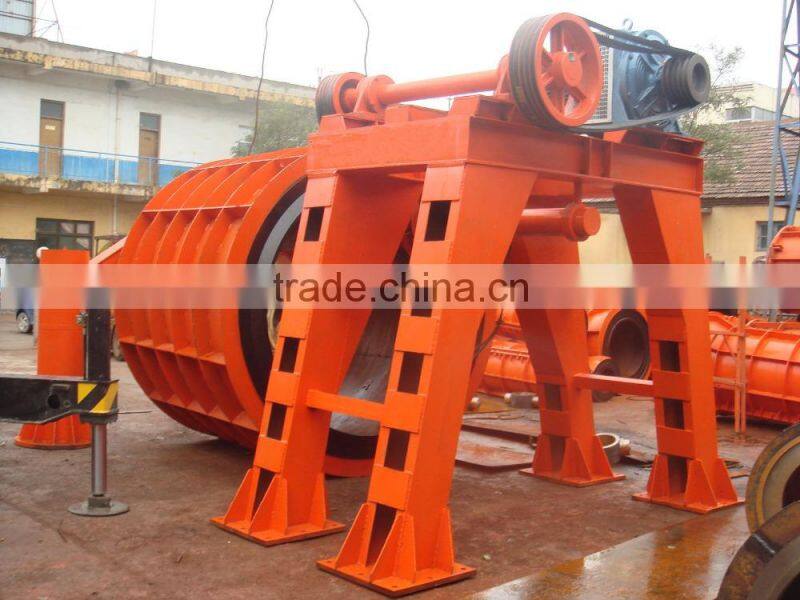

Suspension roller concrete pipe machine apply to concrete pipes with small diameter, it has advantage of saving cost, high productivity.

1 Avoiding the mold fly away the machine in spinning process

2 Avoiding the machine move to one side

 Moving to one side is one reason of flying away, even if it does not make the mold fly away,it will damage the circle of the running wheel and running laps after a long time of moving to one side.It is necessary to solve this problem to avoid the accident.

3.The shafts have to be parallel and have a same height when installation.

4.The cement paste will flow to the bearing when the spinning machine working ,which makes the bearing wear or heated,so the sealing of bearing is important.

Working Principle

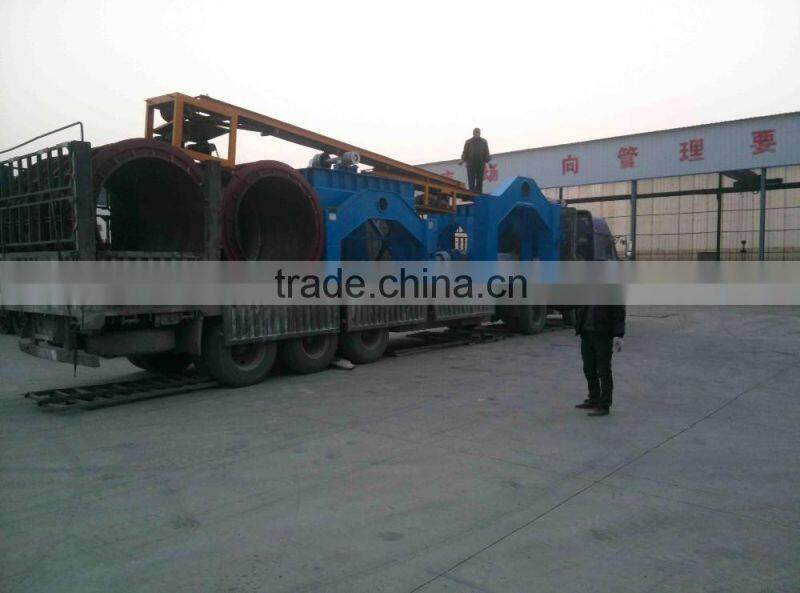

Different Machines with Different Package,  Plastic and Thick Paper,  Wooden Box or as the suctomer's request

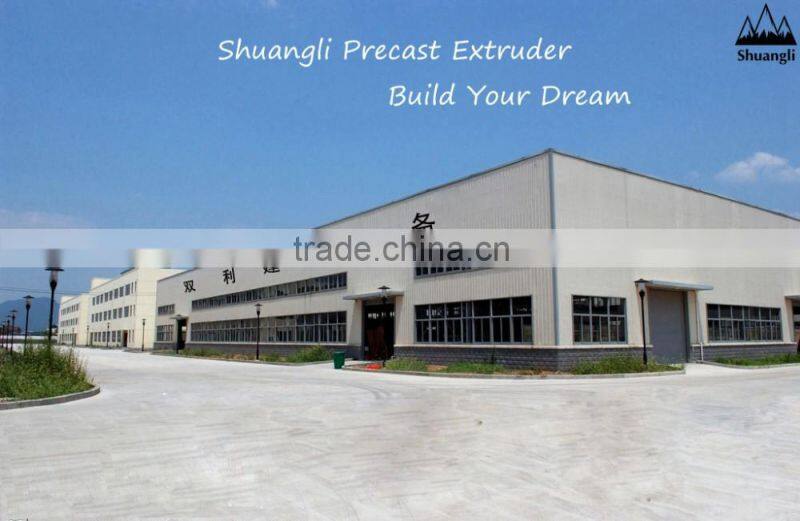

      Ningjin County Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at the west of Ningjin County, on the 324 provincial highway.

Culvert pipe application and culvert concrete pipe making machine/production equipment is ideal equipment for the production of concrete tubes ,it is reasonable in design ,more reliable in running and more convenient in operating.

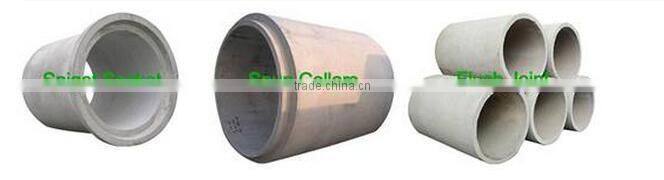

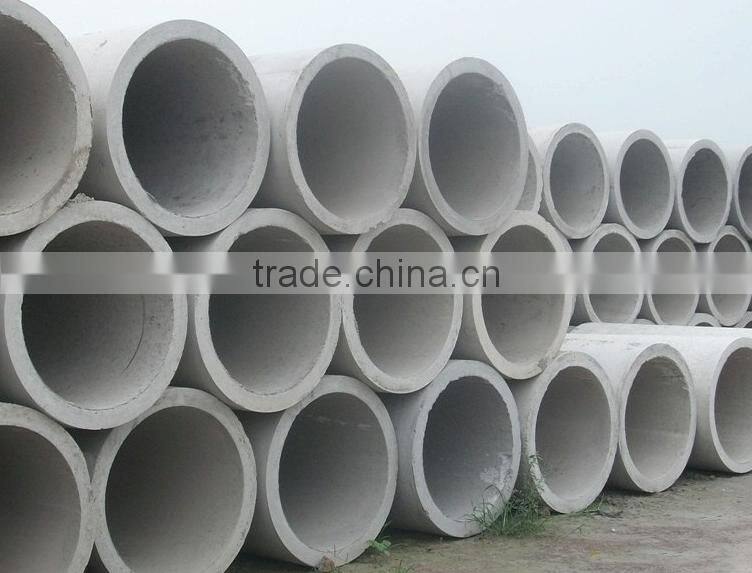

It completely meets the state standards of GB 11836-89, with river sands ,gravels stone chips or pulverized coal ash , slag, et, pulsing Some suitable quantity of cement as raw materials ,the machine can produce different kinds of tubes ,such as joint tubes socket tubes, etc ,with different diameter specifications from 150mm to 800mm,all the tubes produced by this machine are characterized by even wall thickness, smooth inner wall, good resistance to leaking .

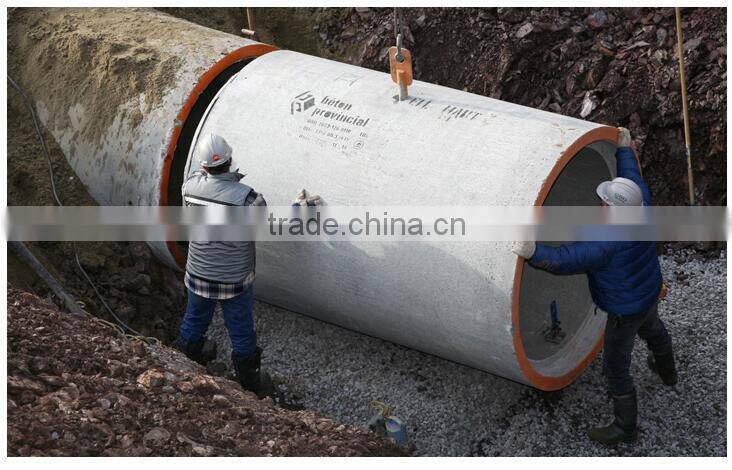

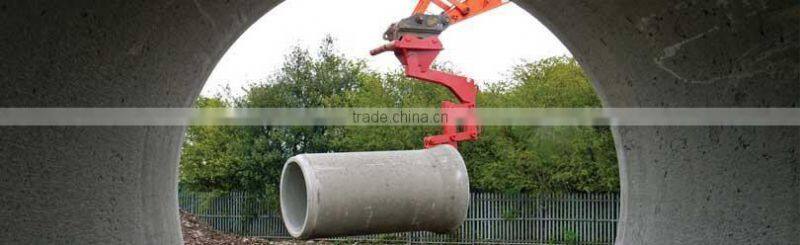

High compression strength ,lower cost, excellent reliability in connecting ,convenience in construction and better efficiency in production ,and also ,the products ,can be given curing immediately after molding, these tubes can be widely used in the projects of agricultural irrigations ,water draining in cities.

             We are professional

1.FOB Qingdao Port China.

2.Payment:30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
3.Delivery time: 20 days after receipt of deposit and moulds confirmation from Buyer.
4.Gurantee Period: One year after installation finished at buyer's factory.
5.The above price includes one mould for free, extra moulds should be paid according to design.
6.The video is available to send to you,pls contact me.
