Home > Products > Concrete Beam Extruder > Machines Prefab House Hollow Column
Machines Prefab House Hollow Column
- Qingdao & Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Building Materials Machinery | |
| Automatic Grade | Automatic | Production Capacity | 1.6m/min | |
| Place of Origin | Shandong, China | Brand Name | Ling-Feng | |
| Model Number | SL 120*120*4 | Voltage | 380V/50HZ | |
| Power(W) | 7.5KW | Dimension(L*W*H) | 2.0m*1.0m*1.0m | |
| Weight | 1.5t | Features | Prestressed | |
| Certification | ISO9001 | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Usually, wooden case package for the machines prefab house hollow column
Product Description
machines prefab house hollow column
machines prefab house hollow column
is our special developed products as results of our engineers research, with which 60% steel material will be saved compared with traditional revolving die method. Efficiency can be improved 3 to 5 times compared with conical diemethod, these machine are easy for operation and convenient for maintenance, products from these machines are in good quality, smooth appearance and accurate in size.
Available Models of precast prestressed concrete column making machine
Model no. | No. of holes | Diameter | number and diameter of wires | Electric motor power (kw) | Vibrator Motor Power (kw) | Total Power (kw) | Molding Speed (m/min) | Overall dimension (mm) | Weight(kg) |
80X100X5 | 1 | 30 | 6/5 | 4 | 1.5 | 5.5 | 1.3-1.5 | 2250×900×850 | 1000 |
80X100X4 | 1 | 30 | 8/5 | 4 | 1.5 | 5.5 | 1.3-1.5 | 2250×850×850 | 950 |
100X100X4 | 1 | 35 | 8/5 | 4 | 1.5 | 5.5 | 1.3-1.5 | 2250×850×850 | 980 |
120X120X4 | 1 | 42 | 5/4 | 4 | 2.2 | 6.2 | 1.3-1.5 | 2250×850×900 | 1000 |
Available Models of precast prestressed concrete lintel beam making machine
Model no. | No. of holes | Diameter (mm) | number and diameter of wires | Total Power (kw) | Molding Speed (m/min) | Overall dimension (mm) | Weight (kg) |
220*240 | 1 | 80 | 22/5 | 6.2 | 1.3-1.5 | 2250×900×900 | 1000 |
120*240*2 | 2 | 65 | /5 | 8.5 | 1.3-1.5 | 2250×900×900 | 1300 |
180*240 | 1 | 80 | 24/5 | 4.5 | 1.3-1.5 | 2250×800×850 | 950 |
120*370 | 1 | 65 | 10/4 | 5.5 | 1.3-1.5 | 2250×1450×850 | 2100 |

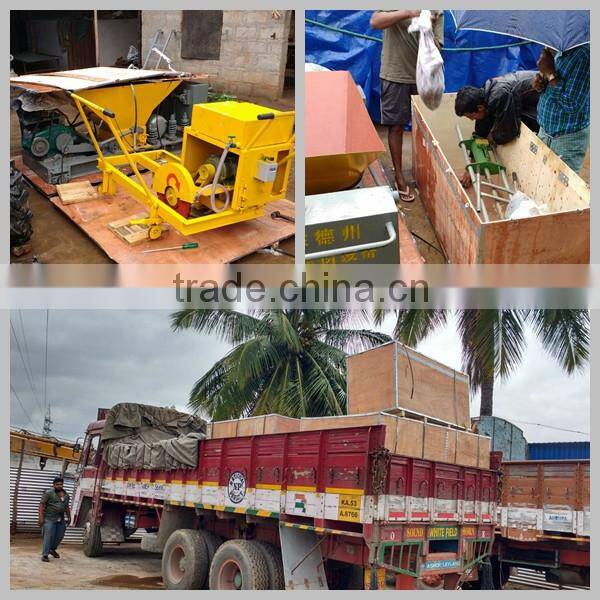

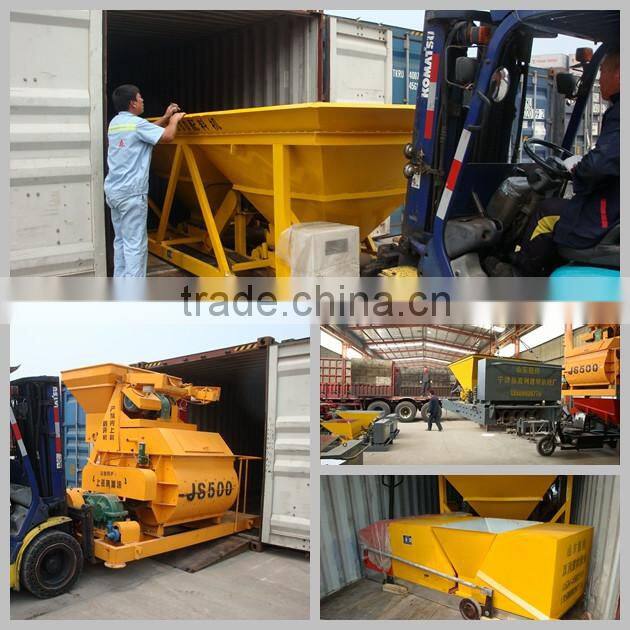

Packing & Shipping of machines prefab house hollow column
1. Quick & Free spare parts
2. 1 year global warranty for the equipment, low cost maintenance.
3. Free traning for end users at local plant
4. Customizable with sizes and colors, OEM available
Ningjin County Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at Ningjin County, Shandong Province,China.
1.Our products have a particularly good reputation in more than a dozen provinces and cities nationwide. The export has been increasing recent years, including India, Russia, Myanmar, Uzbekistan, etc.
2.We provide the stability of product quality, timely delivery, excellent after sale service, followed by customers’ trust, wide market and good reputation.
1. When did your company established?
Shuangli Building Materials Equipment Co., Ltd is established in the year 1995.
2. Where is your company location?
Our factory is located in Dezhou city, ShanDong province, China.
You can take plane to Jinan Airport, in which we'll pick you up from.
3. What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail.
Generally, 30% prepaid and the rest 70% should be paid before shipping.
4.What are you main products?
Mainly products for precast concrete hollow core slab machine, lightweight wall panel making machine, purline/lintel/column machine, H beam/T beam, slab cutting machine, feeding dumper, tensioning machine, concrete mixer and concrete batching plant, steel wire tension machine, etc.
The Most Professional Supplier Contact
Company Profile
Location---Ningjin county Shuangli Building Materials Machinery Factory was founded in 2005, locates in Dezhou, Shandong, China. Strength---We have plenty of professional workers and over 20 years manufacturing experience, which make sure our products are easy to operate, and extremely durable.We offer our customers 100% reliable quality and lifelong warrenty. Variety ---We provide nearly 40 kinds of Hollow Core Slab Making Machine,which is the best of nothern China. We also produce all kinds of Hollow Core Slab Forming Machine, Concrete Column Machine, Lightweight Wall Panel Making Machine, Concrete Panel Machine, Concrete Mixer, Concrete Lintel/ purline/ column machine, etc. Principle of Operation---The work method of our machine is pushing and vibration. Use of Machines---Cement Products can be used to build civil houses and low-rise building construction. Sales History--- Our machines have been sold to over 20 provinces in China and exported to over 20 countries such as Bangladesh, Nigeria, Malaysia, India, Russia, Myanmar, Iraq, etc. Reputation---We were rewarded with the Utility Model Patent Certificate, and appraised as the Honest Enterprise. Services--- Different kinds of concrete prefabricated construction material machine can be manufacturered here according to customers' special requirements. We could also provide you with Lifetime Warranty.
