15 Inch LED Strip Kit 325mm for Monitor Screen
- shanghai/shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | zy | |
| Model Number | ZY-LED-BackL | Principle | Other, LED | |
| Shape | Straight |
Product Description
15 inch LED strip kit 325mm for Monitor screen
Free shipping 15" 325mm Adjustable brightness led backlight strip kit,Update 15inch square/standard LCD CCFL to LED backlight
input:DC 10-30v
LED strip size:325*4mm
Package:
2x LED strip

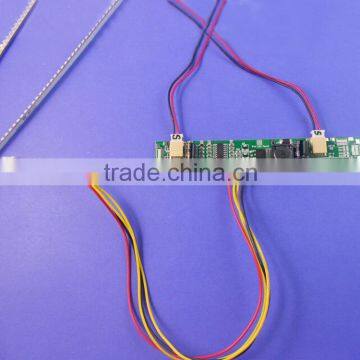

1x converter
1x connection cable
we also can suppy you matched driver
Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;
If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),
and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting
the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive
electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect
with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,
In the original high-pressure front to take power
VIN : voltage
ENA: on/off
DIM: ADJ adjust brightness
GND: connecting Ground
Now we also have LED proucts to replace this ccfl backlight
