Product Details

Place of Origin	Shanghai, China		Brand Name	SENCO
Model Number	20L MultiFunctional Reactor

Product Description

Specifications

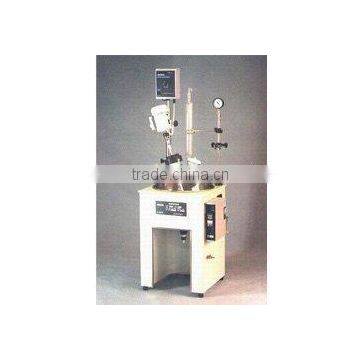

F20H2A Multifunctional Reactor-SENCO
-Capacity: 20L
-Features: Integrated Reaction Flask, Incline Stereo Stir, Heating System

20L SENCO MultiFunctional Reactor
Reaction Vessel: 20L, 5(+1) neck reaction flask; Heating System: 180C oil bath imbeded; Vacuum Rate: <399pa Opr. Temp.: -70C~200C Function included: - Standard: Stirring, Reflux Condensing, Charging, Temp. Measuring, and Multi-functional Wide Opening; - Optional: Distillation, Rectification, Dripping, Cooling, Separation, Sampling, Bi-directional Stir, etc.; Features: - Applies SENCO patent technology -- Inclined Stereo-Stir System, brings you outstanding stirring effect. - Reaction flask equips SENCO no-dead angle PTFE discharging valve. All reactant is able to join reaction process with no pollution. - Good and durable sealing performance, is easy to be assembled, disassembled and maintained. Few wearing parts need to be replaced.

		Standard Model	F20H	F20H2A	F20H2B
Parameters	1	Reaction Flask (L)	20L	20L,Bottom Discharge	20L,Bottom Discharge
	2	Neck No. of Reaction Flask	5	5+1	7+1
	3	Rotation Speed (rpm)	40-720	40-720	40-720
	4	Toque (Ncm)	160	160	160
	5	Bath Power (kW)	3kW	3kW	2kW
	6	Static Temp. Control Range & Wave (°C)	0-180 ±0.2	0-180 ±0.2	0-180 ±0.2
	7	Bath Size, Capacity, Material	Ø45x27, 40L, SUS304	Ø45x27, 40L, SUS304	Ø45x27, 40L, SUS304
	8	Power	220V, 20A	220V, 20A	220V, 12A
	9	Dimensions (cm)	60x53x160H	60x53x160H	60x60x160H
Configurations	10	Frequency Conversion Speed Control	- Y -	- Y -	- Y -
	11	Digital Display	Bath Temp., Rotation Speed	Bath Temp., Rotation Speed	Bath Temp., Rotation Speed
	12	PTFE Seal Assembly	- Y -	- Y -	- Y -
	13	Bottom Discharge	/	- Y -	- Y -
	14	PTFE Flush Type Discharge Valve	/	- Y -	- Y -
	15	Charging Valve	- Y -	- Y -	- Y -
	16	Temp. Measure Neck	- Y -	- Y -	- Y -
	17	Vacuum Meter *	- Y -	- Y -	- Y -
	18	Inclined Stereo Stir	- Y -	- Y -	- Y -
	19	Auto CW/CCW Stir *	- O -	- O -	- O -
	20	Bath Drain	- Y -	- Y -	- Y -
	21	Multi-functional Wide Neck (F120)	- Y -	- Y -	- Y -
	22	Wide Neck Extension Cap (B24x3)	- O -	- O -	- Y -
	23	Wide Neck Cap Holder	- O -	- O -	- Y -
	24	Reflux Condensing	- Y -	- Y -	- Y -
	25	Distillation Receiving *	- O -	- O -	- O -
	26	Liquid Separation *	- O -	- O -	- O -
	27	Rectification-Receiving *	- O -	- O -	- O -
	28	Drip System (5L)	- O -	- O -	- O -
	29	Drip Set (0.1~1L)	- O -	- O -	1L
	30	Cooling Coil *	- O -	- O -	- O -
	31	Bath Cap	- O -	- O -	- O -
	32	Sampling Bottle	/	- O -	- O -
	33	Low Speed Power Stir *	- O -	- O -	- O -
	34	Underlay Base (20cm)	/	- O -	- O -
	35	Lockable Wheels (8cm) *	- O -	- O -	- Y -
	36	Bath Liquid Stir *	- O -	- O -	- Y -
	37	Bath Heat Isulation *	- O -	- O -	- Y -
Safety Features	36	Over-current Protection	- Y -	- Y -	- Y -
	37	No-spark Electronic Control	- Y -	- Y -	- Y -
	38	Independent Overheat Cut-off	/	/	- Y -
	39	Dry Heating Protection	/	/	- Y -
	40	Ex-proof / Air driven Motor *	Available for discussion	Available for discussion	Available for discussion
Symbol Instruction: - Y - (Equipped), - O - (Optional), - / - (N/A) ( * - Only available when ordering of product, not for separate sale)
SENCO is a reputed top brand among Chinese Suppliers in Rotary Evaporators and Reactors. She is professional in D&E, Manufacturing and Oversea Customer Support. It is a technology oriented company with professor and engineering team who have developed quite some patented unique technologies and designs which make SENCO products featured in Safe, Durable and Efficient. Hope you will have chance to try our services, products, to work with our people. A different experience-- Simple & Relex

SENCO Reactor, Glass Reactor, Oil Bath, High Vacuum, 50L, 20L, Integrative Reaction Flask, PTFE Bottom Discharge, Incline Stereo Stir, Frequency Conversion Stir, Multi-Func. Wide Opening, Auto Bi-directional Stir (CCW)
