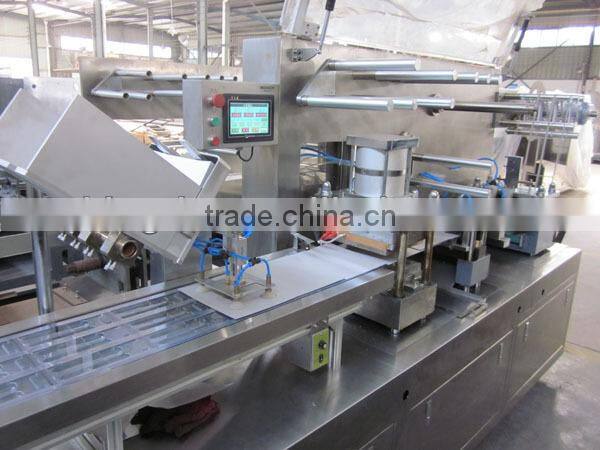

Multifunction Papercard Blister Packing Machinery for Commodity
- Ningbo/Shanghai
- T/T
You May Like
-
Papercard Plastic Blister Packing Machine for Battery/toothbrush/pen
-
Fully Automatic High Quality High Capacity Battery Packing Machine
-
Stable Running Battery Packing Machine
-
Fully Autoamtic Toothbrush /battery/stationery Blister Card Heat Sealing Machine
-
Automatic Blister Paper Card Packing Machine for Battery/toothbrush/etc
-
Full-automatic Paper Card Type Multi-functional Toothbrush Packaging Machine
Product Details
| Condition | New | Application | Commodity | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 50HZ | Power | 9.5KW | |
| Place of Origin | Zhejiang, China | Brand Name | JINDE | |
| Model Number | JD-350M | Dimension(L*W*H) | 5300x1000x1900mm | |
| Weight | 3500kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
packing machine for commodity1. CE, GMP
2. PLC control
3. Double program
4. Easy Changeover
packing machine for commodity
PLC control Papercard Plastic blister packing machine for Commodity
Usuage:
Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.
For example :
the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output
Main Technical Parameter
Punching Frequency | 20time/min |
Adjustable Scope of Travel | 30-210 mm |
Max Forming Depth | 35-43mm |
Max Forming Area | 340x220 mm |
Total Power | 380V 50Hz 5.5Kw |
Specificationa of Packing Material(PVC) | 350x0.25(0.15~0.50mm) |
Specificationa of Packing Material(PTP) | 350x0.02mm |
Air-compressor | More Than 0.22m3/min |
Pressure | 0.5~0.7Mpa |
Machinery Dimension | 5300x1000x1900mm |
Weight | 3500Kg |
Some Part of this Machine:

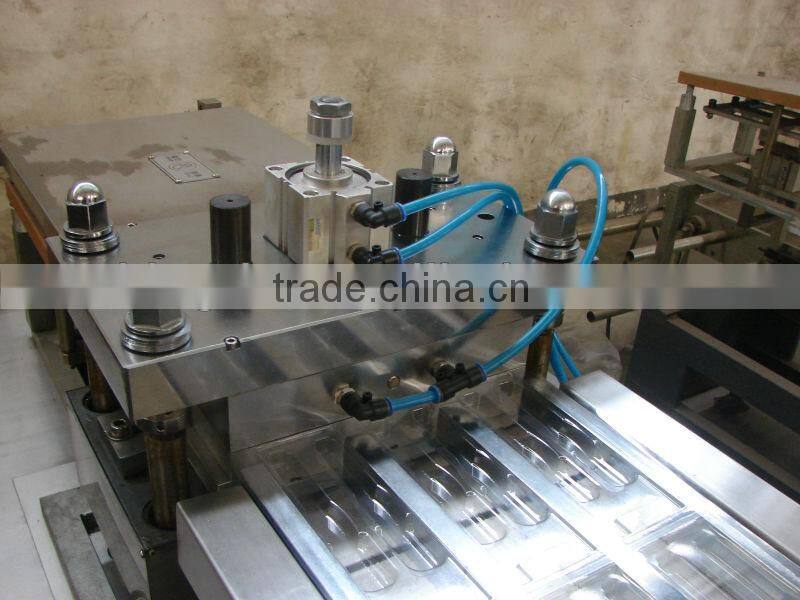

Blister forming

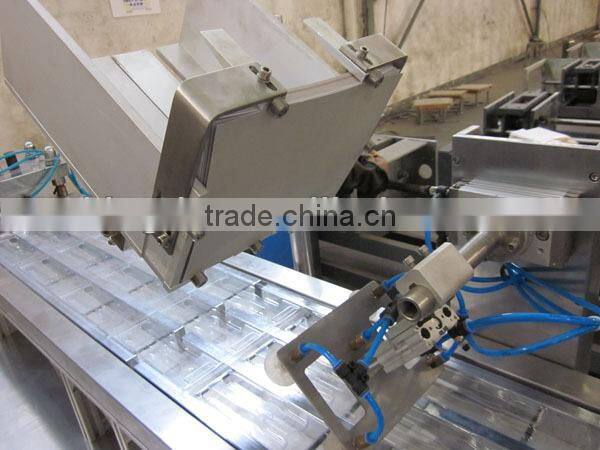

Suck paper

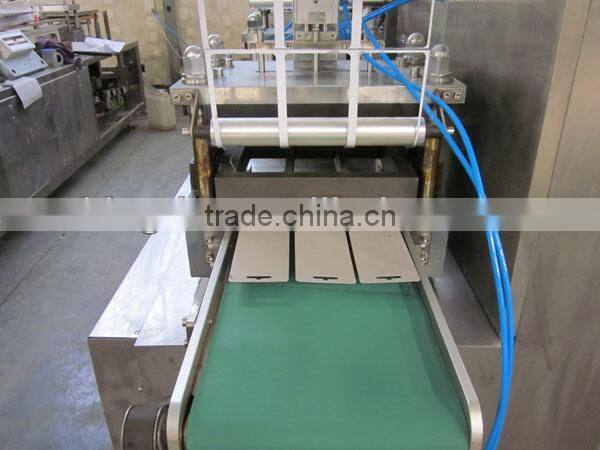

Output

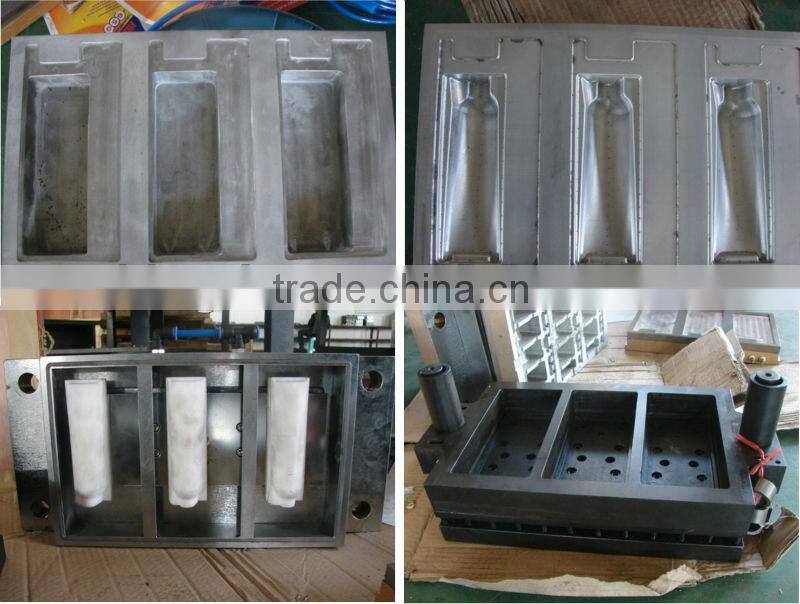

Mould
Samples
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
