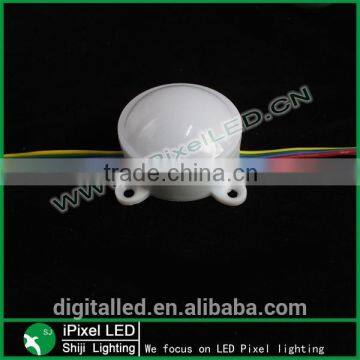

RGB Led Pixel Module WS2801 Arduino

Specifications

RGB led pixel module WS2801 Arduino

Features:

1)programmable by software

2)3 pcs RGB SMD leds

3)20pcs per string,8cm space between each Pixel

4)customized wire length is available

Specification:

Description:

1.RGB Pixels are digitally-controllable light so you can set to any color or animate

2.The pixels are connected by a 4-conductor cable.+12V(Red),Ground(Yellow),Data(Green),Clock(Blue).Or we can tailor-make the color of cable for you .Data is shifted down from one pixel to the next so that you can easliy cut the strand or attach more onto the end

3.Sold by strand,each strand has 20 pixels in series. Each strand has two 4-pin connectors so you can  connect multiple strands in a row,as many as you wish,just watch for how much current they want

4.  Relative Controller: T-1000S controller support WS2801; when use DMX decorder, can connect to DMX system

5.  Support online control

6. Can be used as flexible led display screen to show image and video

Detailed Images:

 Signal Cables Define:

Installation Notice:

1)  Make sure the connection is correct according to the diagram

2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value

Application:

1.outdoor sign solution

2.night club

3.advertsing screen

Packaging Pictures:

Service:

Shipment:

1.Goods will be delivered within 3-5  working days   after the payment received

2.We ship item via Door to Door service express or air and sea.

Waranty:

1.All products we sell are in good quality and have been tested before they are shipped out.

2.We offer 2 years Warranty .

Certificates:

Our compamy:

ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of  sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near  ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.



If any question,please feel free to contact us.Thank you.
