Weatherproof Dotstar Apa102c 60 Black Pcb Smd 5050 Rgb Led Strip 5v

<h2>weatherproof dotstar apa102c 60 black pcb smd 5050 rgb led strip 5v</h2>

SPECIFICATIONS:

• Lighting sources: 5050 SMD RGB LED
• Constant current design
• PCB output voltage: 5V DC
• LED quantity: 60LEDs per meter
• IC chip:APA102
• Color: Full color
• IP65/IP20 waterproof are available
• Working/storage temperature: -40 to 40°C
• Black PCB/White PCB available
• waterproof apa102 5050smd 5v 60led/m RGB black pcb with 5v CI DI GND

Features and Benefits:
- Control IC included, supporting numerous Color-change effects;
- Pcontrol by SD controller,Arduino,DMX512,Artnet
- Flexible PCB 5V low voltage input;
- P CB Color: White & Black available for choose
- Absolutely addressable ,each IC built inside RGB LED
- 5M per roll,Customer’s size available also
The non-waterproof version strip attached white color
3M tape on back side of PCB but the waterproof version only included 10pcs silicon clips and screw for
installation use (without 3M tape)each LED cut-able

PICTURES of black pcb and white pcb apa 102 rgb led pixel strip lighting

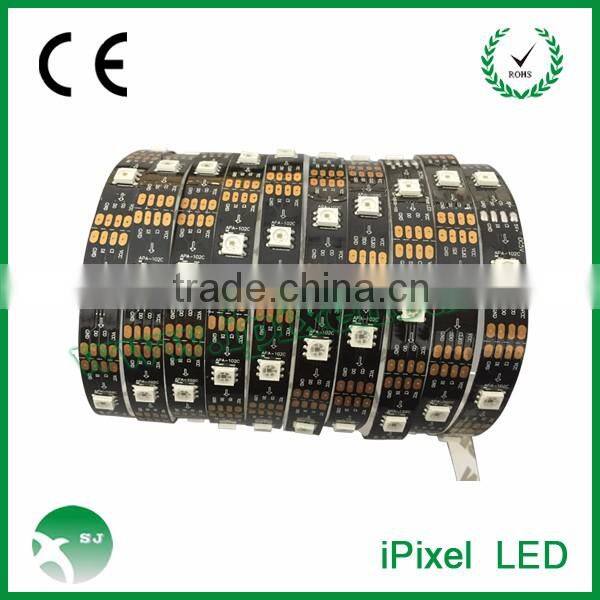

Black pcb of apa102c rgb led strip :

APPLICATION of black pcb and white pcb apa 102 rgb led pixel strip lighting

The excellent light and user-friendly designs make LED strip perfect for numerous applications, i.e cove
lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.

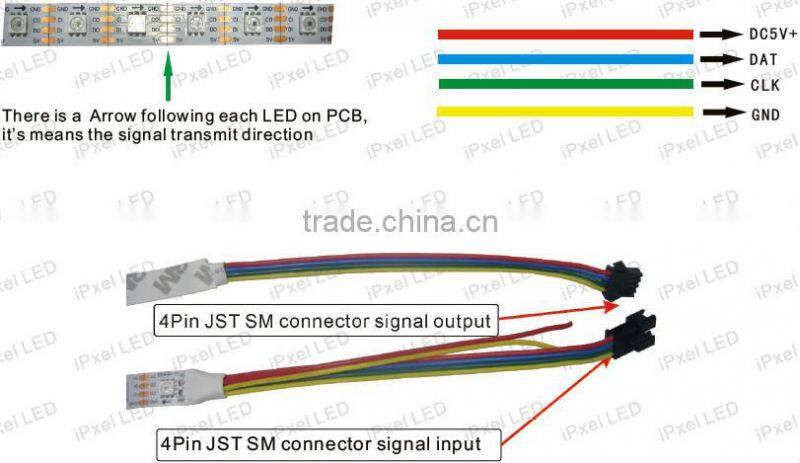

Connector of black pcb and white pcb apa 102 rgb led pixel strip lighting

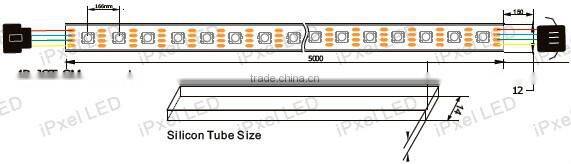

Demmension of black pcb and white pcb apa 102 rgb led pixel strip lighting

PACKAGE of black pcb and white pcb apa 102 rgb led pixel strip lighting

Certification:

OUR COMPANY:

 ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of  sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near  ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.

If any question,please feel free to contact us.Thank you.
