Home > Products > HYDROPHOBIC GLASS WOOL > Glass Wool Fire Rated Sandwich Panel/ Fireproof Insulation Board and Blanket
Glass Wool Fire Rated Sandwich Panel/ Fireproof Insulation Board and Blanket
- Tianjin xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Huamei | |
| Model Number | Glass Wool |
Product Description
Glass Wool fire rated sandwich panel/ fireproof insulation board and blanket
Main specification:
Product | Length(mm) | Width(Diameter)(mm) | Thickness(mm) | Density(kg/m3) |
Boards | 1200-2400 | 600-1200 | 20-100 | 24-96 |
Blanket | 11000,20000 | 1200 | 25-150 | 12,16,20,24,32,40,48 |
Batt | 1160-1200 | 410-610 | 100-200 | 10-48 |

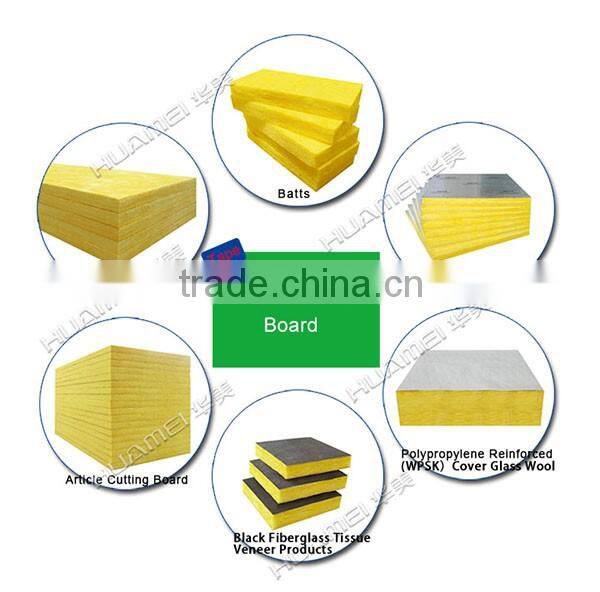

1. Different terms of Glass Wool Insulation
- plain glass wool blanket / glass wool board
- glass wool blanket /board with Aluminum foil -clad
- formaldehyde-free glass wool heat insulation
- glass wool with white pvc / glass wool board with black tisssue
- Colorful glass wool heat insulation

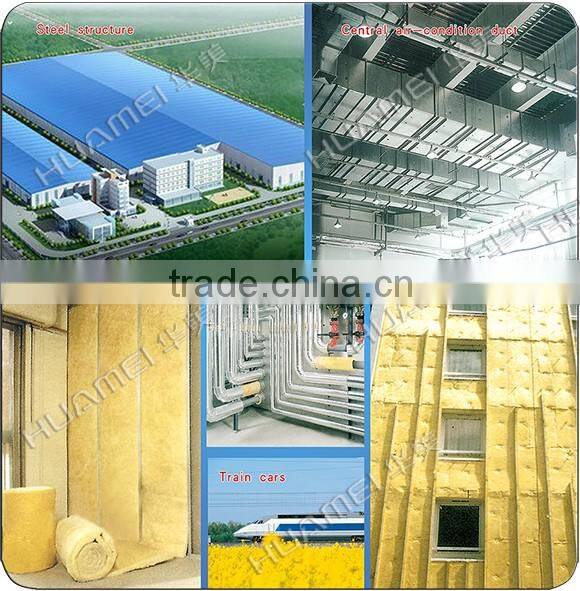

- glass wool was used for building materials , and steel structure insulation
- soundproof and fireproof used for wall and roof of house
- Heat preservation for steel structure building
- Heat Insulation for wall and roof of house to save energy
- For indoor partition wall , Train compartment .
Huamei Glass Wool Products is the Professional manufacturer in China . we also can make special production according to clients' specification with cheap glass wool price.
3.The Excellent propety of the glass wool board

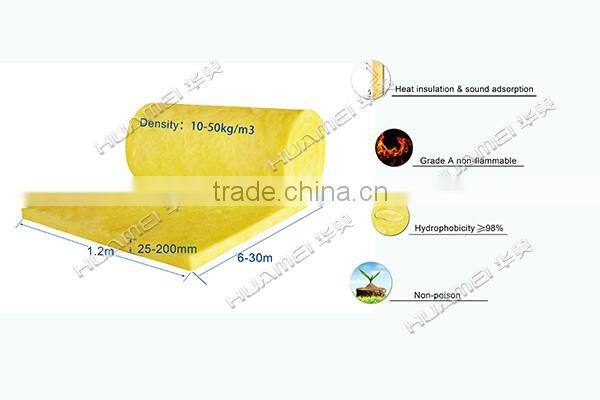

glass wool roll/GLASSWOOL price
• Good Fire-proof performance
• Excellent Damp-proof property
• Excellent rebound property , When reaches the destination will rebound almoust to the original level in 24 hours after been unpacked .
• Low moisture absorption; stable physical properties.
• Sound absorption and noise reduction; it can effectively prevent sound from spreading.
• Non-poison , Easy for construction; cutting at will.
• Low moisture absorption; stable physical properties.
4. Technical Parameters
Vinyl faced fiberglass sound insulation/fireproof insulation board
Item | Unit | Index | Standard |
Density | Kg/m3 | 10-80 | GB/T 5480.3 |
Average fiber dia | μm | 5-8 | GB/T 5480.4 |
Water content | % | ≤1 | GB/T 16400-2003 |
Grade of combustibility |
| Non-combustible Grade A | GB 8624-1997 |
Reshrinking temp | ℃ | 250-400 | GB/T 11835-2007 |
Thermal conductibility | W/m.k | 0.034-0.06 | GB/T 10294 |
Hydrophobicity | % | ≥98 | GB/T 10299 |
Moisture rate | % | ≤5 | GB/T 5480.7 |
Sound absorption coefficient |
| 1.03 product reverberation method 24kg/m3 2000HZ | GBJ 47-83 |
Slag inclusion content | % | ≤0.3 | GB/T 5480.5 |
Fireproof and sound insulation glasswool board
5. The Production Lines
Glass wool roll/GLASSWOOLfireproof insulation board
6. Glass Wool Packaging and Shipping
The glass wool board quantity package is as following :
Glass Wool Board Size | Package PCS/Bag | Package Bag/40HQ |
48kg/m3-25mm*1.2m*2.3m | 10 | 102 |
48kg/m3-50mm*1.2m*2.3m | 5 | 102 |
48kg/m3-25mm*1.2m*1.2m | 18 | 102 |
48kg/m3-50mm*1.2m*1.2m | 9 | 102 |
48kg/m3-25mm*0.6m*1.2m | 18 | 209 |
48kg/m3-50mm*0.6m*1.2m | 9 | 209 |
56kg/m3-50mm*1.18m*1.2m | 9 | 106 |
Payment Terms :
1. TT 2. L/C 3. west union4.others
Delivery Time :
About 5~7 days after confirmed the order .
7. Huamei Glass Wool has been inspected by Huamei's Professional Quality Inspectors.
The laboratory
Fireproof insulation material/Glasswool insulation board
8. Huamei Glass Wool has obtain a lot of certifications .
glass wool insulation manufacturer have quality test on each process.
9. Our Services
10 . About Huamei Group
11 .Export Market Distribution
Any products you need, please contact us freely! We'll give you prompt reply !
Mobile: +86-18330252117 +86-316-5792999
Whatsapp: 008618330252117
Website:
Thank you so much !
