FL stainless steel sugar cane fine crusher machine
- shnaghai port for stainless steel sugar cane fine crusher machine
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Pulverizer | |
| Product Type | Cosmetic | Place of Origin | Jiangsu, China | |
| Brand Name | WP | Model Number | FL-150 | |
| Voltage | Customized | Power(W) | 2.2kw | |
| Dimension(L*W*H) | 500*420*1400mm | Weight | 100KG | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

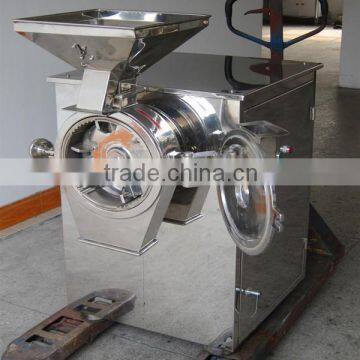

FL stainless steel sugar cane fine crusher machine
1.Main Application
The machine is widely applied for the material crushing by the industries of pharmaceutics,chemical and foodstuff,etc.
2.Characteristics
The crushing chamber is equipped with the wind wheel type high speed rotary cutters so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.It possesses the merits of smooth operating disassembly and assembling.low noise and good crushing efficiency.
3.Working Method
The machine uses the wide wheel type high-speed rotating cutters and the fixed cutters to crush,mill and shear raw material which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen.The size of granules can be achieved by changing of the screen.
4.Technical Data
Model | 150 | 250 | 350 | 500 |
Capacity(kg/h) | 20-80 | 30-200 | 50-300 | 80-150 |
Size of input granules(mm) | <10 | <10 | <12 | <15 |
Size of output granules(mm) | 12-120 | 12-120 | 12-120 | 12-120 |
Power(kw) | 2.2 | 5.5 | 11 | 22 |
Speed of principal axis(r/min) | 3000 | 2900 | 2900 | 2800 |
Weight(kg) | 120 | 280 | 450 | 720 |
Overall Size(mm) (L×W×H) | 550×420×1400 | 750×550×1400 | 850×700×1600 | 850×850×1850 |
Wind wheel type
Input
water cooling
dust absorption (as your requirment)
How to choose a right pulverizer?Please tell me
1) your feeding material ;
2) your size of input and output;
3)the capacity per hour.
