Home > Products > food&pharmaceutical grinder > WF wheat bran fine powder dust collecting pulverizer

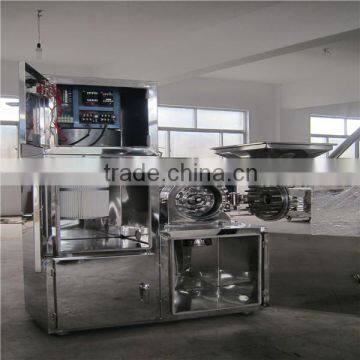

WF wheat bran fine powder dust collecting pulverizer
- Shanghai Port For wheat bran fine powder dust collecting pulverizer
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WP | |
| Model Number | WF-40B | Type | Grain Processing Equipment | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Product name:
WF wheat bran fine powder dust collecting pulverizer
2.Main Application:
The machine is mainly applied for the material grinding for the trades of pharmaceutics,chemical and foodstuff,etc
3. Working Method:
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact,grind and crush the target materials.The crushed material can enter the collection box by the centrifugal force,The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box.The whole machine,designed according to GMP standard,is made of stainless steel,thus to avoid dust flying,improve the utilization of raw material and decrease the production cost.Currently,the machine has been on the world advanced level.
4. Technical Data:
Model | 18B | 20B | 30B | 40B | 60B |
Capacity(kg/h) | 5-30 | 20-150 | 30-300 | 40-800 | 60-1200 |
Speed of principal axis(r/min) | 5200 | 4500 | 3800 | 3400 | 2600 |
Size of input granules(mm) | <5 | <6 | <10 | <12 | <15 |
Fineness of products(Mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Grinding power(kw) | 2.2 | 4 | 5.5 | 11 | 22 |
Dust absorption power (kw) | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
How to choose a right pulverizer ?
1)Pls tell me pulverizer material.
2)How many capacity per hour?
3)How many meshes will you choose ?if meshes is under 120 mesh,pls choose universal pulverizer,if meshes is above 120 meshes,it is good to choose WFJ micro pulverizer machine.
