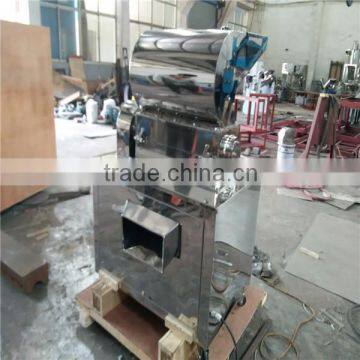

CSJ series dust grinder crusher
- Shanghai port for CSJ series dust grinder crusher
You May Like
Product Details
| Condition | New | Type | Pulverizer | |
| Place of Origin | Jiangsu, China | Brand Name | YD | |
| Model Number | CSJ-120 | Voltage | 380V | |
| Power(W) | 3kw | Dimension(L*W*H) | 650*700*1200mm | |
| Weight | 250kg | Certification | ISO 9000 CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1 Product name:CSJ series dust grinder crusher
2 Main Application:
The machine is applied for industries such sa pharmaceutics,chemical,metallurgy and foodstuff,It is used as specialized equipment for coarse crushing of material in preparatory process,and can crush hard and tough material like plastics and steel wire.Especially it is not limited by viscosity,hardness,softness and fiber shape of material and has good effect to all materials.
3 Working method:
The machine has horizontal crushing structure and the whole machine is made of stainless steel.Any raw material,being fed into the grind chamber through the upper feeder,stroked by the revolving and fixed knives,cut and grinded and then automatically runs to “GMP” standard,with the characteristics of compact structure,easy washing.and low noise.So it is the most ideal new product in current crusher market.
4 Technical specifications:
| CSJ Series Coarse Crusher | |||||
| Model | 80 | 120 | 200 | 400 | 600 |
| Capacity | 100-200 | 100-500 | 150-800 | 200-1000 | 500-1000 |
| Size of input granules | ≤50 | ≤100 | ≤100 | ≤100 | ≤200 |
| Fineness of products | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-200 |
| Speed of principal axis | 400 | 400 | 400 | 380 | 380 |
| Power(kw) | 1.5 | 3 | 5.5 | 7.5 | 15 |
| Weight(kg) | 150 | 250 | 420 | 580 | 760 |
| Overall Size(L×W×H)mm | 510×450×980 | 650×700×1200 | 720×850×1350 | 1200×1000×1450 | 1300×1100×1650 |
