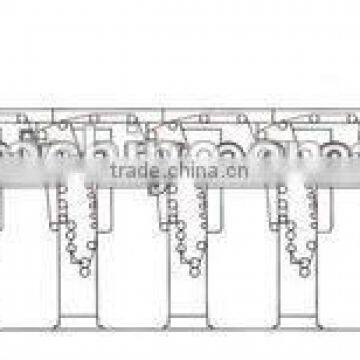

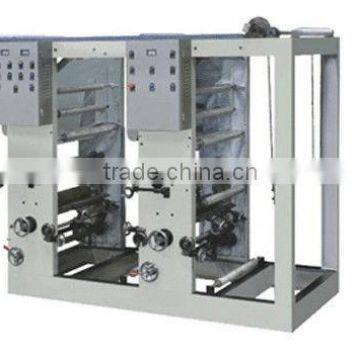

Middle Speed Plastic Film Roll Rotogravure Printing Machine

 Automatic Rotogravure Printing Machine for food,Pharmaceutical aluminum foil roll

Uses:
1. The machine is suitable for BOPP, PET, CPP, PVCD combination of film and the same nature, such as paper. Its printing speed of 100-120 m / min, the mechanical speed of 130 m / min.
2. The main transmission mechanism: The main drive Shenzhen, the Kymmene vector inverter control vector motors drive each plate. Features: save electricity.
3. axis version institutions: the plate is installed using cylinder pull mandrel mounted version, horizontal adjustment screw moving. Features: reduce time to replace, to ensure concentricity, and improve product quality.
4. Ink scraper institutions: the scraper can be adjusted at any up and down and angle, squeegee pressure single cylinder, horizontal movement adopts synchronous motor rotates the cam to move. Features: extended version of birthday noodles.
5. Embossing lifting institutions: The impression adopts dual the cylinder boost with the slider from the lock bits of cylinder leakage and cylinder shutdown protection under the swap. Features: ensure the average of the pressure to ensure that the color difference.
6. chromatic robot: computer-controlled synchronous motor through reduction drive ball screw adjustment, automatic register. Features: rotational lubrication, chromatography and high accuracy.
7. Income, discharge institutions: Using duplex close to discharge tension and resumption discharge traction tension using frequency conversion vector control line speed. Features: acceleration chromatic stable horizontal direction, materials, inks, solvents and energy savings for high-volume printing, the speed of material 120 m / min, then expected the biggest waste of 10 meters, than three motor savings of about 40 meters, inks, solvents and energy savings of about 20%, which greatly reduces the cost of the main product.
8. dry cooling structure: oven centrifuge blowing and suction, electrical heating tubes in the air outlet of the oven is heating, a thermal cycling of the air volume inside the oven, the temperature is controlled by intelligent temperature controller, looking back roller water cooled, ensure that the film cooling. Features: save electricity.

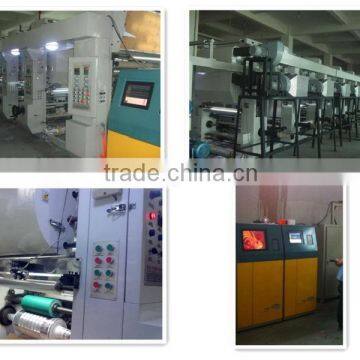

Machine sample display:
