High Speed A4 / A3 Computer Controlling Servo Driving Paper Roll Cutting Machine
- NINGBO / WENZHOU / SHANGHAI
- T/T Credit Card PayPal
You May Like
-
A4 Size Paper Ream Folding Machine by Paper or Plastic Film
-
A4 Size Ream Cutting and Wrapping Machine for Paper Sheets or Plastic Bags
-
A4 Max Size Ream Wrapping Machine for Paper Sheets or Plastic Bags
-
A4 / A3 Computer Controlling Servo Driving Paper Roll Cutting Machine
-
A4 / A3 Servo Driving Paper Roll Cutting and Slitting Machine
-
A4 / A3 One Paper Roll Cutting and Slitting Machine
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | DONGCHEN | Model Number | DC1000 | |
| Voltage | 380/220v 3 phase | Power(W) | 15kw | |
| Dimension(L*W*H) | 2300*1800*1400mm | Weight | 1000kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
A4 paper roll cutting and slitting machine
Usage:
This machine is suitable for PVC, non woven roll, gold-silver paperboard, plain rainbow paper, the positioning laser transfer paper, white paper, plastic sheet and roll materials. Applied PLC system to control electrical system. Man-machine controlling system, digital display; fixed-length control stepper motor system control, automatic identification standard photoelectric switch imported to ensure the accuracy of the truncation. Advanced machine control mode, controlling the speed of the main motor, imported stepper motor, feeding motor through the computer to achieve synchronous operation.
Main parameters:
Model | DC1100 |
Max cutting length | 1000mm |
Max cutting width | 1000mm |
Max diameter | 1000mm |
Cutting speed | 150times/min |
Cutting precision | ±0.2mm |
Power | 10kw |
Machine weight | 1000kg |
Machine dimension(L*W*H) | 3000*1600*1500mm |
l Adopts pneumatic automatic materials loading system with much easy operation and convenience
l Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time
l It adopts servo motor for controlling constant-length cutting.
l It adopts PLC control, contact screen operation
l It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.
l This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste
l It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation
l It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system

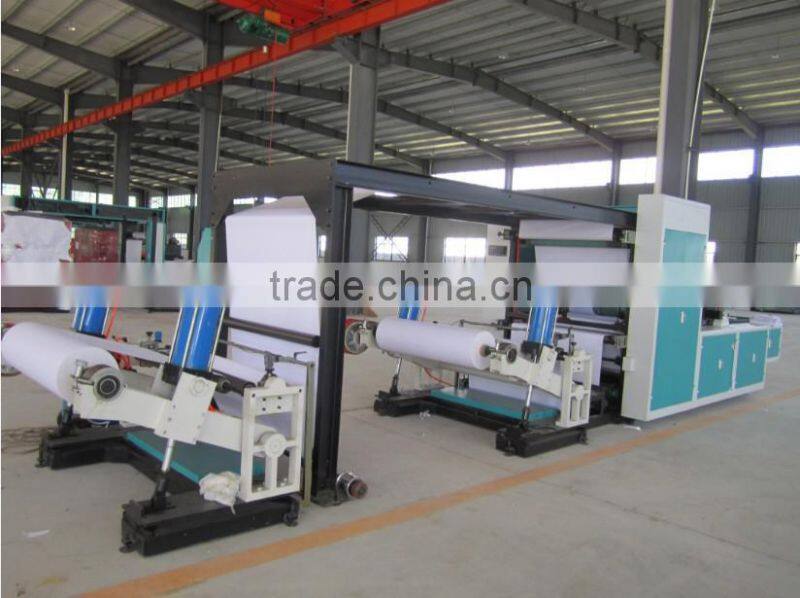

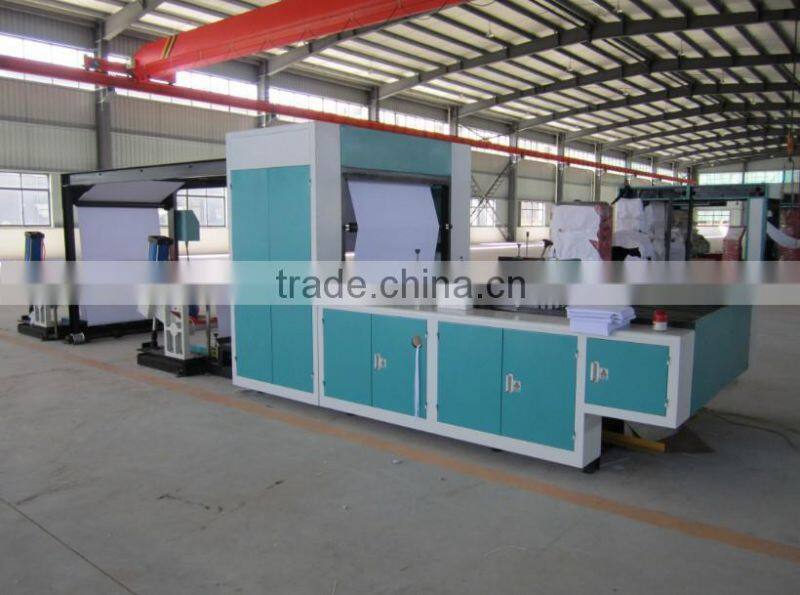

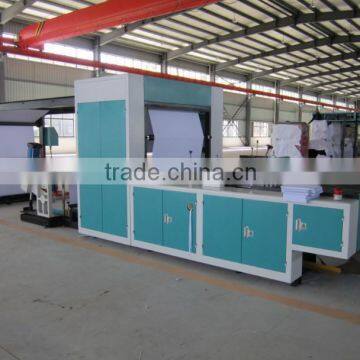

Machine pictures dispaly:
