Iron Piano Hinges With Factory Price
- Guangzhou/Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | NTS | |
| Model Number | cy141045 |
Product Description
Specifications
long hinge,piano hinge,stainless steel materialwith iron material,
GP/CP/NP finish
or white,baige,black color
Find us on line or by mail right now!
Get the lowest and newest prices!!
Chengyi Hardware, as a professional manufacturer and supplier, is specialized in developing, producing and marketing furniture fittings all over the world.
Following are some of our factory standard sizes!

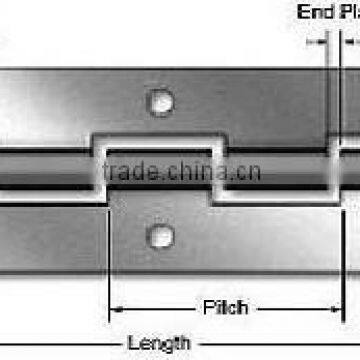

| Item No. | length*width*thcikness | Pin Diameter | Joint Length | Item No. | length*width*thcikness | Pin Diameter | Joint Length | |
| CY01 | 1800*25*0.5MM | 2.50 | 12.70 | CY24 | 1800*76*1.5MM | 4.00 | 25.4 | |
| CY02 | 1800*30*0.5MM | 2.50 | 12.70 | CY25 | 1800*38*1.5MM | 5.00 | 25.4 | |
| CY05 | 1800*25*0.8MM | 2.50 | 12.70 | CY26 | 1800*50*1.5MM | 5.00 | 25.4 | |
| CY06 | 1800*30*0.8MM | 2.50 | 12.70 | CY27 | 1800*63*1.5MM | 5.00 | 25.4 | |
| CY07 | 1800*38*0.8MM | 2.50 | 12.70 | CY28 | 1800*76*1.5MM | 5.00 | 25.4 | |
| CY08 | 1800*50*0.8MM | 2.50 | 12.70 | CY29 | 2000*50*2.0MM | 6.00 | 25.40 | |
| CY09 | 1800*25*1.0MM | 2.50 | 12.70 | CY30 | 2000*60*2.0MM | 6.00 | 25.40 | |
| CY10 | 1800*30*1.0MM | 2.50 | 12.70 | CY31 | 2000*76*2.0MM | 6.00 | 25.40 | |
| CY11 | 1800*38*1.0MM | 2.50 | 12.70 | CY32 | 2000*100*2.0MM | 6.00 | 25.40 | |
| CY12 | 1800*50*1.0MM | 2.50 | 12.70 | CY33 | 2000*50*2.0MM | 9.00 | 25.40 | |
| CY13 | 1800*30*1.2MM | 3.00 | 25.4 | CY34 | 2000*60*2.0MM | 9.00 | 25.40 | |
| CY14 | 1800*38*1.2MM | 3.00 | 25.4 | CY35 | 2000*76*2.0MM | 9.00 | 25.40 | |
| CY15 | 1800*50*1.2MM | 3.00 | 25.4 | CY36 | 2000*100*2.0MM | 9.00 | 25.40 | |
| CY16 | 1800*63*1.2MM | 3.00 | 25.4 | CY37 | 2438*60*3.0MM | 6.00 | 38.00 | |
| CY17 | 1800*38*1.5MM | 3.00 | 25.4 | CY38 | 2438*76*3.0MM | 6.00 | 38.00 | |
| CY18 | 1800*50*1.5MM | 3.00 | 25.4 | CY39 | 2438*100*3.0MM | 6.00 | 38.00 | |
| CY19 | 1800*63*1.5MM | 3.00 | 25.4 | CY40 | 2438*150*3.0MM | 6.00 | 38.00 | |
| CY20 | 1800*76*1.5MM | 3.00 | 25.4 | CY41 | 2438*200*3.0MM | 6.00 | 38.00 | |
| CY21 | 1800*38*1.5MM | 4.00 | 25.4 | CY42 | 2438*60*3.0MM | 9.00 | 38.00 | |
| CY22 | 1800*50*1.5MM | 4.00 | 25.4 | CY43 | 2438*76*3.0MM | 9.00 | 38.00 | |
| CY23 | 1800*63*1.5MM | 4.00 | 25.4 | CY44 | 2438*100*3.0MM | 9.00 | 38.00 |
More details:
Made any special sizes as your special needed!!
| Material | steel,stainless steel 201/304/316,iron,brass,aluminium … | ||||
| Finish | material nature color,brushed,polished,mirror,colored zinc/copper/blue zinc/nickel/gold/ brass/chrome/zinc plated, white /black/gold/baige/grey color spray painting | ||||
| Overall length | from 20mm-6000mm (0.7" ,to 236") | ||||
| Overall width | from 15mm-150mm (0.5",1"',1.2",1.5",2",2.5",3",4",6,8") | ||||
| Thickness | from 0.5mm-3.0mm (0.02",0.03",0.04",0.05",0.06",0.8",0.12") | ||||
| Packing specification | For the short hinges:20 pcs /white plastic bag,10 bags /carton | ||||
| For the long hinges:20 piece /white plastic bag,3 plastic bag/knit bag ,special packing is acceptable. | |||||
| Terms of Transaction: | Full advance payment before shipment. | ||||
| Immediate delivery upone receipt of payment, please always check stock status or lead time prior ordering. | |||||
| Over charged sample value can be deducted from bulk purchase, | |||||
| By T/T | |||||
1, adop good raw material as coustemers' required.
2, hold long using life,3,hot hinge
3, quality:SGS test, passed 75 pounds load, passed over 50,000 pen-close,passed salt and mist for over 48 hours
4, work: furniture hinge fiting(steel),
5, finish: brass plated,nickel plated,antirust oil,rustproff more efficiently.
