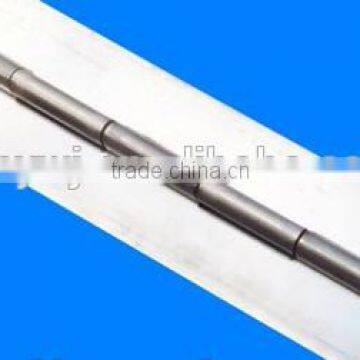

9mm pin large duty piano hinge with 76mm open width
- 10000 Piece / Pieces per Month
- guangzhou
- Credit Card
You May Like
-
large duty piano hinge with 60mm open width 3mm thickness
-
heavy duty aluminium long piano hinge with 200mm width
-
heavy duty aluminium long piano hinge with 150mm width
-
heavy duty aluminium long piano hinge with 100mm width
-
alumininum heavy duty piano hinge with 3mm thickness
-
alumininum large piano hinge with 3mm thickness
Product Details
| Place of Origin | Guangdong, China | Brand Name | NTS | |
| Model Number | CY43 |
Product Description
Specifications
heavy duty stainless steel piano hinges,length: 2438mm
thickness:3m
open width:60mm,76mm,100mm,150mm,200mm
9mm pin diameter
Find us on line or by mail right now!
Get the lowest and newest prices!!
Chengyi Hardware, as a professional manufacturer and supplier, is specialized in developing, producing and marketing furniture fittings all over the world.
We are specialized in manufacturing piano hinges, heavy duty train hinges, long hinges, cabinet/box furniture hinges, shelf brackets and upright post, pipes and tubes... vary kinds of hardware fittings in China.
And we have been in this line more than 10 years. We can supply above mentioned items or design new for your special requirements.
Item No. | Length*Width*Thickness | Pin diameter | Joint Length |
CY43 | 2438*76*3.0MM | 9MM | 25.4MM |
Material:stainless steel 201
Finish:polished/brushed
Holes: with or without
Following are some of our factory standard sizes!
The length can be changed shorter or longer!
Item No. | length*width*thcikness | Pin Diameter | Joint Length |
| Item No. | length*width*thcikness | Pin Diameter | Joint Length |
CY01 | 1800*25*0.5MM | 2.50 | 12.70 |
| CY24 | 1800*76*1.5MM | 4.00 | 25.4 |
CY02 | 1800*30*0.5MM | 2.50 | 12.70 |
| CY25 | 1800*38*1.5MM | 5.00 | 25.4 |
CY05 | 1800*25*0.8MM | 2.50 | 12.70 |
| CY26 | 1800*50*1.5MM | 5.00 | 25.4 |
CY06 | 1800*30*0.8MM | 2.50 | 12.70 |
| CY27 | 1800*63*1.5MM | 5.00 | 25.4 |
CY07 | 1800*38*0.8MM | 2.50 | 12.70 |
| CY28 | 1800*76*1.5MM | 5.00 | 25.4 |
CY08 | 1800*50*0.8MM | 2.50 | 12.70 |
| CY29 | 2000*50*2.0MM | 6.00 | 25.40 |
CY09 | 1800*25*1.0MM | 2.50 | 12.70 |
| CY30 | 2000*60*2.0MM | 6.00 | 25.40 |
CY10 | 1800*30*1.0MM | 2.50 | 12.70 |
| CY31 | 2000*76*2.0MM | 6.00 | 25.40 |
CY11 | 1800*38*1.0MM | 2.50 | 12.70 |
| CY32 | 2000*100*2.0MM | 6.00 | 25.40 |
CY12 | 1800*50*1.0MM | 2.50 | 12.70 |
| CY33 | 2000*50*2.0MM | 9.00 | 25.40 |
CY13 | 1800*30*1.2MM | 3.00 | 25.4 |
| CY34 | 2000*60*2.0MM | 9.00 | 25.40 |
CY14 | 1800*38*1.2MM | 3.00 | 25.4 |
| CY35 | 2000*76*2.0MM | 9.00 | 25.40 |
CY15 | 1800*50*1.2MM | 3.00 | 25.4 |
| CY36 | 2000*100*2.0MM | 9.00 | 25.40 |
CY16 | 1800*63*1.2MM | 3.00 | 25.4 |
| CY37 | 2438*60*3.0MM | 6.00 | 38.00 |
CY17 | 1800*38*1.5MM | 3.00 | 25.4 |
| CY38 | 2438*76*3.0MM | 6.00 | 38.00 |
CY18 | 1800*50*1.5MM | 3.00 | 25.4 |
| CY39 | 2438*100*3.0MM | 6.00 | 38.00 |
CY19 | 1800*63*1.5MM | 3.00 | 25.4 |
| CY40 | 2438*150*3.0MM | 6.00 | 38.00 |
CY20 | 1800*76*1.5MM | 3.00 | 25.4 |
| CY41 | 2438*200*3.0MM | 6.00 | 38.00 |
CY21 | 1800*38*1.5MM | 4.00 | 25.4 |
| CY42 | 2438*60*3.0MM | 9.00 | 38.00 |
CY22 | 1800*50*1.5MM | 4.00 | 25.4 |
| CY43 | 2438*76*3.0MM | 9.00 | 38.00 |
CY23 | 1800*63*1.5MM | 4.00 | 25.4 |
| CY44 | 2438*100*3.0MM | 9.00 | 38.00 |
We supply not only standard but also the special shorter or longer!
Please check more details here:
Material | steel,stainless steel 201/304/316,iron,brass,aluminium … |
Finish | material nature color,brushed,polished,mirror,colored zinc/copper/blue zinc/nickel/gold/ brass/chrome/zinc plated, white /black/gold/baige/grey color spray painting |
Overall length | from 20mm-6000mm (0.7" ,to 236") |
Overall width | from 15mm-150mm (0.5",1"',1.2",1.5",2",2.5",3",4",6,8") |
Thickness | from 0.5mm-3.0mm (0.02",0.03",0.04",0.05",0.06",0.8",0.12") |
Packing specification | For the short hinges:20 pcs /white plastic bag,10 bags /carton |
For the long hinges:20 piece /white plastic bag,3 plastic bag/knit bag ,special packing is acceptable. | |
Terms of Transaction: | Full advance payment before shipment. |
Immediate delivery upone receipt of payment, please always check stock status or lead time prior ordering. | |
Over charged sample value can be deducted from bulk purchase, | |
By T/T |
- More than 10 years experience
- Automatic production line
- Adopt good raw material as customers' required
- Quality: SGS test, passed 75 pounds load, passed over 50,000 pen-close, passed salt and mist for over 48 hours
- Finish: brass plated, nickel plated, antirust oil, rustproof more efficiently.
