Home > Products > conveyor,belt > stainless steel continuous coveyer belt or special long hinges
stainless steel continuous coveyer belt or special long hinges
USD $0.001 - $10
/ Piece
100 Pieces(Min.Order)
- 7000 Piece / Pieces per Month
- guangzhou/shenzhe
You May Like
Product Details
| Place of Origin | Guangdong, China | Material | Other | |
| Type | Other, Other, Furniture Hinge | Application | Screen | |
| Weave Style | Plain Weave | Technique | Welded Mesh | |
| Model Number | CY024 | Brand Name | CY |
Product Description
Specifications

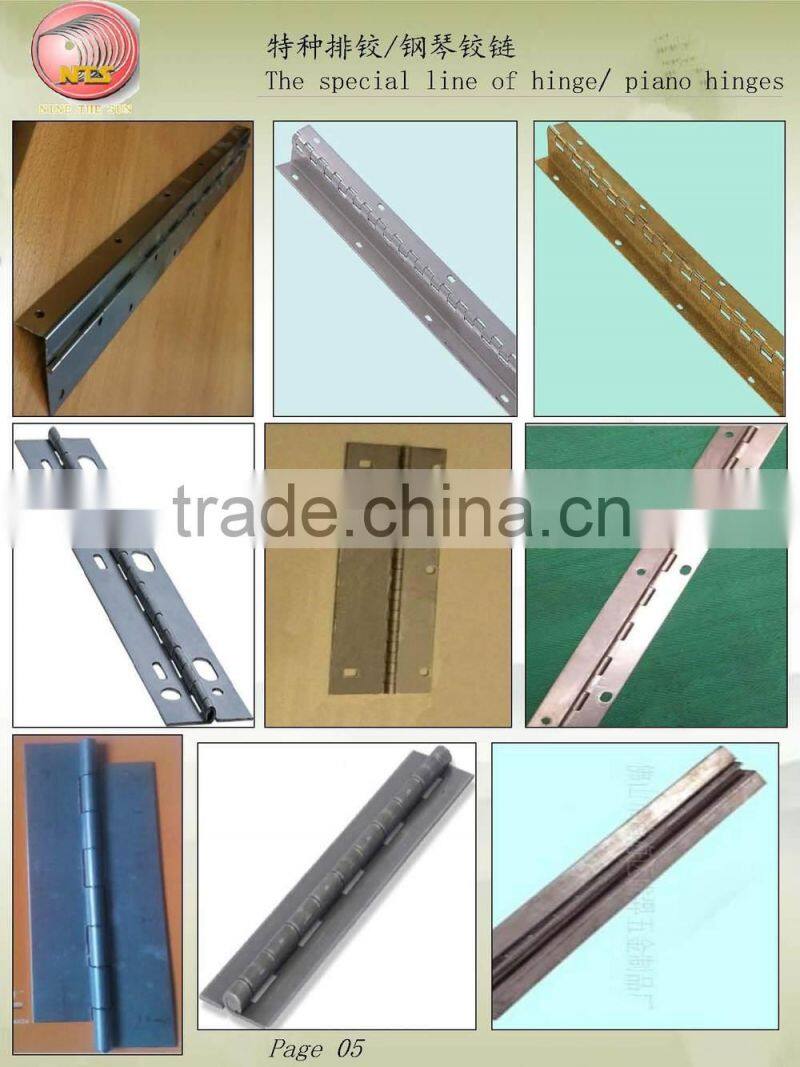

stainless steel piano hinges as furniture fitings useed in door, box, machinefactory make any special piano hinges,
low price
Find us on line or by mail right now!
Get the lowest and newest prices!!
Chengyi Hardware, as a professional manufacturer and supplier, is specialized in developing, producing and marketing furniture fittings all over the world.
The following are some of factory standard sizes for reference only.
Accept the customer other requirements also.
Made any special sizes as your special needed!!
| Item No. | length*width*thcikness | Pin Diameter | Joint Length | Item No. | length*width*thcikness | Pin Diameter | Joint Length | |
| CY01 | 1800*25*0.5MM | 2.50 | 12.70 | CY24 | 1800*76*1.5MM | 4.00 | 25.4 | |
| CY02 | 1800*30*0.5MM | 2.50 | 12.70 | CY25 | 1800*38*1.5MM | 5.00 | 25.4 | |
| CY05 | 1800*25*0.8MM | 2.50 | 12.70 | CY26 | 1800*50*1.5MM | 5.00 | 25.4 | |
| CY06 | 1800*30*0.8MM | 2.50 | 12.70 | CY27 | 1800*63*1.5MM | 5.00 | 25.4 | |
| CY07 | 1800*38*0.8MM | 2.50 | 12.70 | CY28 | 1800*76*1.5MM | 5.00 | 25.4 | |
| CY08 | 1800*50*0.8MM | 2.50 | 12.70 | CY29 | 2000*50*2.0MM | 6.00 | 25.40 | |
| CY09 | 1800*25*1.0MM | 2.50 | 12.70 | CY30 | 2000*60*2.0MM | 6.00 | 25.40 | |
| CY10 | 1800*30*1.0MM | 2.50 | 12.70 | CY31 | 2000*76*2.0MM | 6.00 | 25.40 | |
| CY11 | 1800*38*1.0MM | 2.50 | 12.70 | CY32 | 2000*100*2.0MM | 6.00 | 25.40 | |
| CY12 | 1800*50*1.0MM | 2.50 | 12.70 | CY33 | 2000*50*2.0MM | 9.00 | 25.40 | |
| CY13 | 1800*30*1.2MM | 3.00 | 25.4 | CY34 | 2000*60*2.0MM | 9.00 | 25.40 | |
| CY14 | 1800*38*1.2MM | 3.00 | 25.4 | CY35 | 2000*76*2.0MM | 9.00 | 25.40 | |
| CY15 | 1800*50*1.2MM | 3.00 | 25.4 | CY36 | 2000*100*2.0MM | 9.00 | 25.40 | |
| CY16 | 1800*63*1.2MM | 3.00 | 25.4 | CY37 | 2438*60*3.0MM | 6.00 | 38.00 | |
| CY17 | 1800*38*1.5MM | 3.00 | 25.4 | CY38 | 2438*76*3.0MM | 6.00 | 38.00 | |
| CY18 | 1800*50*1.5MM | 3.00 | 25.4 | CY39 | 2438*100*3.0MM | 6.00 | 38.00 | |
| CY19 | 1800*63*1.5MM | 3.00 | 25.4 | CY40 | 2438*150*3.0MM | 6.00 | 38.00 | |
| CY20 | 1800*76*1.5MM | 3.00 | 25.4 | CY41 | 2438*200*3.0MM | 6.00 | 38.00 | |
| CY21 | 1800*38*1.5MM | 4.00 | 25.4 | CY42 | 2438*60*3.0MM | 9.00 | 38.00 | |
| CY22 | 1800*50*1.5MM | 4.00 | 25.4 | CY43 | 2438*76*3.0MM | 9.00 | 38.00 | |
| CY23 | 1800*63*1.5MM | 4.00 | 25.4 | CY44 | 2438*100*3.0MM | 9.00 | 38.00 |
Material: 201 SS, 304 SS, 316 SS, Iron or other material.
| Material | steel,stainless steel 201/304/316,iron,brass,aluminium … | ||||
| Finish | material nature color,brushed,polished,mirror,colored zinc/copper/blue zinc/nickel/gold/ brass/chrome/zinc plated, white /black/gold/baige/grey color spray painting | ||||
| Overall length | from 20mm-6000mm (0.7" ,to 236") | ||||
| Overall width | from 15mm-150mm (0.5",1"',1.2",1.5",2",2.5",3",4",6,8") | ||||
| Thickness | from 0.5mm-3.0mm (0.02",0.03",0.04",0.05",0.06",0.8",0.12") | ||||
| Packing specification | For the short hinges:20 pcs /white plastic bag,10 bags /carton | ||||
| For the long hinges:20 piece /white plastic bag,3 plastic bag/knit bag ,special packing is acceptable. | |||||
| Terms of Transaction: | Full advance payment before shipment. | ||||
| Immediate delivery upone receipt of payment, please always check stock status or lead time prior ordering. | |||||
| Over charged sample value can be deducted from bulk purchase, | |||||
| By T/T | |||||
More Products Pictures:
1, adop good raw material as coustemers' required.
2, hold long using life,3,hot hinge
3, quality:SGS test, passed 75 pounds load, passed over 50,000 pen-close,passed salt and mist for over 48 hours
4, work: furniture hinge fiting(steel),
5, finish: brass plated,nickel plated,antirust oil,rustproff more efficiently.
Contact Us
- Foshan Nanhai Chengyi Hardware Product Factory
- Contact namemay huang Chat Now
- Phone0086-757-81800767
- AddressChenbian Village,Jinsha,Danzao town ,Nanhai District,Foshan,Guangdong,China., Foshan, Guangdong
