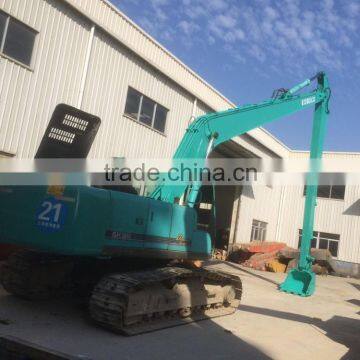

18Meter SK230 Kobelco excavator long reach boom arm

FOB Price

US$ 8,000 - 20,000 / Piece

1 Piece(Min. Order)

Port Xiamen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	FDM
Model Number	18Meter SK230 Kobelco

Product Description

Whatever Products you choose, you always choose for quality and you will see that Doozer bucket will
guarantees you quality.

You will keep being satisfied with Doozer bucket and proud to have it! It is important for us!

Name	Excavator long reach boom arm and bucket assembly
Machine Model	All the famous brand of Excavator
Type	Stardard/Heavy duty/Rock
Material	Q345B/Q460/NM360/NM400/WH60/Hardox400,500
Capacity	0.01-12m3/ 18-34 meter
Weight	200-20000kgs
Colour	Customized
Certification	BV certificate
Environment	Rock,Clay,Sand,Soil,Gravel

1. Suitable for all makes and model of excavator and job applications, Sales Areas: South America,
North America, Asia, Middle East, Europe, Africa, etc.

2.Advantage/Feature of Doozer products We can make or design buckets as your request. According
to different operating conditions and customer needs, various kinds of buckets are designed reasonably
from shapes, materials, and stress features, etc.

3. Apart from the Standard bucket, Rocky bucket and Heavy duty bucket, Doozer also offering special
purpose bucket, such as Tilt bucket, Ripper, Grab, Quick coupler, V Drain bucket, Mud bucket, Dustpan
bucket, Clamshell bucket, Skeleton bucket, Ripper bucket, etc.

Brand	Model Number
KOMASTU Excavator	PC60;PC100;PC200:PC220;PC240;PC300;PC350;PC400
HITACHI Excavator	EX60;EX70;EX100;EX200;EX220;EX240;EX300;EX350;EX400
SUMITOMO Excavator	SH60;SH75;SH100;SH120;SH200;SH250;SH300;SH430
KOBELCO Excavator	SK60;SK100;SK100;SK200;SK300;SK330;SK400
DOOSAN Excavator	DH55;DH220;DH300
VOLVO Excavator	EC210;EC300;EC360
HYUNDAI Excavator	R60;R130;R200;R210;R290
KATO Excavator	HD400;HD700;HD770;HD820
SAMSUNG Excavator	SE130;SE210;SE280;SE350

Long Reach Booms for excavators:
Models	Total Length of Boom &Arm(mm)	Weight(KGS)	Bucket Capacity(m3)	Max.Digging Height(mm)	Max.Digging Depth(mm)	Overall Height(mm)
PC120-8	13000	3000	0.3	11300	9000	2900
PC200-8	15380	4000	0.4	12510	11340	2980
PC220-8	15380	4200	0.4	12610	11370	3040
PC300-8	18000	5200	0.4	13720	13000	3210
PC350-8	20000	6000	0.5	14920	15000	3210
PC400-8	22000	6500	0.6	16100	16500	3400
Long Reach Booms for excavators:
Models	Total Length of Boom &Arm(mm)	Weight(KGS)	Bucket Capacity(m3)	Max.Digging Height(mm)	Max.Digging Depth(mm)	Overall Height(mm)
CAT120-5	13000	3000	0.3	11300	9000	2900
CAT200LC-5	15380	4000	0.4	12510	11340	2980
CAT220LC-5	15380	4200	0.4	12610	11370	3040
CAT300LC-5	18000	5200	0.4	13720	13000	3210
CAT350LC-5	20000	6000	0.5	14920	15000	3210
CAT400LC-5	22000	6500	0.6	16100	16500	3400
Long Reach Booms for Kobelco excavators:
Models	Total Length of Boom &Arm(mm)	Weight(KGS)	Bucket Capacity(m3)	Max.Digging Height(mm)	Max.Digging Depth(mm)	Overall Height(mm)
SK120-8	13000	3000	0.3	11300	9000	2900
SK200-8	15380	4000	0.4	12510	11340	2980
SK220-8	15380	4200	0.4	12610	11370	3040
SK300-8	18000	5200	0.4	13720	13000	3210
SK350-8	20000	6000	0.5	14920	15000	3210
SK400-8	22000	6500	0.6	16100	16500	3400
Long Reach Booms for Hyundai excavators:
Models	Total Length of Boom &Arm(mm)	Weight(KGS)	Bucket Capacity(m3)	Max.Digging Height(mm)	Max.Digging Depth(mm)	Overall Height(mm)
R135	13000	3000	0.3	11300	9000	2900
R215	15380	4000	0.4	12510	11340	2980
R220	15380	4200	0.4	12610	11370	3040
R225	18000	5200	0.4	13720	13000	3210
R275	20000	6000	0.5	14920	15000	3210
R300	22000	6500	0.6	16100	16500	3400
R375	24000	7000	0.6	17300	18000	3400
Long Reach Booms for Sumitomo excavators:
Models	Total Length of Boom &Arm(mm)	Weight(KGS)	Bucket Capacity(m3)	Max.Digging Height(mm)	Max.Digging Depth(mm)	Overall Height(mm)
SH120-5	13000	3000	0.3	11300	9000	2900
SH200LC-5	15380	4000	0.4	12510	11340	2980
SH220LC-5	15380	4200	0.4	12610	11370	3040
SH300LC-5	18000	5200	0.4	13720	13000	3210
SH350LC-5	20000	6000	0.5	14920	15000	3210
SH400LC-5	22000	6500	0.6	16100	16500	3400
SH450LC-5	24000	7000	0.6	17300	18000	3400

Welcome to Inquiry and visiting.

If you are interested in our products, pls contact with me freely.
