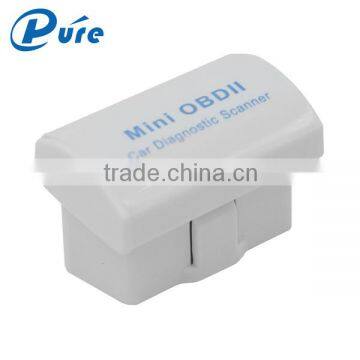

Universal Super Mini ELM327 Bluetooth OBD OBD2 Mini ELM327 Bluetooth for Android ELM327 Car Code Scanner

Product parameters:
Communication: Bluetooth 2.0
Software platform: Support Android / Windows
Operating voltage: 9V ~ 16V
Operating Current: 25mA
Operating temperature: -40 ℃ ~ 85 ℃
Humidity: less than 60%
Size: 40mm * 24mm * 25mm

Product Features:
1. The world's smallest, highest chip integration. By CE, FCC, Rosh certification.
2. The software can perform the following actions:
Read error diagnostic codes - General and manufacturers of special use, and display their meaning (a database of over 3000 generic code definitions)
Clear the error code and shut off the MIL ( "Check Engine" light)
Display current sensor data, comprising:
Engine revolutions per minute (RPM)
Load the calculated value
Coolant temperature
Fuel System Status
Vehicle speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Injection advance time
Intake air temperature
Airflow velocity
Absolute throttle position
Oxygen-sensing voltage and short-term status of the associated fuel
Fuel System Status
Fuel pressure
There are many other monitoring fuel consumption data ......
Future software features:
Chart display and data logging
Freeze frame data
Continuous and discontinuous oxygen probe results

Protocol Support:
Mini OBDII Supported protocols:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

software platform:
1. Compatible Software
Window version: ScanMaster-ELM, , PCMSCAN etc;
Android version: Torque, DashCommand, OBD Car Doctor, etc;
Symbian version: OBDScope.
2. Compatible Platforms

Software Support Platform: Windows XP, Windows 7/8, Android, Symbian and other systems.

Packing Size: 70mm X 50mm X 28mm

packing list:
1. Mini OBDII host
2. User's Manual
3. EPE padding
4. box
