single stage Inline high shear mixers for suspension concentraion

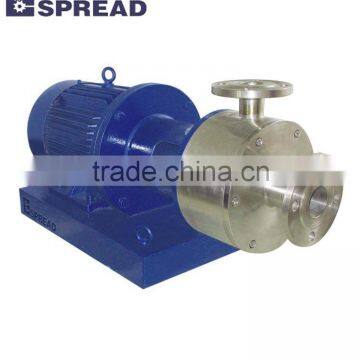

SC single stage Inline high shear mixer

ESSW1 SC high shear Inline mixer doesn't simply mix. It emulsifies, homogenizes, solubilises, suspends, disperses and disintegrates solids. Each mixer, with its precision engineered rotor/stator work head, far outperforms conventional mixers, improving quality, product consistency and process efficiency.

Features

Suitable for industrial continuous production

Wide viscosity range than in batch high shear mixer

No batch difference

High efficiency, low noise

 Main Technical Data

Capacity
Self-pumping throughputs of 20 to 20,000 litres/hr No Bypassing
Product cannot bypass the precision rotor/stator workhead.

Interchangeable Workheads
Single stage rotor/stator configurations workheads as standard. For the rotor/stators configurations, 6 layers structures makes better shearing result.

Materials of Construction
Product contact in SS304 or 316L stainless steel. Motor Specification
Standard and explosion proof motors (Siemens ,ABB etc) are available as standard.

Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).

Sealing
Single or double mechanical shaft seals available as standard.

Cooling
Cooling jacket structure as standard

Technical Data:
